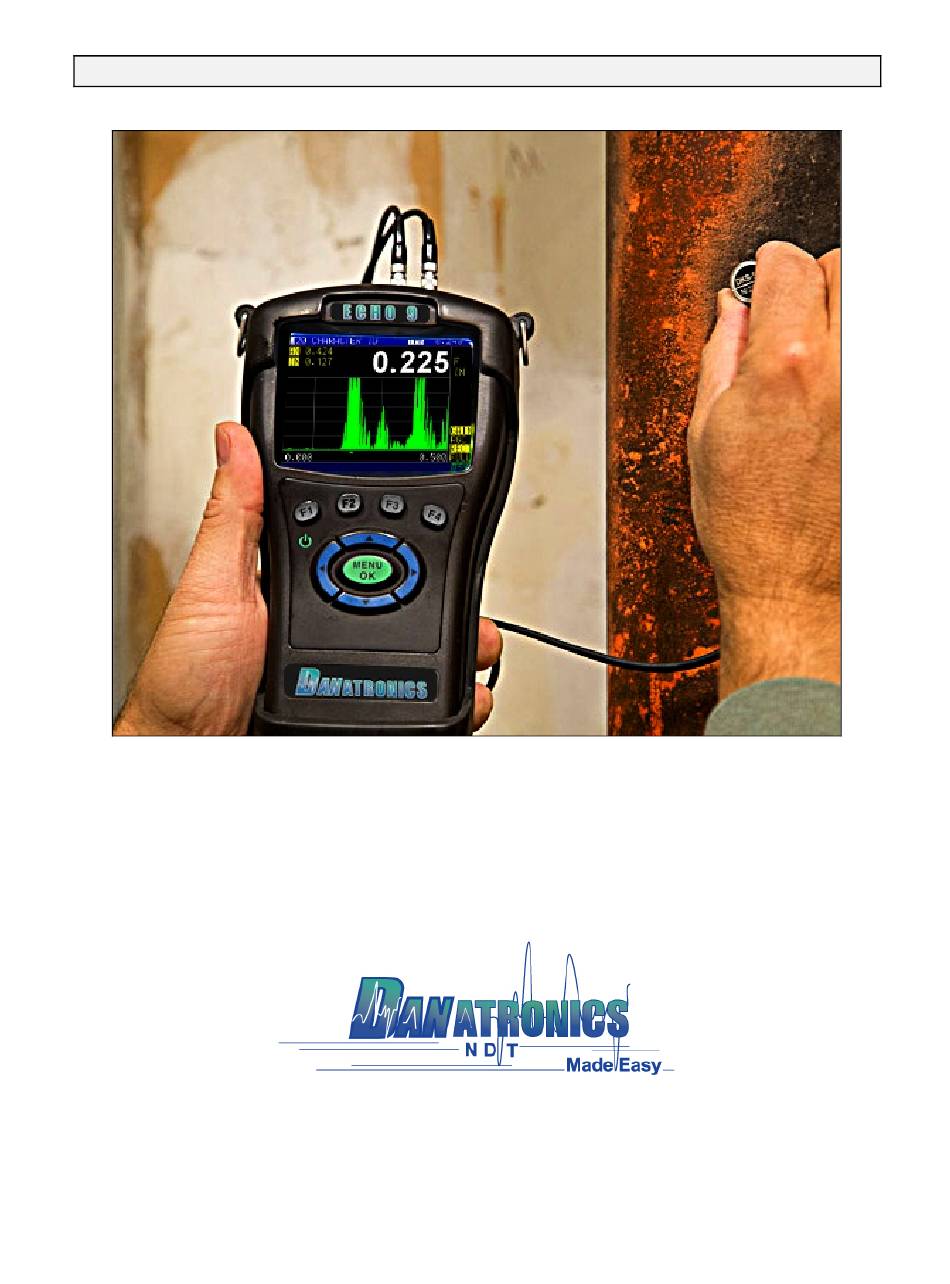

Page 1 Quick Start Guide ECHO Series Thickness Gages...
Page 2 Batteries The EHCO Series Thickness Gages comes standard with a re-chargeable Li Ion battery located on the back of the gage under the door with the screw. Fully charge your unit before using by simply plugging in the USB cable to the top of the gage and to the AC wall unit. If you purchased the non-rechargeable alkaline AA pack you will need to replace them by un-screwing the battery door on the back of the gage.
Page 3 While in the Transducer selection screen, go to the transducer option that matches the part number on your actual transducer by pressing up or down arrow keys. If you are using a non- listed vendor transducer at 5.0 MHz, select the ‘User 5 MHz’ option. Lastly, press the MENU/OK key to select the highlighted transducer.
Page 4 To take thickness readings, simply apply couplant to the material’s surface followed by the transducer to measure the thickness. Depending on the settings, the display may show other parameters. For more detailed information on Measure mode, please refer to the ECHO Series User’s Guide on the CD provided with the gage.
Page 5 Once you select a parameter, use the arrow keys to navigate the options. When finished, press the F1 – Back key. For more detailed information on parameter settings, please refer to the ECHO Series User’s Guide on the CD provided with your gage. Display mode parameters:...
