Sumner GH3/4T Quick Start Manual

GANTRIES
Innovative Mast Height Adjustment
1
2
Available in 8', 10', 12'
3
& 15' or 3 m, 4 m & 5 m
beam lengths
2 Models: 4,400 lbs &
3
1,650 lbs
Lightweight & Extremely
3
Portable
Quick Two-Person
3
Assembly
8" Locking Casters or 10"
3
Flat Free Double Locking
Casters (GH3/4T only)
Adjust mast
lifting handle
with plunger pin
to comfortable
lifting position
Lift mast and
remove quick-
action mast
locking pin
– no bolts!
Sumner Manufacturing Co., Inc.
Minimum Pieces – 2
3
A-Frames with casters,
Trolley, Cross Beam and
attaching hardware
Aluminum Frames &
3
Beam
Anodized frame
3
Quick Height Adjustment
3
Adjustable Span
3
Pinch Point Free
3

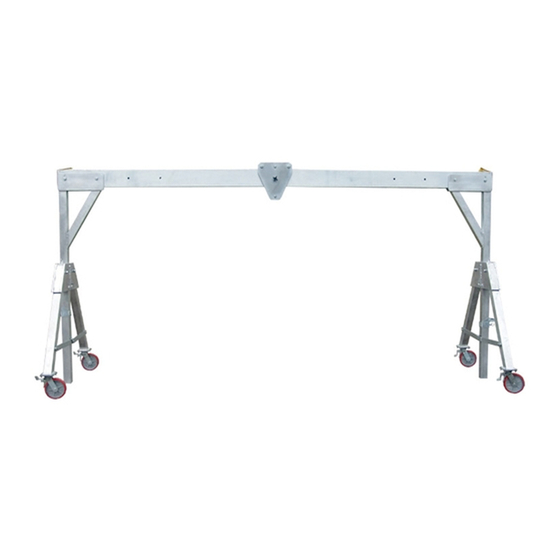

GH3/4T with 8' beam and 10"
double-wheeled casters (flat free)
3
Chain hoist not included
When lifting
handle is next
to frame, mast
holes are aligned
for locking pin
Adjust height
in 6" (15 cm)
increments
