APRIL 2005

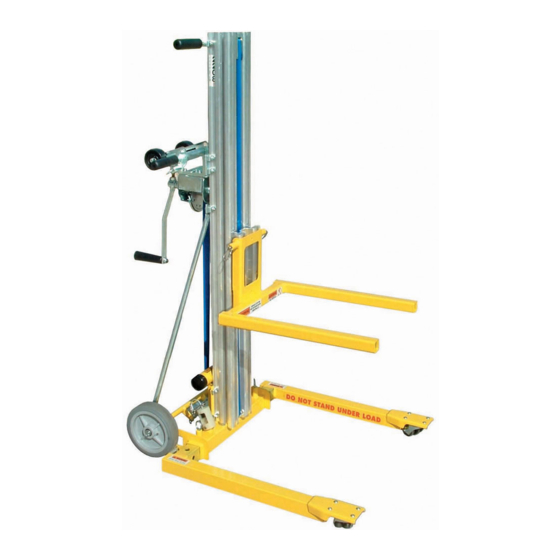

LIL' HOISTER STRAP REPLACEMENT
UK
US
Canada
Nova House
7514 Alabonson Road
51A Caldari Road
Audley Avenue, Enterprise Park
Houston, TX 77088
Concord, ON L4K 4G3
Newport, Shropshire TF10 7DW
phone: 281-999-6900
phone: 905-760-7539
phone: 011-44-1952-815730
fax: 281-999-6966
fax: 905-775-4275
fax: 011-44-1952-815725
Advertisement
Table of Contents
Related Manuals for Sumner 2200 Series
Summary of Contents for Sumner 2200 Series
- Page 1 APRIL 2005 LIL’ HOISTER STRAP REPLACEMENT Canada Nova House 7514 Alabonson Road 51A Caldari Road Audley Avenue, Enterprise Park Houston, TX 77088 Concord, ON L4K 4G3 Newport, Shropshire TF10 7DW phone: 281-999-6900 phone: 905-760-7539 phone: 011-44-1952-815730 fax: 281-999-6966 fax: 905-775-4275 fax: 011-44-1952-815725...
- Page 2 LIL’ HOISTER STRAP REPLACEMENT Loosen drum screw remove gear cover (this will allow access to the SHCS) Detach base from rear mast assembly, (6) bolts, (4) on base assy & (2) on back brace strap Unscrew SHCS and detach strap Place mast assemblies, winch side down, on a work table Unscrew top mast upper roller assembly &...
- Page 3 Slide carriage off top mast assembly (do not remove roller Unscrew bottom mast upper roller assembly & bracket or slide pads off of the carriage) disassemble (unscrew (3) BHCS to detach roller assembly). Pull strap through remaining brackets TO INSTALL A NEW STRAP With mast winch side down, weave strap through lower mast bracket (do not tighten bracket) Loosen bottom mast lower roller assembly...
- Page 4 Assemble bottom mast upper roller bracket and strap Slide top mast until top end of the mast is inserted halfway into the slide pads (do not insert fully) Tighten bracket (3) BHCS. Always use new insert lock nuts Weave strap onto the top mast lower bracket Insert top mast into bottom mast (do not fully engage mast) Insert top mast slide pads into place and then fully insert...
- Page 5 Place carriage on top of the mast (bracket side up) Assemble top mast upper roller bracket with strap and anchor loop end of strap onto the bracket Attach upper roller bracket onto the top mast Weave strap onto the roller bracket assembly Attach mast and winch assembly onto base, (6) bolts The loop end of the strap should be in the middle of the strap...
