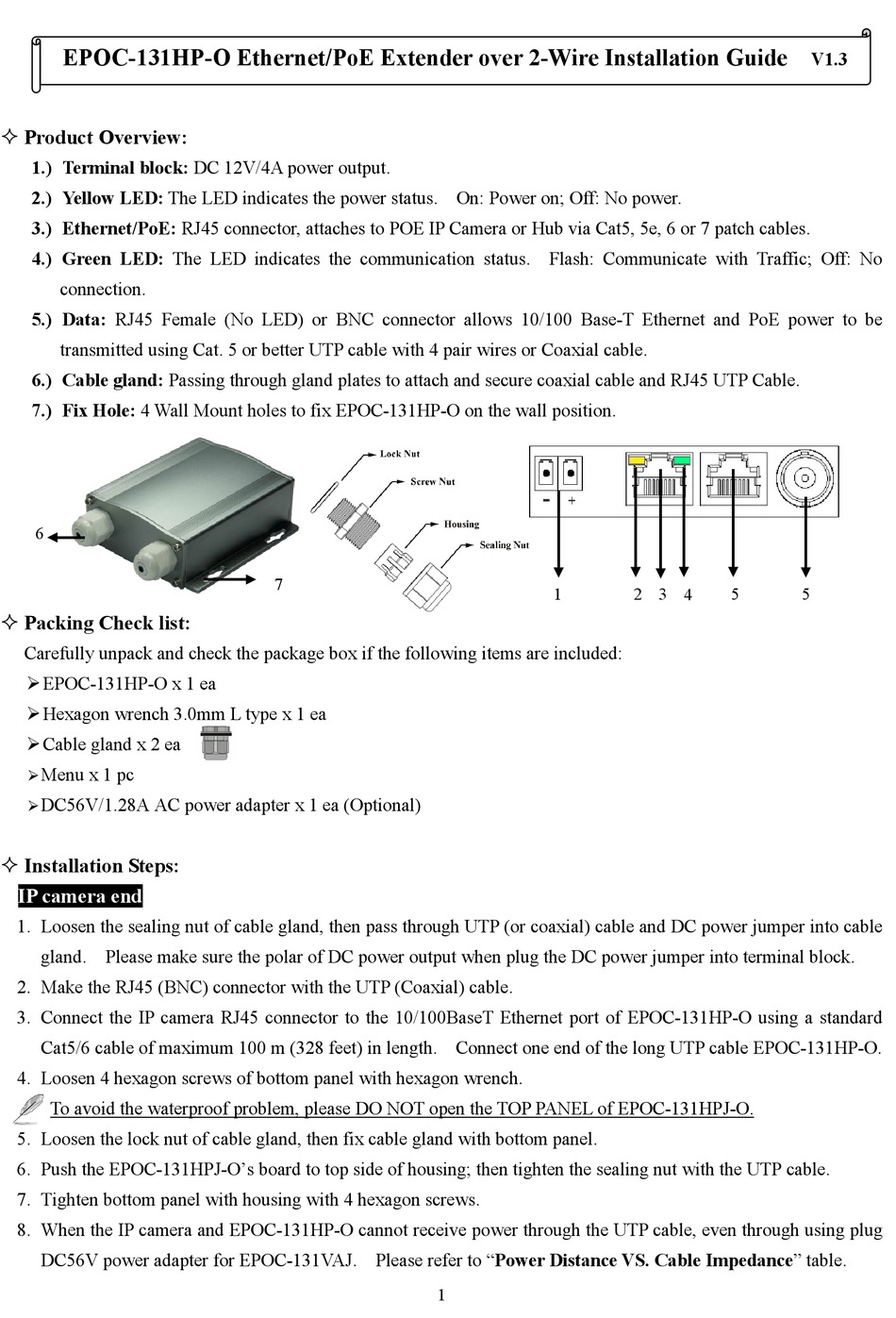

EPOC-131HP-O Ethernet/PoE Extender over 2-Wire Installation Guide
Product Overview:
1.) Terminal block: DC 12V/4A power output.
2.) Yellow LED: The LED indicates the power status. On: Power on; Off: No power.
3.) Ethernet/PoE: RJ45 connector, attaches to POE IP Camera or Hub via Cat5, 5e, 6 or 7 patch cables.
4.) Green LED: The LED indicates the communication status. Flash: Communicate with Traffic; Off: No
connection.
5.) Data: RJ45 Female (No LED) or BNC connector allows 10/100 Base-T Ethernet and PoE power to be
transmitted using Cat. 5 or better UTP cable with 4 pair wires or Coaxial cable.
6.) Cable gland: Passing through gland plates to attach and secure coaxial cable and RJ45 UTP Cable.
7.) Fix Hole: 4 Wall Mount holes to fix EPOC-131HP-O on the wall position.
6
Packing Check list:
Carefully unpack and check the package box if the following items are included:
EPOC-131HP-O x 1 ea
Hexagon wrench 3.0mm L type x 1 ea
Cable gland x 2 ea
Menu x 1 pc
DC56V/1.28A AC power adapter x 1 ea (Optional)
Installation Steps:
IP camera end
1. Loosen the sealing nut of cable gland, then pass through UTP (or coaxial) cable and DC power jumper into cable
gland. Please make sure the polar of DC power output when plug the DC power jumper into terminal block.
2. Make the RJ45 (BNC) connector with the UTP (Coaxial) cable.
3. Connect the IP camera RJ45 connector to the 10/100BaseT Ethernet port of EPOC-131HP-O using a standard
Cat5/6 cable of maximum 100 m (328 feet) in length. Connect one end of the long UTP cable EPOC-131HP-O.
4. Loosen 4 hexagon screws of bottom panel with hexagon wrench.
To avoid the waterproof problem, please DO NOT open the TOP PANEL of EPOC-131HPJ-O.
5. Loosen the lock nut of cable gland, then fix cable gland with bottom panel.
6. Push the EPOC-131HPJ-O's board to top side of housing; then tighten the sealing nut with the UTP cable.
7. Tighten bottom panel with housing with 4 hexagon screws.
8. When the IP camera and EPOC-131HP-O cannot receive power through the UTP cable, even through using plug
DC56V power adapter for EPOC-131VAJ. Please refer to "Power Distance VS. Cable Impedance" table.
