I-View EOC-410V Installation Manual

4 Ports Ethernet over Coax Extender Installation Guide
Packing Checklist:
Carefully unpack and check the package box if the following items are included:
EOC-410V x 1 ea
Menu x 1 pc
Product Feature:
Transmits up to distances of 200 meters (works with EOC-100V); 150 meters (works with EOC-110V).
Supports any 10/100M Ethernet device, including IP cameras.
Fully transparent to the network.
Easy to install, no IP and MAC address configuration required

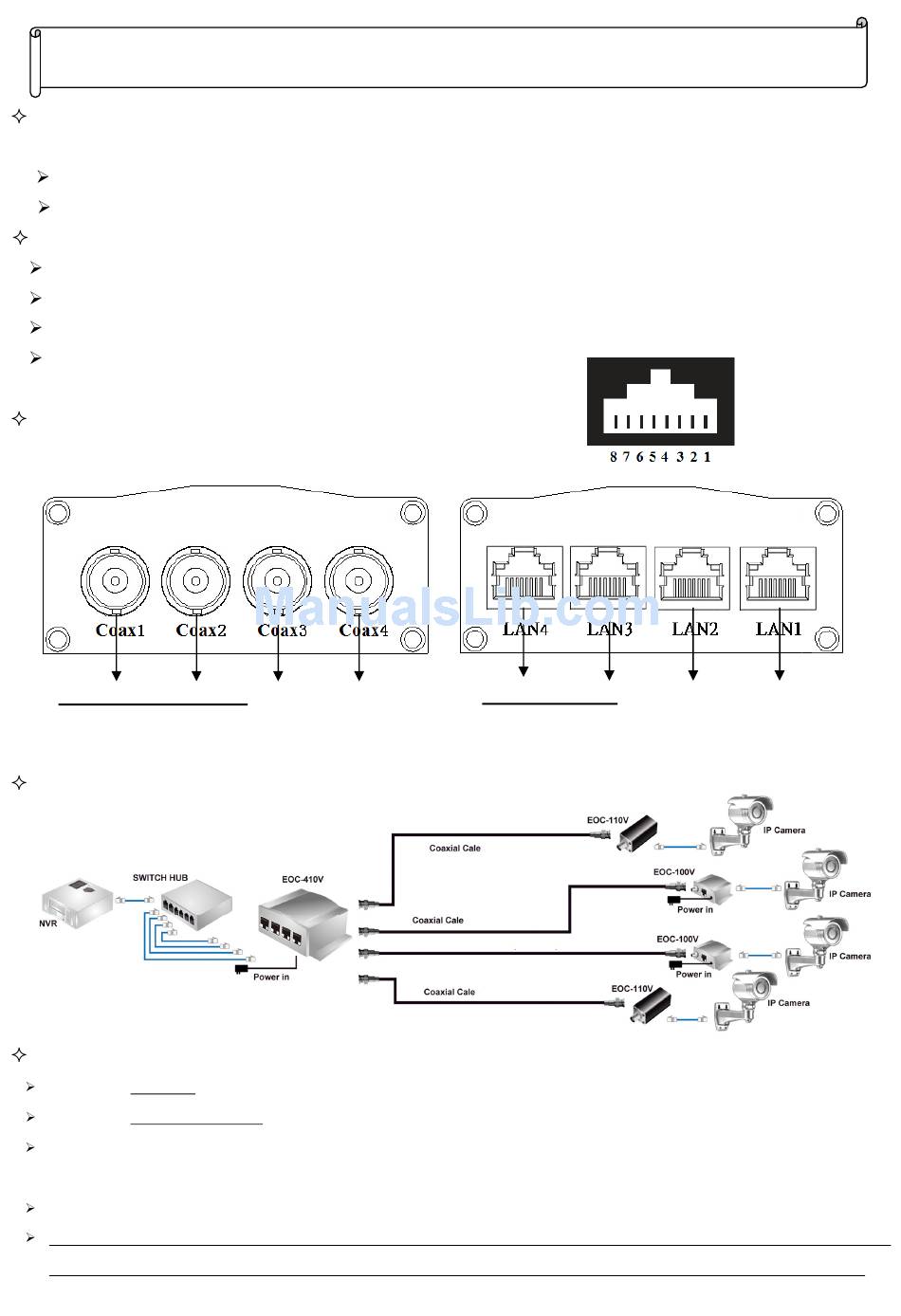

Product Overview:
Front
Female BNC Connector
Ω
Attaches 75
Product Application Diagram
Installation Notes:
Please use 75 Ohm coaxial cable and BNC connector for the data transmission.
Please use less than 2 meters Category 5, 5E or 6 UTP patch cable to connect IP camera or Switch HUB.
Some IP cameras built in pigtail cable which with none standard Cat. 5 UTP cable, it will cause the shorter
transmission distance or no communication. Please confirm this issue to your IP camera vendor.
Please measure the coaxial wire distance, use only transceivers that are designed for that distance.
To avoid the terminator problem, before connecting the LAN cable from EOC device to switching HUB, please
connect the coax cable between both EOC devices and the LAN cable between IP camera & EOC device first.
coax cable.
RJ-45 Pin Assignment
Back
RJ-45 Connector
Attaches to Cat5 or Cat6 patch cable
V1.4
Pin 1: Rx +
Pin 2: Rx -
Pin 3: Tx +
Pin 6: Tx -
