I-View EOC-110V Installation Manual

Ethernet over Coax Extender Installation Guide

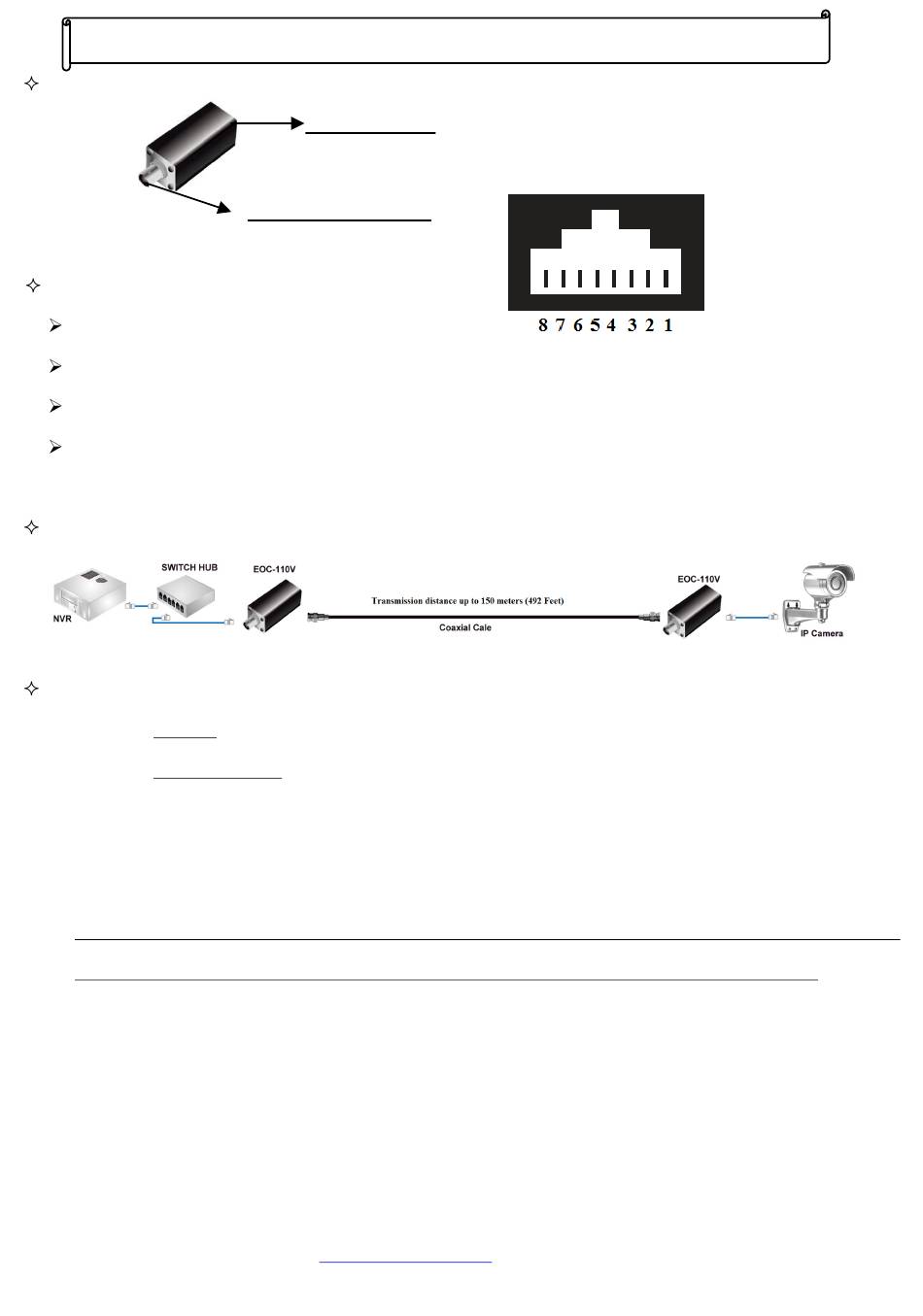

EOC-110Kit Product Overview:
EOC-110V
Product Feature:
Transmits up to distances of 150 meters ⁄ 450 feet.
Supports any 10/100M Ethernet device, including IP cameras.
Fully transparent to the network.
Easy to install, no IP and MAC address configuration required
Product Application Diagram
Installation Notes:
1. Please use 75 Ohm coaxial cable and BNC connector for the data transmission.
2. Please use less than 2 meters Category 5, 5E or 6 UTP patch cable to connect IP camera or Switch HUB.
3. Some IP cameras built in pigtail cable which with none standard Cat. 5 UTP cable, it will cause the shorter
transmission distance or no communication. Please confirm this issue to your IP camera vendor.
4. Please measure the coaxial wire distance, use only transceivers that are designed for that distance.
5. To avoid the terminator problem, before connecting the LAN cable from EOC-110V to HUB, please connect the
coax cable between both EOC-110V devices and the LAN cable between IP camera & EOC-110V first.
6. The quality of coaxial cable will reduce or increase the transmission distance. The EOC-110Kit is tested for use
with RG59U 75 Ohm copper based 20AWG coaxial cable.
7. That is free from damage as in cuts, breaks, or cracks to the outer covering and insulated shielding which may
compromise the signal conductivity of the cable.
8. For safety, DO NOT put EOC signals in the same conduit as high-voltage wiring.
For more specific information regarding wire types, gauges, and proper installation techniques, please call Tech
Support at 886-3-5103001 or email to
RJ-45 Connecto
Cat6 patch cable.
Female BNC Connector
Attaches to 75 Ω coax cable.
support@i-view.com.tw
Attaches to Cat5 or
r
RJ-45 Pin Assignment
V1.5
Pin 1: Rx +
Pin 2: Rx -
Pin 3: Tx +
Pin 6: Tx -
