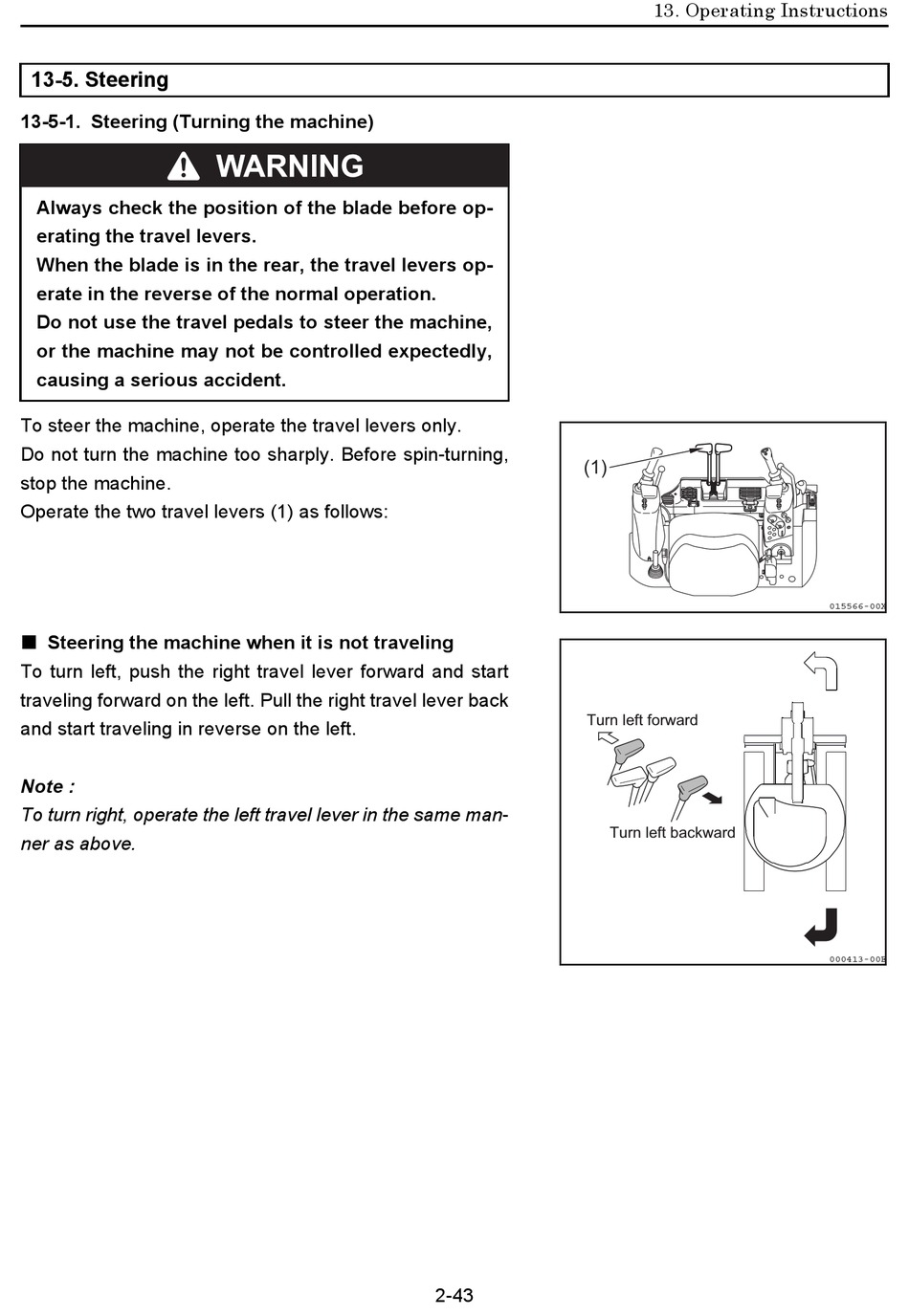

13-5. Steering

13-5-1. Steering (Turning the machine)
Always check the position of the blade before op-
erating the travel levers.
When the blade is in the rear, the travel levers op-
erate in the reverse of the normal operation.
Do not use the travel pedals to steer the machine,
or the machine may not be controlled expectedly,
causing a serious accident.
To steer the machine, operate the travel levers only.
Do not turn the machine too sharply. Before spin-turning,
stop the machine.
Operate the two travel levers (1) as follows:
 Steering the machine when it is not traveling
To turn left, push the right travel lever forward and start
traveling forward on the left. Pull the right travel lever back
and start traveling in reverse on the left.
Note :
To turn right, operate the left travel lever in the same man-
ner as above.
(1)
Turn left forward
2-43
13. Operating Instructions
Turn left backward
015566-00X
000413-00E
