Edal - Alexander History Lesson VOL.3 User Manual

s
ettinG
Your Neo Series pedal has a few user settings
stored in memory. These settings include the
function of the MultiJack on the left side of the
pedal, LED brightness, and others.

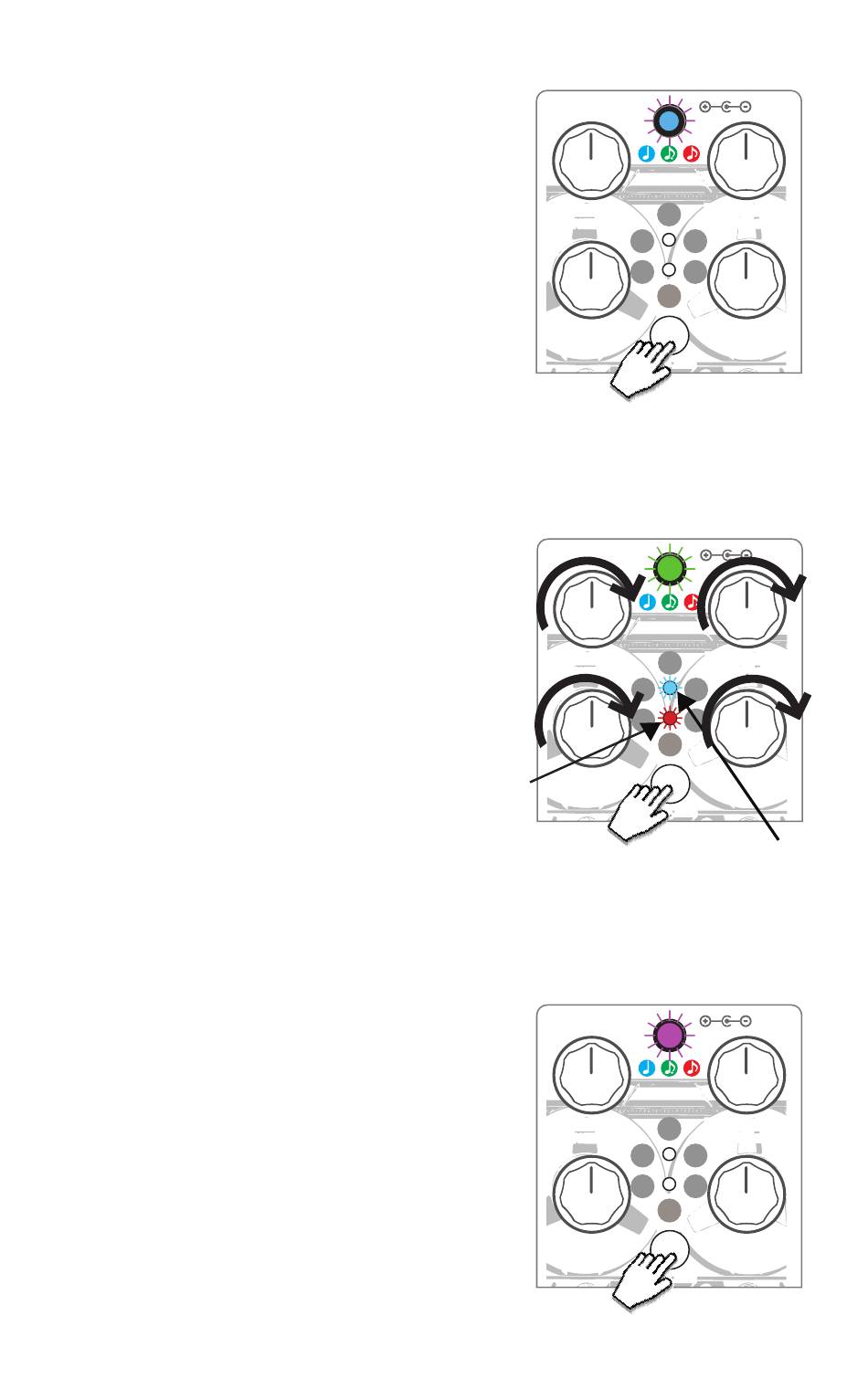

To enter setup, power on the pedal and then
hold down the center Select button. Release
the button when you see the center LED turn
violet.
Tap the center Select button to assign the
MultiJack function. The upper small LED will
change to show this function.
Blue: Expression Pedal Input
Violet: Footswitch Input
Red: MIDI Input
Turn the upper left knob to set the function
of the external footswitch, if configured. The
upper large LED will change to show this
function.
Green: Trigger Ramp
Cyan: Advance One Preset
Blue: Tap tempo
Turn the upper right knob to set the Trails
Timer. Higher settings = longer timer.
Turn the lower right knob to set the brightness
of the main and lower LEDs.
The lower left knob sets the ramp speed
Red: Slow
Violet: Medium
Blue: Fast
Hold the center Select button to save and exit
setup.
If you have changed the function of the
MultiJack, we recommend you power the Neo
Series pedal off and back on in order to ensure
the jack is configured properly.
