Intellex ™ Digital Recorder
9. Setup — Click to access the Setup Op-
tions screen.
10. Image Database — Indicates the amount
of used and available recording space.
11. Help — Click to display help information.

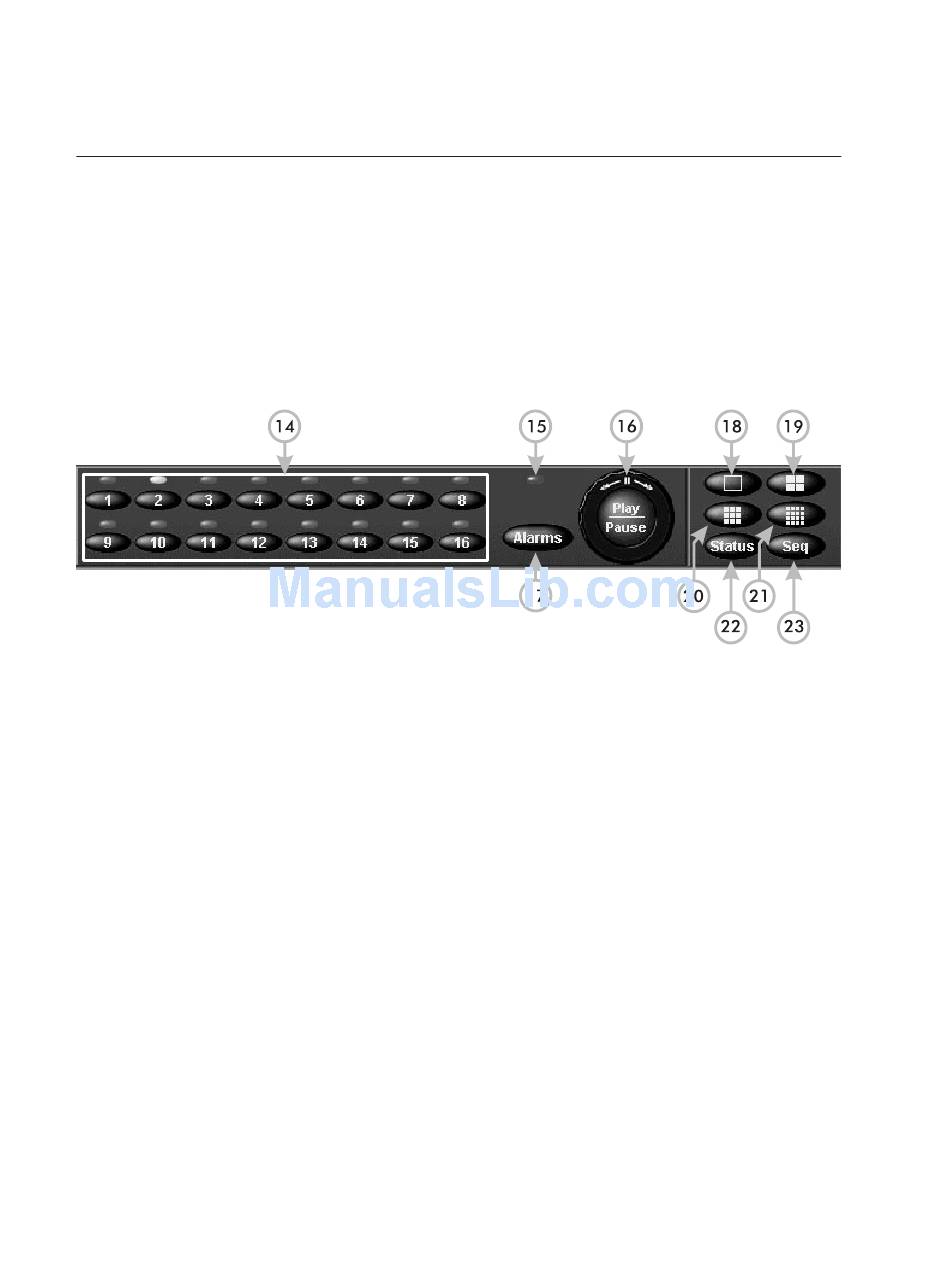

Front Panel Controls and Indicators
14. 1–16 (Cameras) — Press or click to dis-
play a specific camera in the 1x1 format.
The indicator for the displayed camera is
lit.
15. Alarm Indicator — This indicator is lit
when alarm events have occurred, but
have not been reviewed.
16. Play/Pause — Controls speed and
direction of images during playback.
17. Alarms — Press or click to display the
alarm review screen.
18. 1x1 — Press or click to select the single
window display format. Only one cam-
era can be displayed at a time.
12. Play — This indicator is lit when the unit
is playing back images.
13. Record — This indicator is lit when the
unit is recording images. On the front
panel, this indicator is labeled Rec.
19. 2x2 — Press or click to select the four-
window display format. Up to four cam-
eras can be displayed at the same time.
20. 3x3 — Press or click to select the nine-
window display format. Up to nine cam-
eras can be displayed at the same time.
21. 4x4 — Press or click to select the 16-win-
dow display format. Up to 16 cameras can
be displayed at the same time.
22. Status — Press or click to display the
unit's status screen.
23. Seq — Press or click to display cameras
sequentially.
