Summary of Contents for Det-Tronics Eagle Quantum Premier EQ3780HSDM

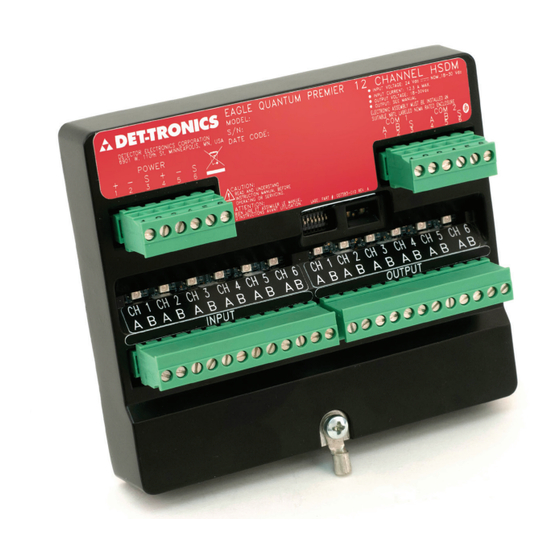

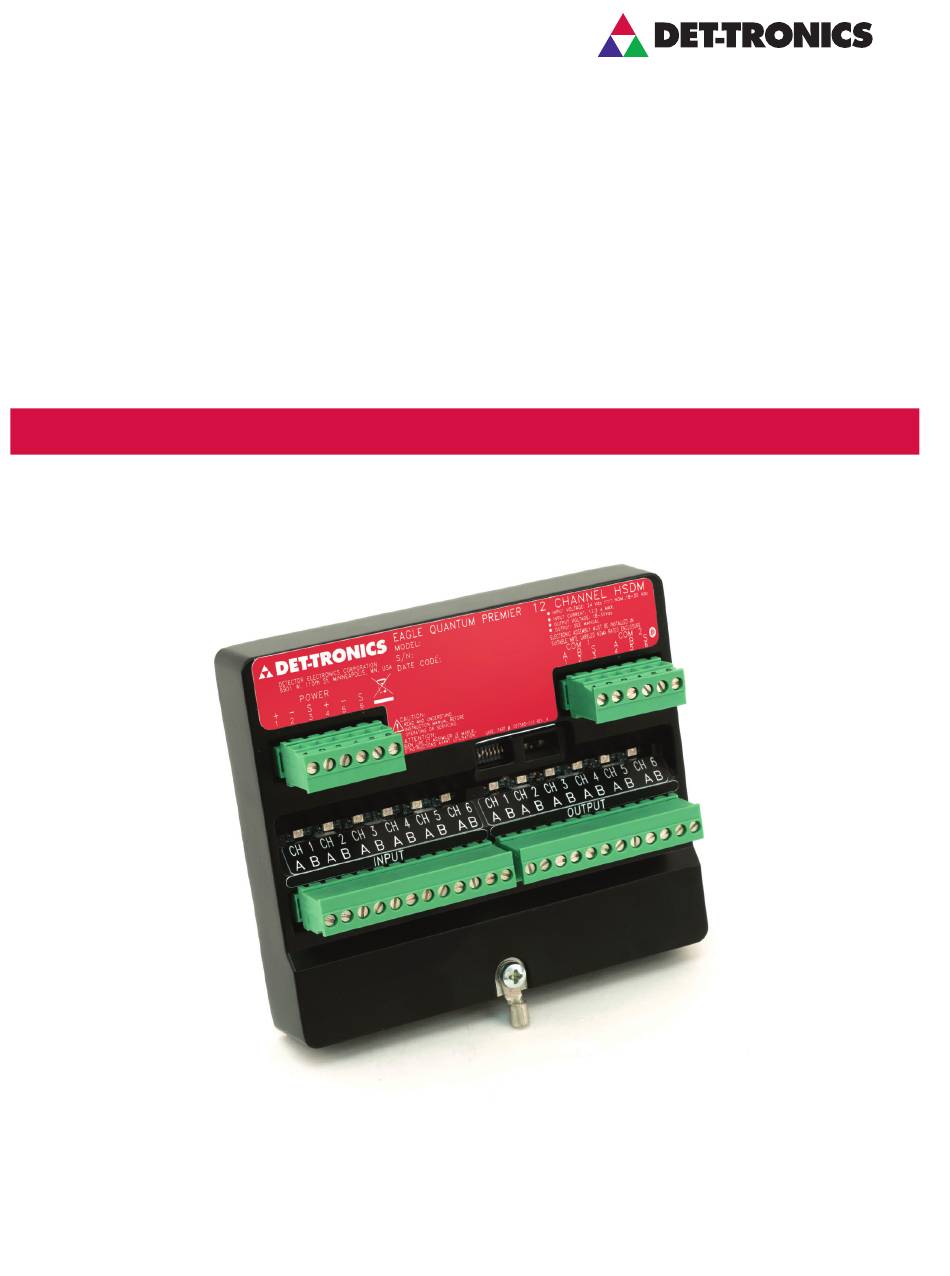

- Page 1 Instructions Eagle Quantum Premier ® 12 Channel High Speed Deluge Module (HSDM) EQ3780HSDM 95-8782...
-
Page 2: Table Of Contents
Table of Contents DESCRIPTION ........1 THEORY OF OPERATION . -
Page 3: Description
INSTRUCTIONS Eagle Quantum Premier ® 12 Channel High Speed Deluge Module (HSDM) EQ3780HSDM DESCRIPTION THEORY OF OPERATION The EQ3780HSDM High Speed Deluge Module (HSDM) is The HSDM is designed to have a typical independent specifically designed to expand the capability of the Det- response time of 2 milliseconds (mS). -
Page 4: Features
–55°C to +85°C (–67°F to +185°F). • Internal independent logic capabilities HUMIDITY RANGE— • RFI and EMI hardened (CE Marked and Maritime 5 to 95% RH, non-condensing. Compliant) • Expands the capabilities of the Det-Tronics Eagle VIBRATION— Quantum Premier system ® DNVGL-CG-0339 (Class A). - Page 5 INPUT CIRCUITS OUTPUT / RELEASING OR UNSUPERVISED DEVICE CIRCUITS UNSUPERVISED INPUT— Two state input (on/off). UNSUPERVISED OUTPUT RATING (Per Channel)— Normally open contact. 2 amperes max per channel, 10 amperes max per device at 30 Vdc maximum. SUPERVISED INPUT (Open Circuit)— For Class A and Class B wiring.
-
Page 6: Hsdm Configuration
Class B Opens (default), Opens/Shorts (optional) value - See Figure 2. Class A Opens (default), Opens/Shorts (optional) Unsupervised None Det-Tronics Safety System Software (S3), is used to Cascade Opens (default) configure other parameters of the HSDM - See Figure 3. 95-8782... -
Page 7: Outputs
2 Amperes at 30 Vdc, up to a maximum of HSDM’s that are configured to cascade must 10A per module. Det-Tronics Safety System Software be operated from the same power supply. It is (S3), is used to configure the HSDM - See Figure 3. -
Page 8: Cascade Configuration
5.3 CASCADE CONFIGURATION Wiring Method Supervision If more than six (6) solenoids are required to be Output not used None activated with a given input, a unique Cascade output Class B Opens (default), Opens/Shorts (optional) feature is available that allows a single HSDM input Class A Opens (default), Opens/Shorts (optional) to activate additional HSDM outputs. -
Page 9: Example #1
HSDM-1 Input 1 con gured as Class A, B, or Input to Output = Unsupervised Typically 2mS Input Output HSDM-2 Input 1 con gured as cascade Solenoids Input Output Input to Output = Typically 2mS Solenoids HSDM-3 Input 1 con gured as cascade Input Output Solenoids... -
Page 10: Hsdm Operation
The information is typical for channels 2-6. status as indicated below: See Figures 15 and 16 for wiring diagrams for wiring to Green: Normal Condition a Det-Tronics flame detector. Yellow: Trouble / Fault Condition Active Condition Red: Output Connector, Terminals 1 to 12 Terminals A &... -
Page 11: Unsupervised Outputs
wiring or be wired within 20 feet (6.1 m) and in conduit NOTE from the HSDM. See Table 1 for a list of FM Approved For FM system approval listing, pre-action solenoids for deluge and pre-action applications. and deluge applications require that only FM compatibility approved solenoids can be wired into the HSDM outputs. - Page 12 OUTPUT 10 K Ω CH 1 CH 1 SOLENOID COIL A2728 Figure 7—Supervised Input Configuration (Opens Only) – Class B NOTE: SHUNT/FLYBACK DIODES DO NOT NEED TO BE INSTALLED ON THE FIELD DEVICE. CIRCUIT PROTECTION IS PROVIDED WITHIN THE HSDM MODULE. A2733 INPUT Figure 11—Supervised Output Configuration —...
-
Page 13: Cascaded Wiring Connections
895630 2000 Cat # 81-895630-000 Kidde-Fenwal 890181 2000 Det-Tronics PN 00219-209 Ansul 570537 Macron 304.209.001 *Note: Alternate secondary power source when accepted by local authority having jurisdiction may increase permissible wire voltage drops. Actual secondary voltage must be determined. Voltage and current at solenoid must be known and used in the equation. - Page 14 –Vin –Vin Figure 15—Typical Wiring for Single Flame Detector Wiring HSDM Supervising for Opens Only (Det-Tronics part number 000128-191) is approved to from the HSDM outputs. Please consult the factory for be installed within the EQ3900G series of enclosures. details.
- Page 15 EQ3780HSDM COMMON B Shield COM 2 Shield OUT A COM 2 B LON CONNECTION COMMON B COM 2 A OUT A Shield COM 1 Shield COMMON B LON CONNECTION COM 1 B OUT A COM 1 A COMMON B OUT A COMMON B OUT A COMMON B...
-
Page 16: Commissioning
COMMISSIONING 10.0 SERVICING Follow the steps below when commissioning the Follow the steps below when servicing the HSDM: HSDM: A. Shut off water supply and lock out / tag out valves A. Shut off water supply and lock out / tag out valves that supply deluge nozzles. -
Page 17: Voltage Fault Conditions
20.8 Vdc or less. The point at which the fault occurs was selected to alert users that the voltage If your Det-Tronics equipment requires return, repair or available at the output(s) may be insufficient to reliably replacement, we are ready to meet your needs. To ac- activate a 24 Vdc solenoid. - Page 18 Specifications subject to change without notice. All trademarks are the property of their respective owners. © 2020 Detector Electronics Corporation. All rights reserved. Det-Tronics manufacturing system is certified to ISO 9001— Corporate Office Phone: +1 952.941.6665 the world’s most recognized quality management standard.
