  • Page 1 Instructions Eagle Quantum Premier General Purpose Electronic Based Equipment Enclosure Solutions EQ3900K Series Rev: 5/17 95-8769...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 FEATURES .
  • Page 3: Description

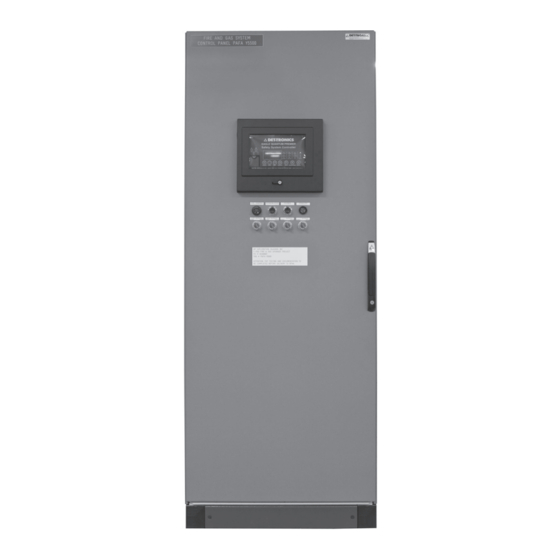

    INSTRUCTIONS Eagle Quantum Premier ® General Purpose Electronic Based Equipment Enclosure Solutions EQ3900K Series DESCRIPTION FEATURES • General purpose area (non-hazardous) location As part of providing the total solution to commercial installation and industrial clients from around the world, Detector •...
  • Page 4: Specifications

    Only manufacturer recommended cable glands can be TEMPERATURE RANGE— used with the enclosures. Consult with Det-Tronics on Operating: +32°F to +122°F (0°C to +50°C). the exact number and sizes of entries that are available Storage: –4°F to +158°F (–20°C to +70°C).
  • Page 5: System Components

    The I/O allocation may be moved EQ3720RM - Relay Module from factory assigned terminals after notification to Det-Tronics. See Notes 4 and 5 in Figures 1 thru 3 for EQ3730EDIO - Enhanced Discrete Input/Output Module configuration change details.
  • Page 6 TYCO RELAYS IN HVAC APPLICATIONS EOL RESISTOR REMOTE EQ3900K ENCLOSURE 10K OHM, 1/2 WATT ENCLOSURE SUPPLIED BY OTHERS R1-1 R2-1 R2-2 1-3/C#14 OR 2#14 IN CONDUIT TEST SWITCH CONTACT 24 VDC TEST SW TEST SWITCH CONTACT OPENS DURING TEST SWITCH EQP PANEL OPENS IN TEST INPUT...
  • Page 7 PHOENIX CONTACT RELAY MODEL 2966171 IN HVAC APPLICATIONS EOL RESISTOR 10K OHM, 1/2 WATT EQ3900K (see note 7) ENCLOSURE ALL WIRING IS 16 AWG, 600V RATED, TYPICAL TEST SWITCH CONTACT 24 VDC TEST SW TEST SWITCH CONTACT OPENS DURING TEST SWITCH EQP PANEL OPENS IN TEST...
  • Page 8 PHOENIX CONTACT RELAY MODEL 2981020 OR 2963912 PSR-SCP-24UC IN HVAC APPLICATIONS EOL RESISTOR 10K OHM, 1/2 WATT EQ3900K (see note 7) ENCLOSURE ALL WIRING IS 16 AWG, 600V RATED, TYPICAL TEST SWITCH CONTACT 24 VDC TEST SW TEST SWITCH CONTACT OPENS DURING TEST SWITCH...
  • Page 9: Ordering Information

    For assistance in ordering a system to fit your application, please contact: Detector Electronics Corporation 6901 West 110th Street Minneapolis, Minnesota 55438 USA Operator: (952) 941-5665 or (800) 765-FIRE Customer Service: (952) 946-6491 WALL MOUNTED ENCLOSURES Fax: (952) 829-8750 E-mail: det-tronics@det-tronics.com MAXIMUM NUMBER OF SIZE EQP I/O MODULES 95-8769...
  • Page 10 Specifications subject to change without notice . All trademarks are the property of their respective owners . © 2020 Detector Electronics Corporation . All rights reserved . Det-Tronics manufacturing system is certified to ISO 9001— Corporate Office Phone: +1 952 .941 .6665 the world’s most recognized quality management standard .
