Det-Tronics Eagle Quantum Premier EQ3760ASM Manual

DESCRIPTION

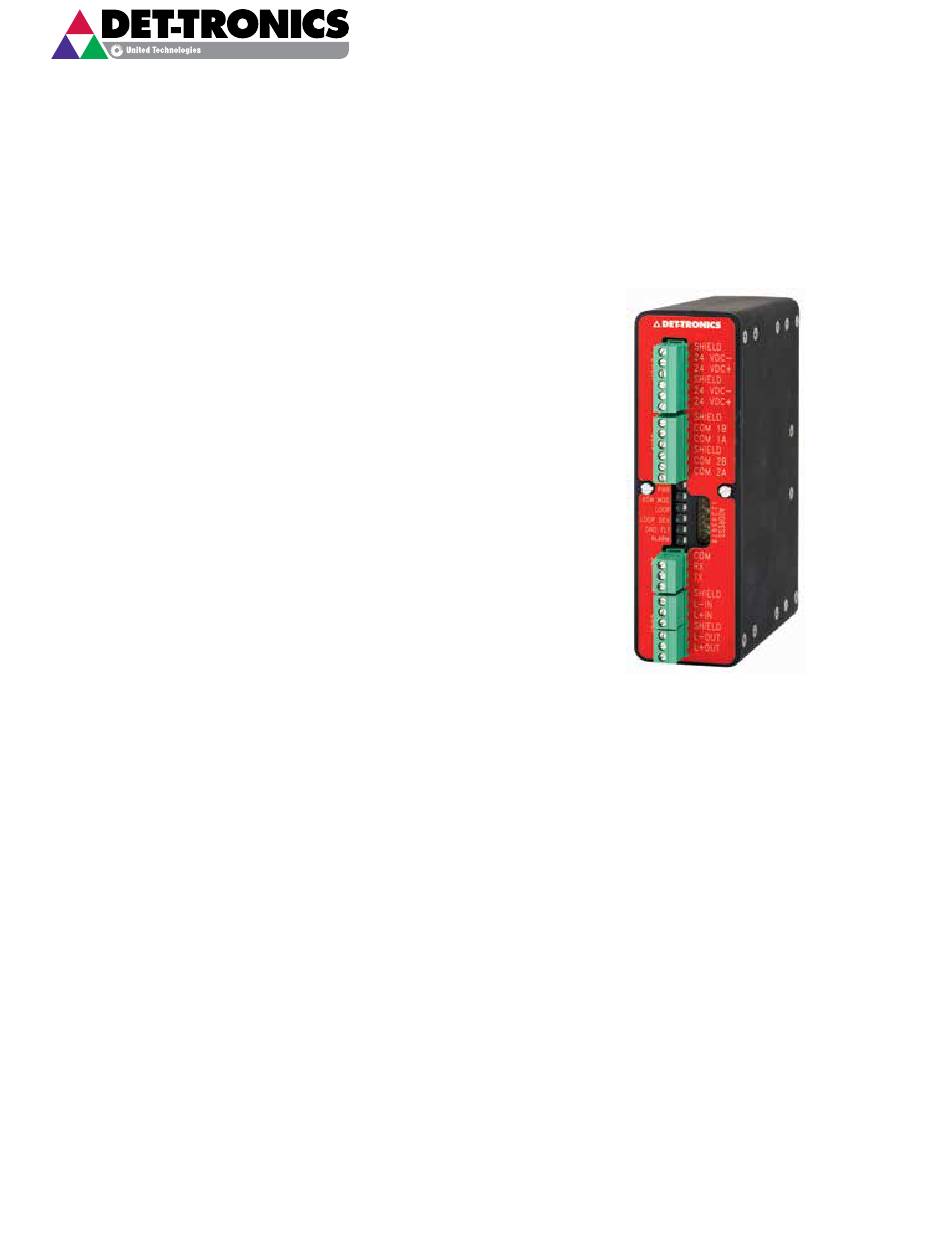

The Eagle Quantum Premier
Module (ASM) is designed to expand the input and
output capability of Detector Electronics Corporation's
(Det-Tronics ® ) EQP system.
The ASM is a SIL2 certified interface device designed
to provide continuous and automated fire protection. It
ensures system operation through supervision of system
inputs/outputs and Local Operating Network/Signaling
Line Circuit (LON/SLC) monitoring in the controller.
The ASM is located directly on the LON of the EQP
system, with a loop of up to 100 addressable devices
connected to the ASM. This allows the EQP controller to
annunciate a fire alarm from either its own LON based I/O
or from the ASM connected addressable detection loops.
System status can be determined using the Eagle
Quantum Safety System Software (S
or later), and the status indicators on the module.
FEATURES AND BENEFITS
• Expands the capabilities of Det-Tronics' Eagle
Quantum Premier system
• EQP Controller can support up to 10 ASM Modules
on a loop
This support is dependant on system configuration
3
and logic within S .
• Provides power and communications to 100
addressable devices
• Utilizes Apollo Discovery devices
• XP95 protocol/devices supported
©
1.3 Detector Electronics Corporation 2017
®
(EQP) Addressable Smoke
3 Version: 10.15.0.5
NOTE
Eagle Quantum Premier
Addressable Smoke Module (ASM)
• ASM Module alarm and fault conditions are logged in
the EQP Controller
• LEDs for easy annunciation of power, faults and
active devices on the loop
• Monitors single addressable devices
• Provides remote I/O capabilities via LON/SLC
• DIN rail or panel mounting
• Plug-in wiring connectors
• RFI and EMI hardened
• Approved for use in marine applications (Panel
mount only)
• SIL2 when using SIL rated smoke detectors
• Provides intrinsic safety smoke detector option
INSTRUCTIONS
® (EQP)
EQ3760ASM
Rev: 9/16 95-8755
