Woosh Rio FB User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Rio FB User Guide
Please read this manual.
It contains important information regarding
your safety, the correct use of the bike and
how to avoid expensive repair fees
in the future .
Sales: 01702 435566 — Support: 01702 684444 — E-mail: support@wooshbikes.co.uk
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rio FB and is the answer not in the manual?

Questions and answers

Related Manuals for Woosh Rio FB

Summary of Contents for Woosh Rio FB

  • Page 1 Rio FB User Guide Please read this manual. It contains important information regarding your safety, the correct use of the bike and how to avoid expensive repair fees in the future . Sales: 01702 435566 — Support: 01702 684444 — E-mail: support@wooshbikes.co.uk...

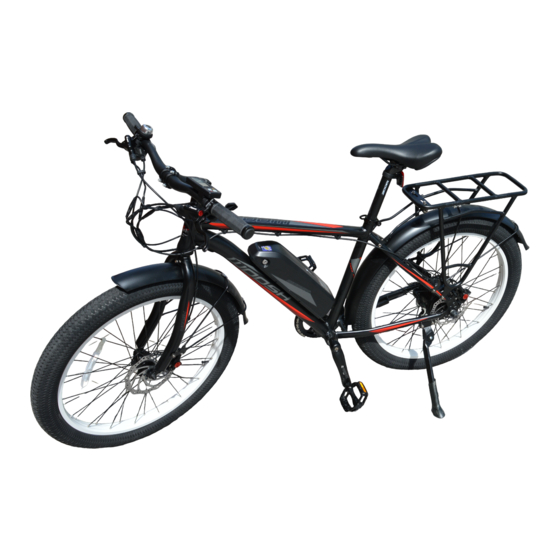

  • Page 2 The Rio Fat Boy from Woosh The Rio Fat Boy is a strong sturdy bike with a good range which can be used for commuting. It has a 13Ah battery which means that distances of 45+ miles can be achieved on a single charge in ideal conditions. If you rely heavily on the throttle and do not put much effort in yourself, then the battery will run down more quickly and the distance able to be travelled on a single charge will be reduced accordingly.
  • Page 3 See the maintenance manual for how to adjust and maintain the various components of the bike. Please note that failure to carry out these checks properly could result in serious injury for which Woosh Bikes Ltd will not be held liable.
  • Page 4 Kick-stand: We have had a few instances recently where the kick-stand of this particular model has been damaged in transit, and so for this reason the kick-stand is now removed from the bike before the bike is packed/ dispatched. You should find the kick-stand strapped to the top tube, and with it, you should find the two bolts and washers needed to fit it.
  • Page 5 Once you have the bike out of the box, detach the wheel and remove all of the remaining packaging. The Rio FB comes mostly assembled, and so requires just a few steps to complete the basic assembly of the bike. Fit the handlebars first so that they are out of the way and will not scratch the frame whilst the rest of the bike is assembled.
  • Page 6 Handlebars cont. It is possible to bring the handlebars upwards and towards the rider or to have them lower and further from the rider. To make this adjustment, loosen the bolt shown below-left, then adjust the position to suit. Tight- en the bolt to secure them in position.
  • Page 7 Seat-post/saddle: To adjust the height of the saddle, simply open the clamp and then position the seat-post at the desired height and then close the clamp to lock it into position. It may be necessary to tighten the thumb screw on the opposite side of the clamp to ensure that when the clamp is closed the seat-post is properly secured.
  • Page 8 GREEN. Remember to separate your keys, Woosh Bikes is not able to supply replacements if you lose them. Green LED—Battery full (or charger not connected)
  • Page 9 Obviously the bike shop will you charge for this service. Woosh Bikes not reimburse you for these costs.
  • Page 10 Riding the bike\Getting started To begin using the bike, press the ’+’ button on the control panel (see below-right), the bike is now effec- tively on, and if you ride it in this state, the motor will provide assistance when pedalling. To vary the amount of assistance provided by the motor when pedalling, use the ’+’...
  • Page 11 Control Panel—Advanced Features + / - Buttons Automatic Mode Indicator Total Distance Single Trip Distance Single Trip Time Remaining Battery Capacity Kilometre/Mile Current Speed Assistance Level On/Off Function—Press the ‘+’ button to turn on the bike. Press and hold the ‘+’ for approx. four seconds to turn the electrics off.

  • Page 12: Declaration Of Conformity

    Woosh Rio/Rio FB Woosh Sant Ana CD/CDL Manufacturer, address Made in China for Woosh Bikes Ltd 42-46 Queens Road, Southend-on-Sea, Essex, SS1 1NL, UK The product (system) identified above is in conformity with the listed European Directive(s). The following table identifies the applied standards and the conformity assessment procedure.
  • Page 13 Monday morning (or next business day if it’s a bank holiday). Support articles and FAQ’s: www.wooshbikes.co.uk/?support Email: support@wooshbikes.co.uk Telephone: 01702 684444 If there is no answer, leave your name and a brief message and we will call you back. © 2017 Woosh Bikes Limited...
