Owner's Manual and User's Guide
Before operating the appliance for the first time, please study these instructions
and important safe-guards carefully.

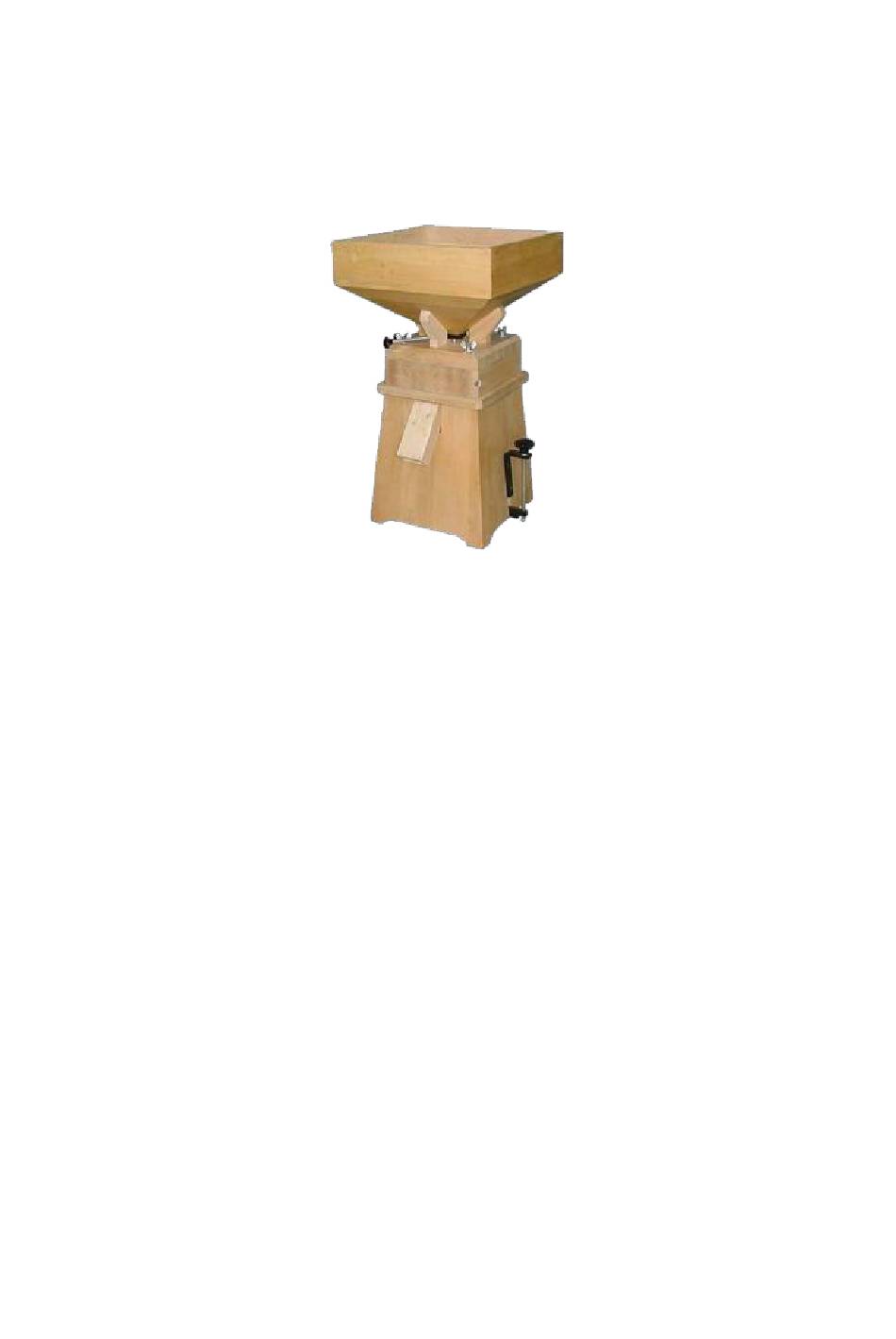

The Salzburger Grain Mill AM 3
Due to the fact that we have paid special attention to the high-grade quality of the materials
chosen – especially with regard to the milling chamber – this mill is a technically well-
thought out appliance allowing no compromise on all its aspects.
Setting up of the Grain Mill:
For our Salzburger Grain Mill the material predominately used is solid wood. Wood is a living
material - which just like grain - can absorb moisture, respectively can emit the humidity to
its surroundings thus continually changing its own volume and characteristics. A high rate of
moisture loss, caused by very dry air may cause splitting of the wood and change to the
form, which may lower the efficiency of the mill.
For this reason, do not set the mill up in the proximity of any sources of direct heat (heating,
etc) or in direct sunlight. The most favourable surroundings would be a room with normal
humidity rates and normal temperatures.
Any surface irregularities can be balanced by adjusting the positioning feet.
Advertisement
Table of Contents
Related Manuals for SALZBURGER GETREIDEMÜHLE AM 3
Summary of Contents for SALZBURGER GETREIDEMÜHLE AM 3
- Page 1 Before operating the appliance for the first time, please study these instructions and important safe-guards carefully. The Salzburger Grain Mill AM 3 Due to the fact that we have paid special attention to the high-grade quality of the materials chosen – especially with regard to the milling chamber – this mill is a technically well- thought out appliance allowing no compromise on all its aspects.
-
Page 2: Possible Uses
Possible Uses: With our Salzburger Grain Mill AM 3 it is possible to process all types of dry grain. Please be sure to use only dry and well cleansed grain. Small stones and other foreign particles can damage the mill- stones. - Page 3 condition. Repairs may only be carried out by persons authorized by Agrisan GmbH 4. The seller must immediately be informed of any defects. 5. The safety devices must not be modified or turned off. 6. Use the mill only on a flat, stable surface. 7.
-
Page 4: Important Note
29. Never undertake any repair or do-it-yourself work – even if very simple things yourself. Start-Up: Our grain mill AM 3 mill has to be connected to an earthed power source with a 380 V power current with a frequency of 50 Hz. -
Page 5: Working Time
When using dry grain and milling at a normal, ambient temperature our Salzburger Grain Mill AM 3 is suitable for continuous operation. It is fitted with a robust industrial motor. Only an industrial motor is constructed in all components with the highest quality standards. By... - Page 6 The grain mill has been set at a too fine setting for the type of grain chosen. (Danger of the millstones becoming smeared) Smeared Mill-Stones: If your grain was too moist for the desired setting, the mill-stones will become smeared. In this case a hard, smooth layer will develop on the outer edges of the stones.
- Page 7 1. Disconnect the mill from the electrical circuit. 2. Open the locking screws in the funnel and lift the funnel off. 3. Open the 4 locking screws of the milling chamber and lift off the funnel cone. 4. Now you can clean the milling-stones (either using a knife or steel brush) or the milling chamber (with a vacuum cleaner).
-
Page 8: Warranty
The safety switch has turned the mill off Possible Cause: Possible Solution: Mill-stones smeared: Dry the grain, clean the mill-stones Flour spout blocked: Dry the grain or/and remove flour blockage, clean flour spout – make sure the flour container is suitable Foreign particles in the grain: Set to coarse and remove Mill set too finely:... -
Page 9: Repair Service
In case of any warranty claim your statutory warranty rights, which you can independently assert against us, do, of course, remain upright in case of any defect and are not restricted by the warranty. Proof of purchase must be provided for any warranty claim. Warranty claims: Within the claim period, we do, of course, carry out any necessary repair work completely free of charge on defects in material and workmanship during the warranty period. -
Page 10: Technical Details
Technical Details: Milling capacity fine: appr. 60-70 kg/h Milling capacity coarse: appr. 100 kg/h Weight: 65 kg Funnel capacity: 40 Kg (can be increased) Standing space: 550 x 550 mm Height: 90 mm Fine- coarse control: infinitely variable Input control: reduces the temperature during milling Mill-stone: corundum-ceramic...
