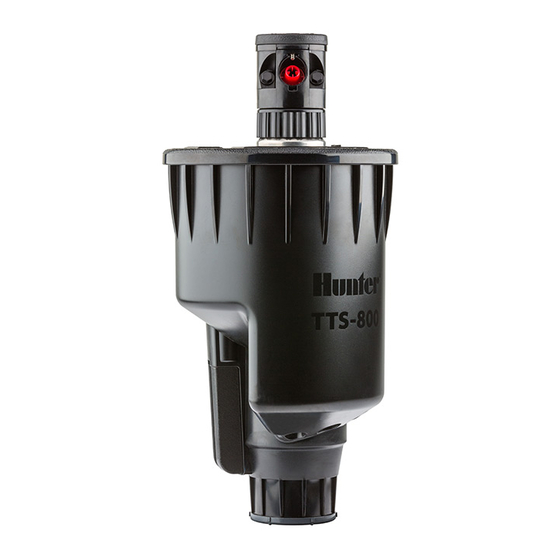

Hunter TTS-800 Series Owner's Manual

Golf rotors
Hide thumbs

Advertisement

Quick Links

TTS-800 GOLF ROTORS
OWNER'S MANUAL
Golf Rotors
TTS-800 Series

Advertisement

loading
Need help?

Need help?

Do you have a question about the TTS-800 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hunter TTS-800 Series

Summary of Contents for Hunter TTS-800 Series

  • Page 1 TTS-800 GOLF ROTORS OWNER’S MANUAL Golf Rotors TTS-800 Series...

  • Page 2: Table Of Contents

    Precision Engineering, Inside and Out Table of Contents Hunter has been on the leading edge of golf Product Overview ..........3 irrigation for more than three decades. We Replacement Parts ...........4 build performance, reliability, and serviceability Installation Details..........5 into every product we make.

  • Page 3: Product Overview

    Product Overview Models Riserless body assembly for GT800DPx / Riserless body assembly for GT800C Riserless body assembly for GT800EPx Note: Solenoid only. Preset pressure 5 = 50 PSI GT800DDPx (3.4 bar; 340 kPa), 6 = 65 PSI (4.9 bar; 490 kPa), Note: Two-way module 100 and 200 assembly.

  • Page 4: Replacement Parts

    Replacement Parts TTS-800 Series Parts List The following replacement parts can be purchased individually or as kits. COMPONENTS ① PART NUMBER DESCRIPTION 954400SP Qty 1, Lid Assembly, Switch 954401SP Qty 1, Lid Assembly, COM ② 915700SP Qty 10, Yardage Marker, Black...

  • Page 5: Installation Details

    Installation Details Wiring Diagram The diagram below illustrates wiring connections for two-way module systems. Installation Best Practices A. Adjust the swing joint to level the top surface of the rotor body with the finished grade. Backfill the area around the body with sand for proper drainage and tamp down the soil to prevent settling.

  • Page 6: Operating Instructions

    Operating Instructions Auto (4) Flow exiting solenoid manifold, (6) Flow exiting manifold assembly and (1) Flow entering from serviceable inlet valve, (2) through selector switch chamber, and (5) entering pressure regulator returning to serviceable inlet valve (3) entering solenoid manifold ➂...
  • Page 7 Operating Instructions Pressure Regulator Adjustment Note: Use a 5/8" (16 mm) socket wrench or the Hunter Pressure Rotate the top teal knob counterclockwise to reduce pressure from Regulator Tool to unscrew the main body of the pressure regulator. 60 to 120 PSI (4.1 to 8.3 bar; 410 to 830 kPa). Rotate the teal knob clockwise to increase pressure.

  • Page 8: Service And Maintenance

    Service and Maintenance Rotor Assembly Removal and Installation 2. Insert the end of of the snap ring removal 3. Insert the end of the snap ring removal tool into the slot in the snap ring and pull tool into the slot in the riser logo cap and 1.
  • Page 9 Service and Maintenance Internal Component Removal and Installation 4. Turn the quarter-turn screw 2. Unscrew the solenoid. Then remove counterclockwise to release the lid. the solenoid/two-way module 1. Loosen the screw and remove the pilot Insert the snap ring removal tool (P/N (yellow) assembly.
  • Page 10 Service and Maintenance Serviceable Selector Switch Removal and Installation 4. Pull the selector switch up vertically 3. Pull the solenoid base away from to remove. the selector switch assembly and 1. Loosen the screw and remove the Note: Ensure the internal tabs are aligned with the up to remove.
  • Page 11 Service and Maintenance Serviceable Inlet Valve Servicing of Selector Removal and Installation 2. Remove the selector switch assembly by Switch Assembly pulling up on the pressure regulator. 1. Locate the opposing tabs on the snap ring in the base of the body with pliers. 2.
  • Page 12 Service and Maintenance Serviceable Inlet Valve Maintenance 3. Remove the serviceable inlet valve with 2. The valve filter screen (P/N 387400SP) the inlet valve tool (P/N 604000SP) or snaps off and on. grab the tab in the center of the inlet valve with pliers (P/N 475600SP) and pull up.

  • Page 13: Winterization

    Winterization Fall Winterization Water enters through valve filter screen and 3. Blowout Procedure 1. Water Source/Pumping System pressure holds the diaphragm closed. A. Turn off main water supply and inlet/ NOTE: This procedure should be outlet valve on interior mounted backflow performed by a licensed contractor devices.

  • Page 14: Performance Data: Imperial

    Performance Data: Imperial TTS-885 NOZZLE PERFORMANCE DATA* Nozzle Pressure Radius Flow Precip in/hr Left Center Right 0.63 0.72 Orange Dark Green 0.62 0.72 10.2 0.58 0.67 803603 315312 Light Green 11.4 0.50 0.57 Orange White 12.3 0.51 0.59 12.9 0.52 0.60 803603 315314...
  • Page 15 Performance Data: Imperial TTS-885 NOZZLE PERFORMANCE DATA* (CONTINUED) Nozzle Pressure Radius Flow Precip in/hr Left Center Right Green 41.2 0.60 0.70 43.5 0.61 0.70 803602 315310 46.2 0.60 0.69 Dark Brown 48.7 0.59 0.68 Dark Red Dark Green 46.3 0.65 0.75 48.4 0.64...
  • Page 16 Performance Data: Imperial TTS-884 NOZZLE PERFORMANCE DATA* Nozzle Pressure Radius Flow Precip in/hr Left Center Right 14.2 0.57 0.66 Gray 15.7 0.58 0.67 16.4 0.58 0.67 803611 315317 17.0 0.58 0.67 White 18.2 0.58 0.67 17.2 0.53 0.61 Gray 18.8 0.54 0.62 19.7...
  • Page 17 Performance Data: Imperial TTS-880 NOZZLE PERFORMANCE DATA* Nozzle Pressure Radius Flow Precip in/hr Left Center Right 14.2 0.57 0.66 Gray 15.7 0.58 0.67 16.4 0.58 0.67 803611 315317 17.0 0.58 0.67 White 18.2 0.58 0.67 17.2 0.53 0.61 Gray 18.8 0.54 0.62 19.7...
  • Page 18 Performance Data: Imperial TTS-835 NOZZLE PERFORMANCE DATA* Nozzle Pressure Radius Flow Precip in/hr 0.56 0.65 0.51 0.58 0.48 0.55 Yellow 0.47 0.55 0.55 0.63 0.49 0.57 0.46 0.53 Yellow 0.44 0.51 0.60 0.69 0.50 0.58 0.47 0.54 Yellow 0.46 0.53 0.54 0.62 0.47...

  • Page 19: Performance Data: Metric

    Performance Data: Metric TTS-885 NOZZLE PERFORMANCE DATA* Nozzle Pressure Radius Flow Precip mm/hr Left Center Right l/min 11.3 2.02 33.7 15.9 18.4 Orange Dark Green 11.9 2.23 37.1 15.8 18.2 12.5 2.32 38.6 14.8 17.1 803603 315312 Light Green 14.3 2.59 43.2 12.6...
  • Page 20 Performance Data: Metric TTS-885 NOZZLE PERFORMANCE DATA* (CONTINUED) Nozzle Pressure Radius Flow Precip mm/hr Left Center Right l/min Green 24.7 9.36 156.0 15.4 17.7 25.3 9.88 164.7 15.4 17.8 803602 315310 26.2 10.49 174.9 15.3 17.6 Dark Brown 27.1 11.06 184.3 15.0 17.4...
  • Page 21 Performance Data: Metric TTS-884 NOZZLE PERFORMANCE DATA* Nozzle Pressure Radius Flow Precip mm/hr Left Center Right l/min 14.9 3.23 53.8 14.5 16.7 Gray 15.5 3.57 59.4 14.8 17.0 15.9 3.73 62.1 14.8 17.1 803611 315317 16.2 3.86 64.4 14.8 17.1 White 16.8 4.13...
  • Page 22 Performance Data: Metric TTS-880 NOZZLE PERFORMANCE DATA* Nozzle Pressure Radius Flow Precip mm/hr Left Center Right l/min 14.9 3.23 53.8 14.5 16.7 Gray 15.5 3.57 59.4 14.8 17.0 15.9 3.73 62.1 14.8 17.1 803611 315317 16.2 3.86 64.4 14.8 17.1 White 16.8 4.13...
  • Page 23 Performance Data: Metric TTS-835 NOZZLE PERFORMANCE DATA* Nozzle Pressure Radius Flow Precip mm/hr l/min 0.43 14.3 16.6 0.48 12.8 14.8 0.55 12.1 14.0 Yellow 0.59 12.0 13.9 0.68 11.4 13.9 16.0 0.73 21.1 12.5 14.5 0.80 13.2 11.7 13.6 Yellow 0.82 13.6 11.2...
  • Page 24 Hunter has been on the leading edge of golf course irrigation for more than three decades. We build performance, reliability, and serviceability into every product. From our industry-best rotors to our robust Pilot irrigation control system, we take ® pride in providing golf experts and professionals with the tools and support they need to conceptualize, create, and manage world-class golf courses.
