CMT2189B User Guideline
Summary

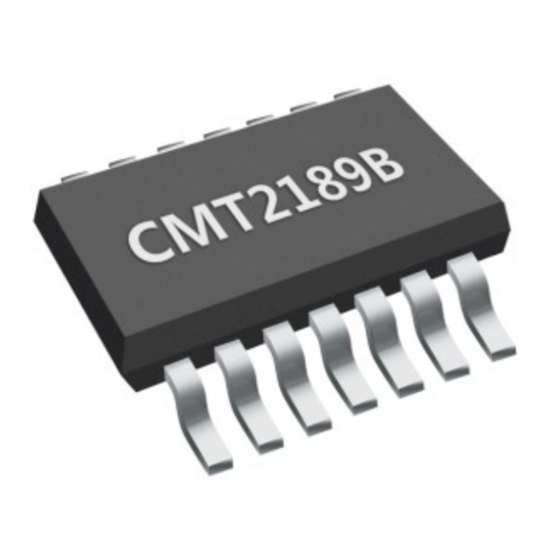

CMT2189B is a low power, high performance, Flash-based, OOK RF transmitter chip.It covers the 240MHz -
960MHz wireless communication band. This chip is embedded with RISC Flash type MCU. It belongs to the
TM
CMOSTEK NextGenRF
series product.The product series includes the short range wireless communication
chips, such as transmitter, receiver, transceiver, SoC and so on.
The part numbers covered by this document are as shown below.
Table1.
Part Numbers Covered by This Document
Frequency
Part No.
Modem
Configuration
Package
Tx Power
Tx Current
Embedded
CMT2189B
240 - 960MHz
OOK
+13dBm
17.5mA
SOP14
MCU
Note: The test condition for the Tx power and Tx current is at 433.92MHz. CW mode is always in the Tx
carrier mode. The Tx current is about 8.5mA according to the Tx mode of Duty 50%.
www.cmostek.com
Copyright © By CMOSTEK
V1.2 | Page 1/92
