Summary of Contents for PestWest flyDetect

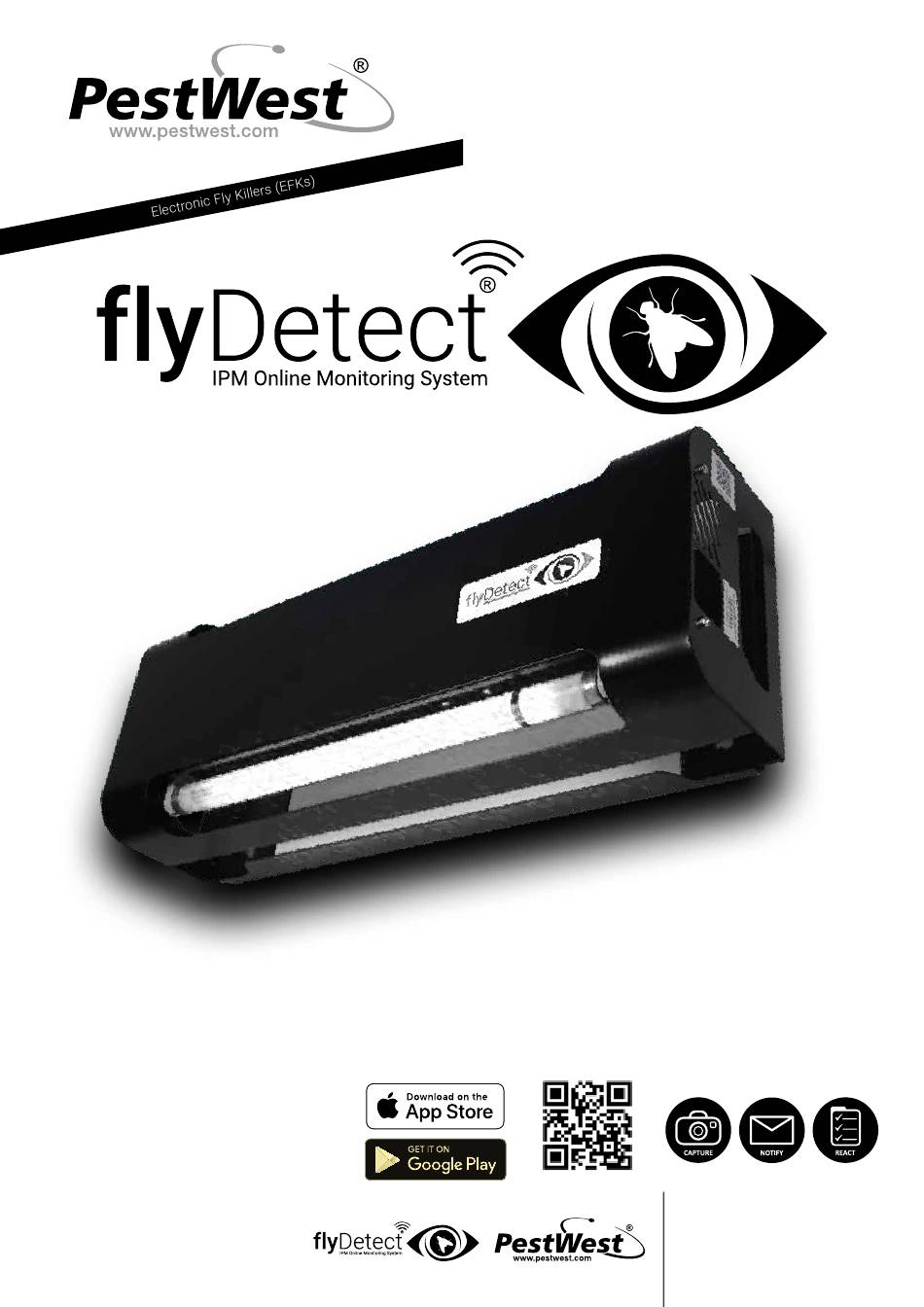

- Page 1 MARCH 2020 FLYDETECT® - INSTRUCTIONS FOR USE For more information please visit www.flydetect.com Scan the QR Code to see the flyDetect video Confidence in PestWest Electronics Limited Wakefield Road, Ossett, West Yorkshire, UK. Fly Control t +44 (0)1924 268 500...
-
Page 2: Table Of Contents
SITING INTERNET CONNECTIVITY CHECKING INTERNET SIGNAL STRENGTH ELECTRICAL SUPPLY INSTALLATION WALL MOUNTING CEILING SUSPENSION INSTALLING TRAPS WITH THE flyDetect® MOBILE APPLICATION CLEANING AND MAINTENANCE SERVICING CHANGING THE STICKY BOARD CHANGING THE UV TUBES CONNECTION PORT COVER PLATE REPLACEMENT PARTS CONNECTIVITY HARDWARE... -
Page 3: Precautions
HARDWARE OVERVIEW All PestWest® fly control traps are made using the highest quality materials. The bodywork of the flyDetect® trap is made from polyester powder coated zintec steel (rust-resistant). The trap is fitted with Quantum® BL tubes with FEP shatter resistant coating as standard to EN61549. These tubes are powered by a state-of-the-art high frequency electronic ballast that is more energy efficient than traditional magnetic ballasts, as well as being entirely automatic no separate starters are required. -
Page 5: Flydetect® System Overview
See the CHANGING THE STICKY BOARD section for full instructions. Once an image has been taken, it is then sent over the internet to the flyDetect® server, where it will be analysed against a pre-selected alert level chosen by you. Once your selected threshold has been exceeded, the system will send out an alert to the designated servicing technician via email, with the associated image of the sticky board attached for further analysis. -
Page 6: Account Creation
ACCOUNT CREATION Before installing your first physical flyDetect® trap at a site, you must create an account on the flyDetect® web application by visiting the link below. This can only be accessed from a desktop computer, or laptop. https://flydetect.net/register NOTE: You must have a valid flyDetect® serial number available, which is not currently registered on the system in order to validate your account. -
Page 7: Flydetect® System Credits
SYSTEM CREDITS Your flyDetect® account must be in positive credit for it to be fully operational. Credits are not trap specific but are added to an overall account balance which all your installed flyDetect® traps draw from. Each new flyDetect® trap comes pre-loaded with one years’ worth of credit (365 credits), which is activated at the point of initial installation onto the flyDetect®... -
Page 8: Alert Status - Traffic Light Priority System & Progress Bar
These coloured markers will also feature on the map, which is located on the dashboard of both the mobile and web applications. The most severe flyDetect® trap status at a given site will be displayed, based on the following scale of severity (with black being the most severe and green being the least severe): •... -
Page 9: Internet Connectivity
The preferred internet connection method should be established and tested for signal strength and stability prior to trap installation as part of a site survey. Each flyDetect® trap comes with a Wi-Fi antenna included in the box, ideal for connecting to existing Wi-Fi networks. -
Page 10: Wall Mounting
WALL MOUNTING The flyDetect® trap has 4 keyhole slots on the rear panel to permit wall mounting, using the screws and masonry plugs provided. The trap can be mounted either horizontally or vertically. Only 2 keyholes should be used for horizontal mounting, whilst 4 keyholes should be used in vertical mounting for added stability. - Page 11 3. Align the ceiling suspension bracket with the screw holes and reinsert the screws and washers using a pozi-drive screwdriver. Ensure the screws are tightened securely. 4. Repeat steps 1-3 for the opposite end of the trap. 5. Attach desired ceiling suspension hardware such as hooks and chains, or wire cable.
-
Page 12: Installing Traps With The Flydetect® Mobile Application
INSTALLING TRAPS WITH THE flyDetect® MOBILE APPLICATION Before installing your first physical flyDetect® trap at a site, you must create an account on the flyDetect® web application, create at least one client/site and create sub divisional areas, See the ACCOUNT CREATION section for more details. -
Page 13: Changing The Sticky Board
Using the flyDetect® mobile application, on the main dashboard press the ‘Service’ icon and using your mobile phone’s camera, scan the QR code located on the right-hand side of the flyDetect® trap. Scroll to the ‘servicing’ section and check the box for ‘Change the sticky board’ and then press ‘SERVICE’ . -
Page 14: Changing The Uv Tubes
Using the flyDetect® mobile application, on the main dashboard press the ‘Service’ icon and using your mobile phone’s camera, scan the QR code located on the right-hand side of the flyDetect® trap. Scroll to the ‘servicing’ section and check the box for ‘Change UV tubes’ and then press ‘SERVICE’ . -
Page 15: Replacement Parts
Huawei P20 Pro (and above) Google Pixel 2 (and above) Customers are not prohibited from using flyDetect® on untested devices, but PestWest® cannot guarantee that such devices will work as intended. This list of devices is subject to change without advance notice. - Page 16 NOTES...
- Page 17 NOTES...
- Page 18 FLYDETECT® - INSTRUCTIONS FOR USE For more information please visit www.flydetect.com Scan the QR Code to see the flyDetect video Confidence in PestWest Electronics Limited Wakefield Road, Ossett, West Yorkshire, UK. Fly Control t +44 (0)1924 268 500 e info@pestwest.com www.pestwest.com...
