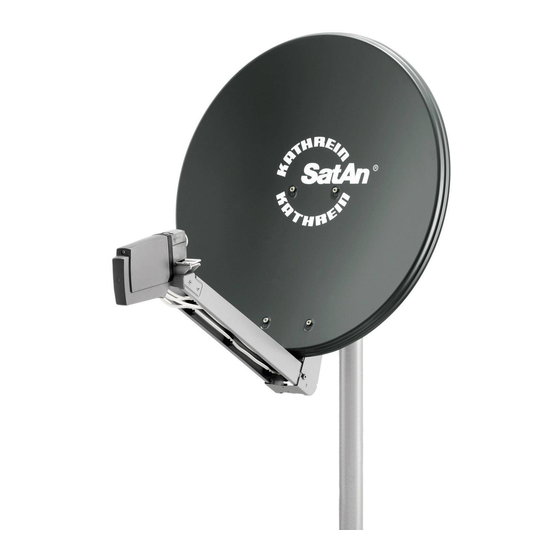

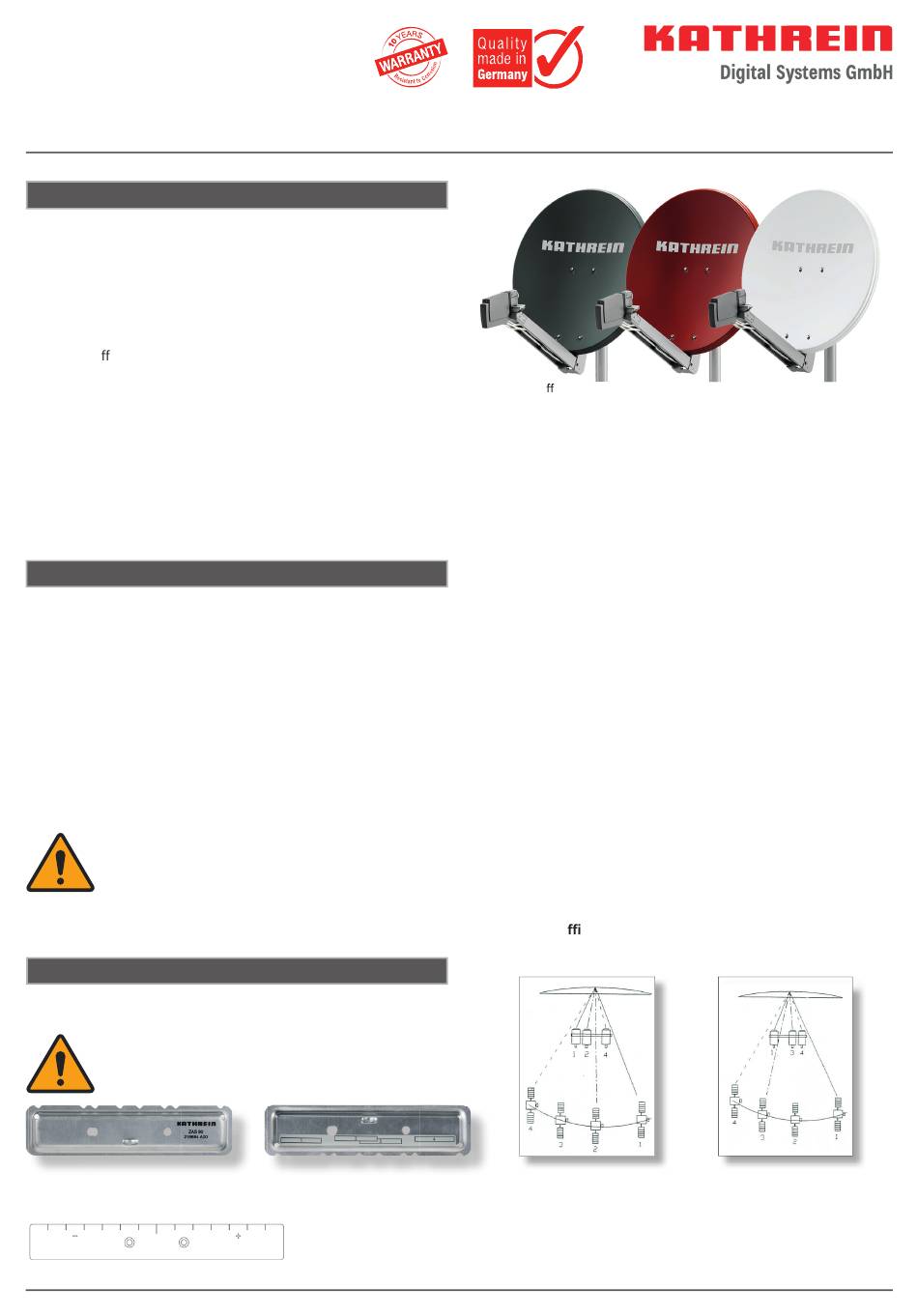

Kathrein CAS 80gr Manual

CAS 80gr 20010027
CAS 80ro
20010028
CAS 80ws 20010029
Sat Antennas
Features
■
Refl ector made of aluminium, powder coated
■
Feed system support made of galvanised sheet steel,
powder coated
■
Mast clamp made of sheet steel, hot-dip galvanised
■
Optimal electrical data in lowest mechanical dimensions
due to o set-feed
■
Available in graphite, white or red brown
■
Items supplied: Refl ector with pre-assembled mast and
feed system support, user manual
■
Patented tilt facility at the multi-feed adaptor plate, allows
optimisation of the LNB positions for multi-feed reception
■
The optimum performance of the satellite antennas is only
given in conjunction with the original Kathrein LNBs.
Intended Use
The CAS 80 parabolic antenna is intended solely for the reception of satellite signals and for use only as a domestic antenna.
DIN 4131 specifi es that a domestic antenna has no more than 6 m free mast length and a fi xed-end moment up to 1650 Nm.
It is unsuitable for mounting on structures that are liable to vibration.
Make absolutely sure that the values for the maximum load listed in the Technical Data (on the last page) are complied with.
If this load is exceeded, parts could break away!
The CAS 80 parabolic antenna is designed for use with a feed system (LNB) for reception of the signals from one satellite position, or
two feed systems for multi-feed applications for reception of the signals from two satellite positions with 3° – 4° or 6° satellite spa-
cing.
When the additional ZAS 90 or ZAS 1218 multi-feed adapter plate is used, the parabolic antenna is also suitable for three feed sys-
tems. The feed systems and instructions for their installation are not included in the scope of supply of the parabolic antenna.
Do not use the parabolic antenna for purposes other than those listed in this manual! Any use other than that specifi ed
above will void the warranty or guarantee.
In particular, never modify any of its components or fi t any components other than those expressly intended by the
manufacturer for use with the antenna.
Breach of these rules may lead to the antenna no longer being su ciently stable and safe!
Optional Accessories
■
ZAS 90, order no. 218684 multi-feed adapter plate
Installation items 2 and 3 cannot be mounted
at the same time.
■
ZAS 1218, order no. 204500011 multi-feed adapter plate
Without notches for any satellite spacing
Printing may di er Printing may di er
■
Without additional components, two universal feed sys-
tems to receive the signals of satellites 3° or 4° (e.g. ASTRA
19.2°/23.5°) or 6° apart (e.g. ASTRA/EUTELSAT-HOTBIRD) can
be mounted on the boom.
For other satellite spacings, the multifeed adapter plates
ZAS 90 (Order no: 218684) and ZAS 1218 (Order no: 204500011)
are available (see „Optional Accessories" on page 1).
1 / 26
