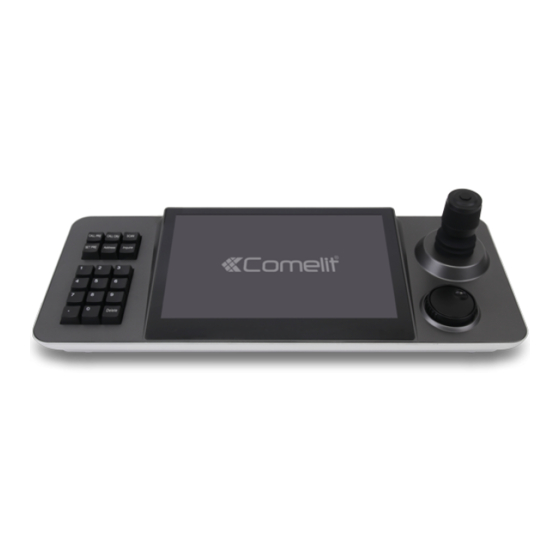

IP KEYBOARD ADVANCE SERIES
Please read this manual thoroughly before use and keep it for future reference

Advertisement

Table of Contents
loading

Related Manuals for Comelit IPKYBA02A

Summary of Contents for Comelit IPKYBA02A

  • Page 1 IP KEYBOARD ADVANCE SERIES Please read this manual thoroughly before use and keep it for future reference...

  • Page 2: Table Of Contents

    Contents Introduction ........................1 Introduction ........................1 Features .......................... 1 Rear Panel Instruction ....................2 Front Panel Instruction ....................3 Rules of Key Press ......................3 Joystick and Knob Control .................... 4 Login ..........................5 Start the Keyboard ......................5 Login ..........................
  • Page 3 Display Connection Status ................19 5.6.1 Display the Real Time Image of the Designated Window ......19 5.6.2 Specifications ......................20...

  • Page 5: Introduction

    1 Introduction 1.1 Introduction The real-time image can be viewed on the keyboard screen and the image can be displayed on the external monitor through the HDMI Interface. It supports H.265 1 CH 4K@30fps; H.264 1 CH 1080P@60fp and 4 CH 720P@30fps decoding and its 4D Joystick can be used for PTZ control and fast positioning target.

  • Page 6: Rear Panel Instruction

    1.3 Rear Panel Instruction The interfaces of the rear panel are for reference only. Name Description Power Switch Power switch Power Interface Standard 5.5/2.1 Power Interface, DC 12V2A±10% Network RJ45 Ethernet connector Interface Audio Audio input (unavailable temporarily) Connector for USB mouse or USB storage device USB2.0 for upgrade Connector for a monitor used to display the image...

  • Page 7: Front Panel Instruction

    1.4 Front Panel Instruction The following picture is for reference only. Function Name CALL PRE Call preset SET PRE Set preset CALL CRU Call cruise SCAN Start/stop auto scan （unavailable） Address Inquire In PTZ mode, press this button to view the device list Input the number/symbol Delete Cancel the number/letter/symbol...

  • Page 8: Joystick And Knob Control

    digital number and ends with the functional button. For example: 1+MON (Press/Tap 1 on the keyboard or on the screen, and then tap MON on the screen)—select NO.1 TV Wall. 1.6 Joystick and Knob Control Joystick Operation Function Control the speed dome to move up. Down Control the speed dome to move down.

  • Page 9: Login

    2 Login 2.1 Start the Keyboard Connect network cable and power supply and then start the keyboard. Turn on the power switch. 2.2 Login After the device is started, it will enter the login interface as shown below. The default username is “admin” and the default password is “admin” as well. Tap the grey box and then tap the corresponding letters on the soft keyboard.
  • Page 10 to confirm. Then tap “LOGIN” to go to the main menu interface After that, tap In the above interface, tap “Logout” to exit.

  • Page 11: System Settings

    3 System Settings 3.1 Network Settings  Type: Static IP, DHCP and platform are optional. You can set static IP or DHCP for the keyboard. It is recommended to choose “Static IP”.  The default network type is DHCP. It is recommended to choose “Static IP”. ...

  • Page 12: Language Setting

    Tap “Add” to add users. User Type: administrator or operator is optional. Compared with the administrator, the operator has no user management permission. Please set the user and password as needed. Select the added user and tap “Delete” to delete this user. The default admin cannot be deleted.

  • Page 13: Date And Time Setting

    3.4 Date and Time Setting Tap “System Setting”  “Date and Time” to go to the following interface. In this interface, you can set the date and time and zone as needed. 3.5 Enable/Disable Key-Touch Sound Go to “System Setting”  “Hardware Setting” interface. In this interface, you can enable or disable key-touch sound.

  • Page 14: Ptz Mode

    4 PTZ Mode In the main menu interface, tap “PTZ Mode” to go to the following interface. to extend the menu.  Quickly Add Devices Tap “Device Management” to go to the following interface. Then tap “Quickly Add” to quickly search and add devices in the same local network.
  • Page 15 Select the desired device and tap to add this device. Then enter its username and password.  Manually Add In the device management interface, tap “Manually Add” to appear the following interface. Manually enter the IP address, port, username and password. Then tap to save the settings.
  • Page 16 After the devices are added, you can view the device list. to display the buttons as shown above. Select the device and then tap “Edit” to modify the username and password of the added device; tap “Delete” to delete the device. to extend the menu.
  • Page 17 Press and hold the IP address or double tap the IP address to view the video of this device as shown below. Tap at the lower right corner of the playing window and then tap “Change” to change another device; tap “Delete” to stop playing. Double tap a window to switch to single channel display mode.
  • Page 18 PRE”. For example: press “3” and “CALL PRE” to call preset 3. To set preset: Select the PTZ camera, move the joystick to set the position of the preset, press the digital number and then press “SET PRE”. For example, press “3” and “ SET PRE” to save preset To call cruise Select the PTZ camera, press the digital number on the keyboard and then press “CALL CRU”.

  • Page 19: Platform Mode

    5 Platform Mode Notes: Only one channel image can be displayed on the LCD display screen. Area ①: call TV wall/window/camera. Area②: functional area. Move your finger left or right to choose the relevant functions. 5.1 Call Plan You may set the plan in advance and then call it through network keyboard. The operation steps are as follows.

  • Page 20: Screen Display Mode

    to save this plan. When controlling plans, the number of the plan can be viewed through clicking TV Wall ManagementTV Wall ViewTV Wall Plan. You can also edit this plan in this interface. The setting steps are as follows: In the TV Wall Plan interface, click beside the plan name to edit it.

  • Page 21: Set Or Call Preset

    4. Control the PTZ camera by moving the joystick. When moving the joystick back to the original place, the speed dome stops moving. Set or Call Preset 5.4.2 To set preset 1. Select a TV wall. For example: tap “1” and then tap “MON” to choose NO.1 TV wall. 2.

  • Page 22: Set, Call Or Stop Track

    Set, Call or Stop Track 5.4.4 To record track 1. Select a TV wall. For example: tap “1” and then tap “MON” to choose NO.1 TV wall. 2. Select a window. For example: tap “3” and then tap “WIN” to choose NO.3 window. 3.

  • Page 23: Play The Previous 30S

    5.5.3 Play the Previous 30s You may play the record of the previous 30 seconds. The setting steps are as follow. 1. Select a TV wall. For example: tap “1” and then tap “MON” to choose NO.1 TV wall. 2. Select a window. For example: tap “3” and then tap “WIN” to choose NO.3 window. 3.
  • Page 24 2. Call a camera on a window for playback: “Playback” will be shown on the screen but the screen is black and no video can be played. 3. Call a camera group in a specific window. “Live View” will display on the window and the videos in the camera group will automatically switch.
