APPENDIX
DRY CONTACT
A dry contact means that no electricity is connected to it. It is prepared for free connections. The Relay Output
contacts provided in this keypad system are dry contacts.
N.C.
Normally Closed, the contact is closed circuit at normal status. It is open circuit when active.
N.O .
Normally O pen, the contact is open circuit at normal status. It is closed circuit when active.
TRANSISTOR OPEN COLLECTOR OUTPUT
An open collector output is equivalent to a Normally O pen (N.O .) contact referring to ground similar to a relay
contact referring to ground. The transistor is normally OFF , and its output switches to ground (-) when active.
The open collector can only provide switching function for small power but it is usually good enough for
controlling of an alarm system. The Duress, Inter-lock and Key Active O utputs of the keypad are open collector
outputs.
OPENCO LLECTO R
O UTPUT ----
O utput switches to
ground when activates
N.O . CONTACT
OUTPUT ----
EQUIVALENT
Output switches to
ground when activates
VERSION: 11/09
VA NDA L RESISTA NT
BA CK-LIT WEATHERPROOF
DIGITA L A CCESS CONTROL KEYPA D
D C60SS, D C50SS & D C50FS
Pr og r am m ing & In st allat ion M anu al
FOR ELECTRIC LOCK, INTER-LOCK
AND SECURITY SYSTEM INSTALLATIONS
Advertisement
Table of Contents
Related Manuals for Comelit DC60SS
Summary of Contents for Comelit DC60SS
- Page 1 APPENDIX DRY CONTACT VA NDA L RESISTA NT A dry contact means that no electricity is connected to it. It is prepared for free connections. The Relay Output contacts provided in this keypad system are dry contacts. BA CK-LIT WEATHERPROOF N.C.

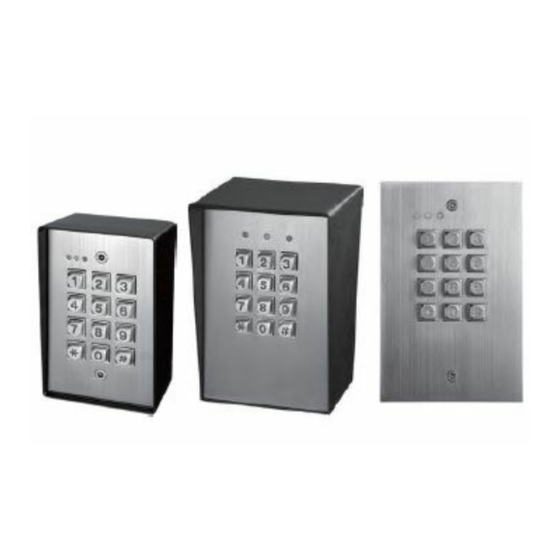

- Page 2 The DC60SS is in the size of fitting to the electric single gang box. It can be surface mount with its aluminum housing or flush mount on wall.
-
Page 3: Application Hints For The Auxiliary Terminals
APPLICATION HINTS FOR THE AUXILIARY TERMINALS NOTE: (1) Cut a rectangular hole on wall carefully for the back box in its right size and depth to ensure that the back box and the faceplate can be tightly shielded together with its rubber pad while they are fixed on wall. (A) TAMPER N.C. -
Page 4: The Led Indicators
THE DAP JUMPER (DIRECT ACCESS TO PROGRAMMING) An inter-lock system needs two door controllers. This application example uses two of DC60SS, DC50SS or DC50FS If the Personal Master Code is forgotten, use the DAP jumper to override the forgotten code permitting the keypad direct with simple cross wire connection on their "Output 1 Inhibit"... -
Page 5: Authorization Code
2 ) B AS I C W I R I N G S O F A S TAN D ALO N E D O O R LO C K W I T H I N H I B I T PROGRAMMING OPTIONS -- SUMMARY CHART AUTHORIZATION CODE A) Use The Factory-set Master Code to Entry in Programming -- When starts for the first time... - Page 6 APPLICATION EXAMPLES F) Door Forced-Open Alarm -- Installer Programming 1) BASIC WIRINGS OF A STAND ALONE DOOR LOCK Locations Code of F unctions Validation Comments Door F orced-O pen Alarm is Enabled Door F orced-O pen Alarm is Disabled G) Output Activation Announcer -- Installer Programming Locations Code of F unctions Validation...
- Page 7 SINGLE USER MODE OR MULTI-USER MODE SELECTION The keypad consists two sets of software for owner's selection in user code programming. They are "Single User Mode" and "Multi-User Mode". The keypad has been set with a Master Code of "0000" and in Single User Mode at the factory. If your required mode is Multi-User, you have to refresh the system with the appropriate comment code, 8901, to set it into Multi- User Mode.
- Page 8 SET THE SYSTEM TO SINGLE USER MODE D) DELETEUSER (MUL TI-USERMODE) The system can be set to Single User Mode with the command code "8900" and will stay in that mode until the system If you need to delete a user who has left the company or who no longer has authority to enter the protected area: is refreshed for other mode.
-
Page 9: Operation Examples
The Personal Master Code is a Super User Code to command the outputs. This feature allows the owner PROGRAMMING AND USE OF THE KEYPAD -- OPERATION EXAMPLES to use only one code to operate several keypads if they are having the same Master Code but different user codes. - Page 10 NOTE: a) * * Enter the Single User Mode Command Code "8900" may not be necessary if the keypad was C) MUL TI-USER MODE OPERA TION -- An Example already in Single User Mode. 1) Requirement b) In case of wrong entry during programming, cancel it with key, or, wait 10 seconds, then re-try.
