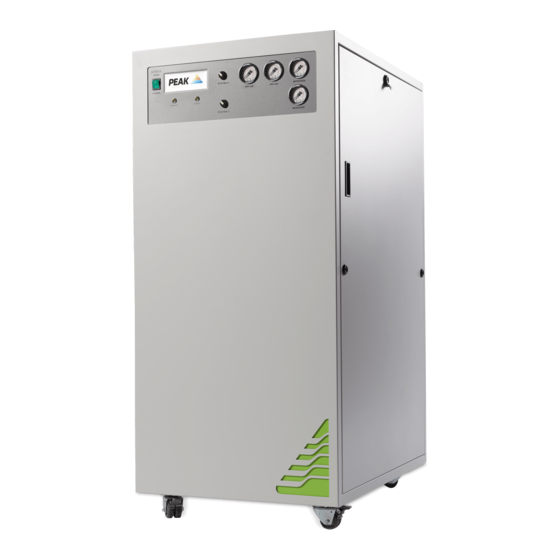

Installation Guide – Genius 3040 Generator
Fountain Crescent
Inchinna Business Park
Inchinnan, PA4 9RE
Scotland, UK

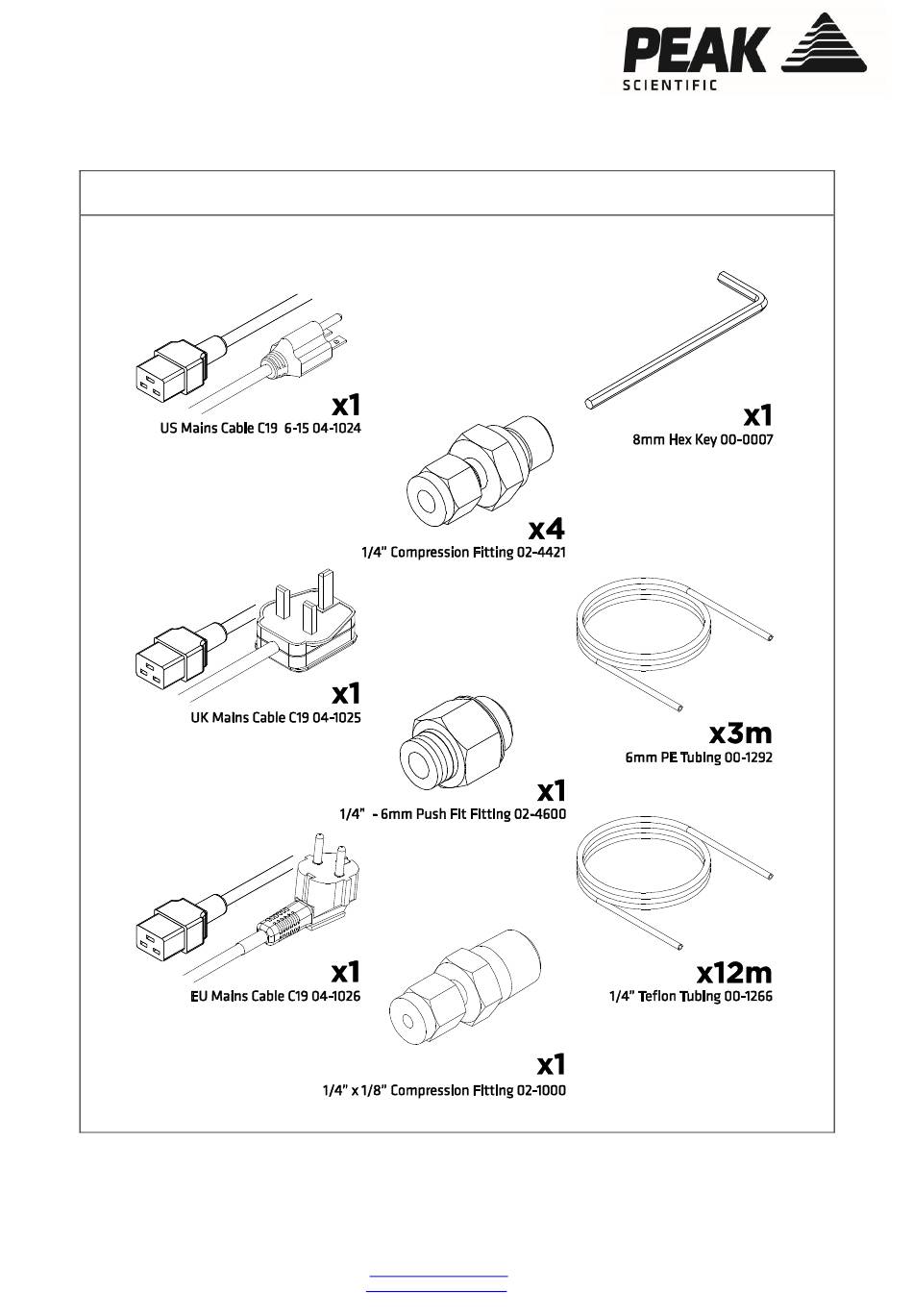

FITTINGS KIT
T: +44 (0)141 812 8100
F: +44 (0)141 812 8200
W:
www.peakscientific.com
E:
info@peakscientific.com
Part No. IG-Genius3040
Rev.
3
Page
Page 1 of 9
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Peak Scientific Genius 3040
Summary of Contents for Peak Scientific Genius 3040
- Page 1 Installation Guide – Genius 3040 Generator FITTINGS KIT Fountain Crescent T: +44 (0)141 812 8100 Part No. IG-Genius3040 Inchinna Business Park F: +44 (0)141 812 8200 Rev. Inchinnan, PA4 9RE www.peakscientific.com Scotland, UK info@peakscientific.com Page Page 1 of 9...
-
Page 2: Installation
INSTALLATION Unpack the generator from An earth lead is connected the shipping crate and place Using the Hex-Key provided in to the inside of the panel. on a flat surface. To remove the fittings kit, turn the locks This can be disconnected the transit brackets, firstly to the right. - Page 3 Repeat steps 4 and 5 to remove the LH transit Remove the LH side panel as before, brackets located under both of the LH taking care to disconnect the earth lead compressors. These will pull out in the same located on the inside of the door panel. way.
- Page 4 If the displayed voltage is 219V or less* we would highly recommend fitting a transformer. This can be ordered directly <= 219V from Peak Scientific, Peak part number is... 06-3210 – Dual Tap Transformer 200V – 230V >= 194V Fountain Crescent T: +44 (0)141 812 8100 Part No.
- Page 5 Switch the generator power OFF at the Remove the mains cable completely from the switch on the front panel. power supply. Re-attach both the RH & LH side panels to the generator, taking care to ensure the Once the side panels are securely assembled, earth lead’s are reconnected correctly.
- Page 6 The desired system which is to be used Select desired system, using highlighted must run for a minimum of 30 mins before switches. connecting to application. Leave the generator switched on for a period Switch the generator back ON. of 30 minutes to purge the system. The ‘CURTAIN’...
- Page 7 ¼” Compression Fitting Select the ¼” fitting and attach to the ‘ ’ ‘SOURCE’ ‘EXHAUST’ & CURTAIN The purge run is now complete. Once the ‘NITROGEN’ ports. It is recommended that pressure gauges on the front of the generator read 0. PTFE tape is applied to the thread to ensure a leak-tight fit.
- Page 8 CD supplied in the fittings kit. Please keep this for future reference. It is very important to register your generator with PEAK SCIENTIFIC. This will initiate your warranty entitlement. Please use the form on the next page to register your generator. You will need the generators serial number which can be found on the serial label on the rear of the generator.
- Page 9 Fountain Crescent T: +44 (0)141 812 8100 Part No. IG-Genius3040 Inchinna Business Park F: +44 (0)141 812 8200 Rev. Inchinnan, PA4 9RE www.peakscientific.com Scotland, UK info@peakscientific.com Page Page 9 of 9...
