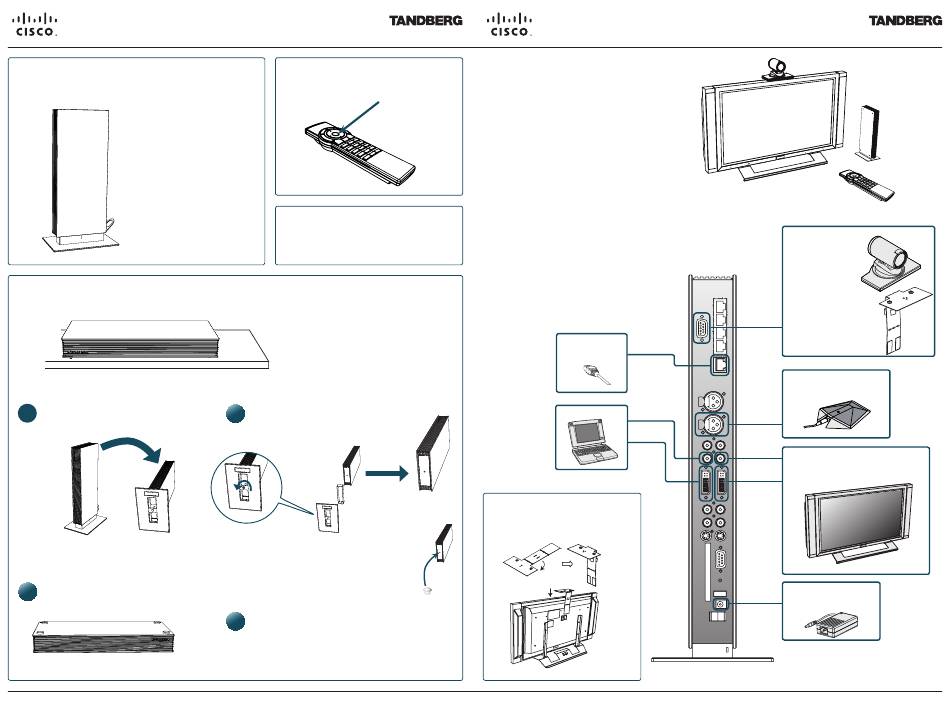

Cisco TANDBERG Edge MXP Installation Sheet

Using the unit
Using the unit out of the box
The Edge MXP can be used as is, out of the box. Just place the unit on the
desktop and connect the cables as shown to the far right and it is ready to
use.
CAUTION: Never place the
unit as shown without the
base mounted!
Placing the unit on a shelf
The Edge MXP can be placed on a shelf.
1 Put the Edge codec on its back.
3 Turn the unit upside down and mount the rubber
feets over the screws.
78-19994-01 Edge MXP Installation Sheet, March 2011 © 2011 Cisco Systems, Inc. All rights reserved.
Edge MXP
TIP
If the menu is not already present, press the OK/Menu
key on the remote control to open the menu. Navigate in
the menu with arrow keys and OK.
User documentation
See the user documentation for more information.
Go to: http://www.tandberg.com/docs
and: http://www.cisco.com/go/telepresence/docs
2 Unscrew the base, using the enclosed screwdriver.
CAUTION: Do not place the screw back in in the
base if the base plate has been removed and the
bracket is not to be used. Doing so may damage
the codec's interior and will void the warranty.
Use the enclosed rubber plug instead.
Insert the rubber
plug in the
4 Connect cables as
hole that held
shown to the far right.
the screw just
unscrewed.
Installation sheet
This box contains:
•
Cisco TelePresence Edge unit
•
Cisco TelePresence PrecisionHD camera
•
Edge unit wall mounting bracket
•
PrecisionHD camera bracket
•
Screwdriver (PH2)
•
Rubber feets and rubber plug
•
Microphone and microphone cable
•
HD camera cables, 2 m & 5 m
•
LAN/Ethernet cable
•
ISDN cables
•
DVI-I to DVI-I cable (for monitor connection)
•
DVI-A to VGA adapter
•
DVI-I to HDMI adapter
•
Audio cable
•
DVI-I to VGA cable with mini-jack to stereo RCA
audio cable (for PC connection)
•
Cable sleeve
•
Cable ties
•
Power supply
•
Country specific cable
•
Remote Control and batteries
LAN/Ethernet
PC
* Installation of the camera bracket with the
Flat Panel Display Option: A wall mounted
screen must have minimum 140 mm distance
from the front of the screen to the wall.
78-19994-01 Edge MXP Installation Sheet, March 2011 © 2011 Cisco Systems, Inc. All rights reserved.
Edge MXP
PrecisionHD
camera
The camera
must be installed
properly by aligning
the camera on the
fixing bolt and the
magnets on the
camera bracket.*
Microphone
Audio Out
Monitor
DVI-I to DVI-I
Power Supply
