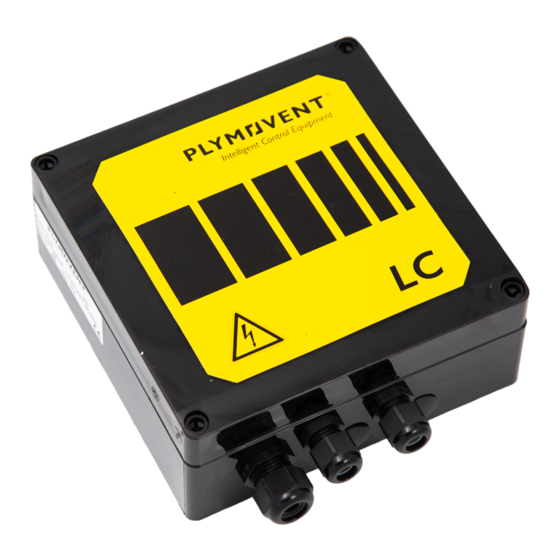

    ICE-LC PRODUCT USER MANUAL ICE-LC List of contents Technical data ......2 Safety information ......2 Function........2 Installation........3-5 Overrun time .......6 Spare parts ........6 Declaration of conformity...7-8 Factory PlymoVent AB P.O. Box 527 SE-921 28 Lycksele, Sweden Tel: +46 950 57 67 00 Fax: +46 950 57 67 90 info@plymovent.se...

  • Page 2: Technical Data

    TECHNICAL DATA Model ICE-LC Enclosure IP66 (EN 60529) / UL94-V2 Ambient temperature Max. 40°C /105°F (24h avg. max.35°C/ 95°F) Min. 0°C / 32°F (full operation) Temperature storage/transport -10°C to 65°C / 15 to 145°F Supply voltage 110-120 VAC / 208-240 VAC /380-420 VAC Primary fuse 0.4 AT (slow blow)

  • Page 3: Installation

    INSTALLATION MECHANICAL INSTALLATION • T h e ICE-LC should be mounted on a vibration free surface. 175mm 160mm Ø 6mm 6,9” 6,3” 1/4” 100mm 160mm 175mm 4” 6,3” 6,9” ELECTRICAL INSTALLATION Important information • T h e unit may not be installed in an explosive environment. • A lways check that main power is turned off prior to installation of the LC control box. • I n stallation should be conducted by a qualified electrician.
  • Page 4 INSTALLATION Motordriven damper connection (MD-X) Inductive Sensor (MCC-05) connection 1/Blue 3/Black 2/Brown S-100, SK-300 & hood light connection PUM_ICE-LC_100304_EN 4/8 www.plymovent.com...

  • Page 5: Overrun Time

    To adjust the overrun time of the LC unit please locate the blue potentiometer wheel on the circuit card. To increase the time, turn the wheel clockwise, and to decrease the time turn it counter clockwise. Do not position the wheel in the outermost directions. PUM_ICE-LC_100304_EN 5/8 www.plymovent.com...

  • Page 6: Spare Parts

    SPARE PARTS ICE- LOCAL CONTROLLER, MD-dampers handed over, copied, xeroxed or translated into another language, in any form or any means without written permission from PlymoVent AB. PlymoVent AB reserves the right to make design changes. Produkt No: Decription All models ICE-LC...
