thank you for purchasing castle creations' cc bec switching power
regulator. We think you'll find it to be the most capable and flexible
bec on the market. please use this product within its capabilities.
UP TO
6S/25.2v
BATTERy
PACK

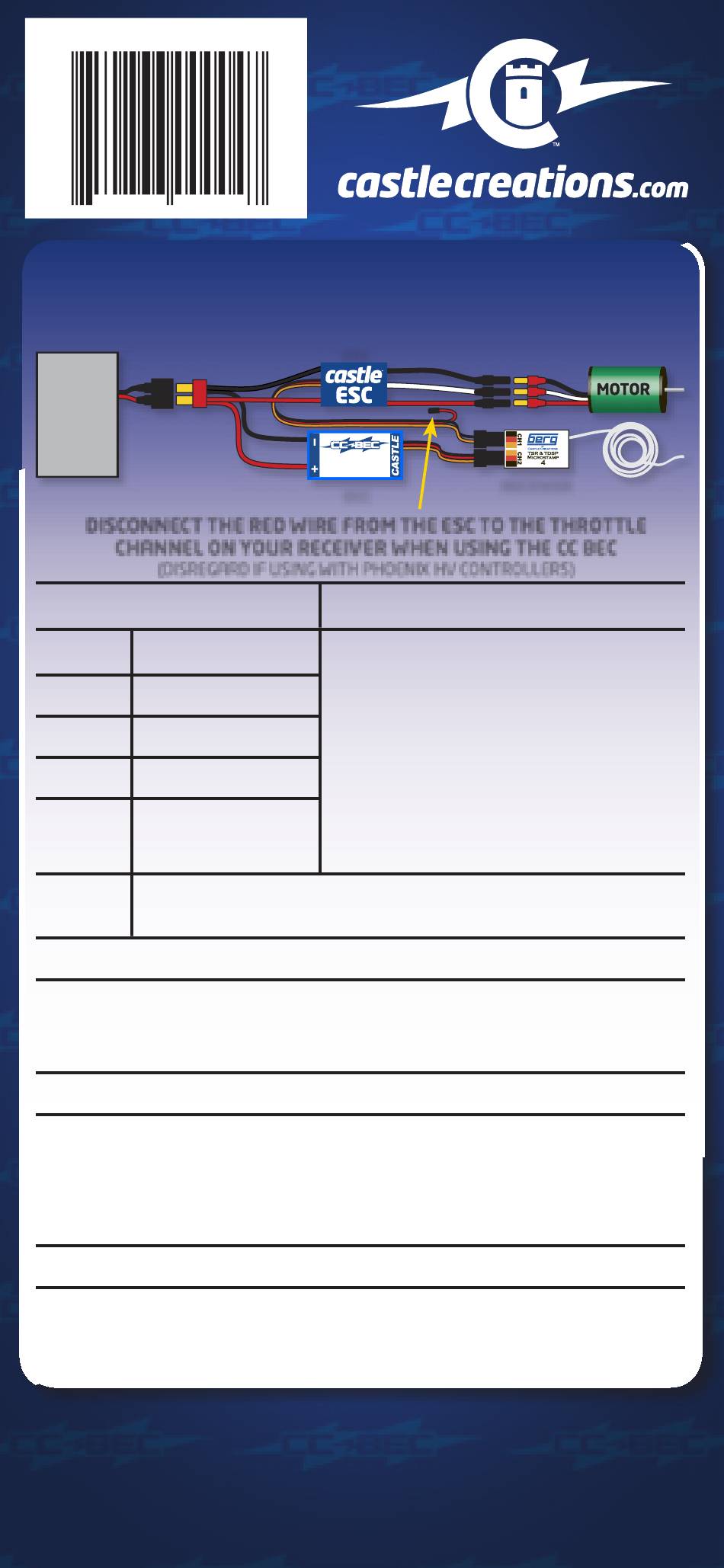

DISCONNECT THE RED WIRE fROm THE ESC TO THE THROTTLE
CHANNEL ON yOUR RECEIvER WHEN USING THE CC BEC
(DiSRegaRD if uSing WitH pHoenix Hv contRolleRS)

specificatiONs

length: 1.2" (30mm)
Width: 0.6" (15mm)
Height: 0.4" (10mm)
Weight: 0.4 oz (11 grams)
input 5v to 25.2v
voltage: (2S to 6S lipo)
leD on indicates proper function of cc bec. if leD is off ,
leD:
check for proper setup.
Default setting: 5.1 volts. user selectable in 1/10th volt increments
between 4.8 and 9 volts.
castle link uSb interface required to change output voltage (sold separately).
in the event that the input voltage falls below the desired output
voltage, the cc bec output is essentially equal to the input level.
cc bec cannot output more voltage than the battery it draws from.
the cc bec will not operate or produce any output when input voltage
drops below 4.0 volts.
always range check your model. this device should be treated
much like a speed control. try to keep as much distance as possible
between the radio receiver and components and the cc bec unit.
Designed in Kansas. components manufactured in the uSa, mexico, and china.
castle creations, inc. warrants this product to be free from manufacturing defects for a
period of one year from date of purchase.
this product may contain chemicals known to the State of california to cause cancer and
or birth defects or other reproductive harm. Do not ingest this product, it may hurt you.
© 2009 caStle cReationS, inc.
7
ESC
10 amp peak
6S (25V) ma x in 4.8V-9V out
BEC
peak: 10 amps
continuous:
<12 volts input = 7 amps*
<24 volts input = 5 amps*
*Ratings are determined with a 5mph
airflow on the bec. Servo connectors are
not rated for current in excess of 5 amps.
users are encouraged to replace the
connectors if more than 5 amp currents
are anticipated.

VOLtage Output

LOw iNput VOLtage

rf NOise

p/n: 095-0022-00
RECEIvER

curreNt Output

ReviSion Date - 02/2009
