- Page 1 Operator's Manual WeedHex AS 50 From serial number: 032919010001 Issued: 31 January 2019, V12.0 en-Translation of the Original Operator's Manual...
-
Page 2: Notes On The Operating Manual
dummy Intended use Notes on the operating manual The device is exclusively intended for cleaning paved areas and edges where moss and Dear customer, weeds are growing. Congratulations on your purchase. You have Only use attachments and cutting tools autho- acquired a reliable quality product by rised by “AS-Motor Germany”. -
Page 3: Table Of Contents
Contents Maintenance..........Notes on the operating manual..... Maintenance overview......19 Contact ............ Cleaning the device......... 21 Device data..........Basic inspection........21 Checking the engine brake...... 21 Intended use..........Checking the brushes......22 Explanation of the symbols....Changing the brushes......22 Symbols in the instructions...... -
Page 4: Explanation Of The Symbols
dummy Inhaltsverzeichnis Explanation of the symbols Notice Danger of property damage Symbols in the instructions Indicates a possible risk of damage of the device and its surroundings. In these operating instructions, the following symbols are used to denote special dangers. Signs on the device Warning. - Page 5 Type plate Noise is causing health prob- lems. Use personal ear protec- The type plate on the device provides you tion to avoid hearing damage. with information on the device type and the technical data. Do not clean the device with wa- ter spray or high-pressure cleaner! 1 Name and address of the manufacturer...
-
Page 6: Safety Instructions
Safe handling of fuel Safety instructions Fuel is toxic and highly flammable. There is a Get informed! burn and explosion hazard! Keep fuel away from ignition sources and do For your safety, read these operating instruc- not smoke during handling. tions carefully. -
Page 7: Check The Device Prior To Use
First aid Danger area When swallowing fuel or inhaling fuel vapours, do not force vomiting and immediately consult a doctor. In case of skin contact, immediately wash with water and soap. Change your soiled clothing as soon as you can. Measures in case of a fire In case of a fire, use foam, dry powder extin- guisher, or carbon dioxide (CO... -
Page 8: Use Caution During Operation
Use caution during operation Prior to brushing Danger of injury during motor start Personal protective measures Do not start the engine During brushing, always wear – if fuel was spilled. safety shoes with good grip, long trousers, and gloves. Do not –... -
Page 9: Use Caution During Brushing
Use caution during brushing Fire hazard The brushes produce sparks as they stroke Risk of injury over the stones. Risk of injury caused by ejected objects. Never There is a burn and explosion hazard. brush when persons, children, pets or objects –... -
Page 10: When Work Is Completed
When facing downhill, the device can roll Use caution during maintenance away. Park the device on level ground only and repair and secure it against rolling away. Only carry out maintenance work as described Devices fitted with a four stroke engines may in these operating instructions. -
Page 11: Device Description

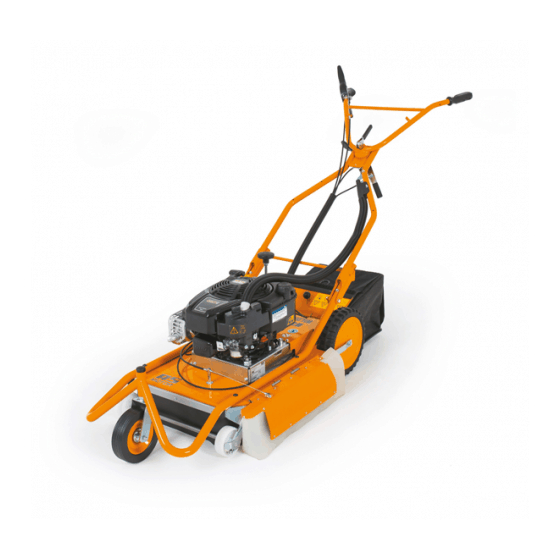

Device description 1 Steerable front wheel 11 Adjustment of contact pressure of brushes 2 Protection bow 12 Starter grip 3 Protection skirt 13 Ventilation grid 4 Spark plug connector 14 Tank filler spout 5 Silencer 15 Fuel valve 6 Rear flap 16 Air filter 7 Collection bag 17 Type plate... -
Page 12: Control Elements
Lever for lateral adjustment of Control elements handlebar (D) 1. Release the eccentric tension lever. 2. Attention: Do not crush the Bowden cables when pivoting the handlebar. Swivel the handlebar to the side to the de- sired position. 3. Clamp the handlebar with the eccentric ten- sion lever. -
Page 13: Information On Brushing
Information on brushing Prior to starting Prior to brushing, check the device for com- Fuel pleteness, proper function, and cleanliness. A dirty ventilation grid causes overheating of the As fuel, use unleaded petrol (see operating in- engine which can result in engine damage. A structions of the engine manufacturer). -
Page 14: Starting
Starting Adjusting the contact pressure of the brushes Warning During startup, there is a risk of injury Notice caused by the rotating brushes. During adjustment of the brushes, damage ► Make sure that no one is within the to the ground can occur. danger zone of the brushes. -
Page 15: Adjusting Pressure Of Brushes
Adjusting pressure of brushes Driving Warning Risk of injury caused by tripping or sliding while pushing the mower, moving it back- wards and turning it round. ► Make sure that the area is clear of ob- jects and watch for safe footing. Driving Immediately switch off the brushes in case of a dangerous situation by releasing the engine... -
Page 16: Brushing At A Kerb Or Wall
Brushing at a kerb or wall Switching off and parking Warning Warning When you open the side flap, objects can On a slope, the device can roll away. be ejected. ► Put the device on even ground only or secure it against rolling away. ►... -
Page 17: Transport
Secure the device against rolling, sliding Transport and tilting. Use straps that support the weight of the device. Warning Risk of injury due to the heavy weight of the device. The device can fall over and fall down and cause severe injuries. ►... -
Page 18: Maintenance
Prior to all maintenance and cleaning work Maintenance when the engine is not running: Warning Risk of injury due to unexpected movement. When inspections are carried out, the device can move unexpectedly. ► Make sure that no persons or objects are in the danger area of the blade. -
Page 19: Maintenance Overview
Maintenance overview Component Action Maintenance interval Device Check for safe working condition (basic inspection). ■ ▲ Clean. ■ Customer service. ▲ Fuel Check fuel level. ■ Is the tank cap closed? ■ Tank, fuel valve, Check parts for leaks and check for good condition. ■... - Page 20 Flammable material Remove easily flammable debris from the engine and the ■ ▲ device. Tyres Check tyres and, if necessary, the tyre pressure. ■ ▲ Before and after each use. Annually or every 50 h. ■ By the user when the engine is not running. □...
-
Page 21: Cleaning The Device
Cleaning the device Basic inspection To make sure that the device can be operated safely, check all nuts, bolts, screws, connec- tions of fuel lines, air filters etc. regularly for proper condition and firm seating. Check the ignition wire and the spark plug connector for damage. -
Page 22: Checking The Brushes
Checking the brushes Changing the brushes Use solid gloves when you check or Warning change the brushes. Improper maintenance, wear or damage to the brushes and fastening elements can lead to wires, brushes or fastening elements Notice loosening and being hurled away. There is a Unbalance of the brush system leads to de- considerable risk of injury. -
Page 23: Checking The Brush Strip And The Brush Holder
Check the brush strip (2) and brush holder (1) regularly and prior to each use and when you detect noticeable changes regarding cracks and damages. If there are damages, immedi- ately contact your service centre. The brush holders must be moved easily (re- move dirt). -
Page 24: Checking The Spark Plugs
Checking the spark plugs Checking the drive 1. Put the device on a non-slip surface (e.g. Danger concrete or asphalt). The ignition system generates an electro- 2. Switch off the engine. magnetic field. 3. Set the gear shift lever to a forward gear. ►... -
Page 25: Assembly
Assembly Scope of delivery The device is shipped in a carton. The scope of delivery includes: – The device. – Dirt collecting bag. – This operating manual. – Manufacturer’s certificate. – Tool bag. – A set of spare brushes. – Operator’s manual of the engine manufac- Fig. 9: turer. -
Page 26: Dirt Collecting Bag
Attaching the dirt collecting bag Dirt collecting bag Assembling the dirt collecting bag 1. Switch off the brushes and wait until the brushes come to a standstill. 2. Lift up the rear flap (1). 3. Insert the dirt collecting bag (2) into the re- cesses. -
Page 27: Storage
Storage Spare parts The reliable and safe operation of the device Storing the device also depends on the quality of the spare parts used. Only use original spare parts and ac- Keep the device in a closed, dry, and well vent- cessories that were approved by ilated room and out of reach of children. -
Page 28: Troubleshooting
Troubleshooting The following table contains the most frequent problems and their elimination. If more problems occur, contact the closest authorised service centre. You can find an authorised service centre on our home page www.as-motor.de. Problem Possible cause Remedy Engine does not start Engine brake bar is not Press the engine brake bar towards the pressed. - Page 29 Strong vibrations dur- Unbalance at the brushes due Immediately replace the brushes or ing operation to uneven wear or incorrect in- mount correctly (see chapter Mainten- sertion of the brushes. ance). Brush drive shaft is bent due to Authorised service centre. collisions with foreign objects.
-
Page 30: Technical Data
Technical data Type AS 50 Range of application (temperature) 0 - 30 °C For temperatures below 5 °C, observe the en- gine manufacturer's information regarding the engine oil. Engine, type One cylinder four stroke engine Manufacturer Briggs & Stratton Type Series 850, I/C Cylinder capacity 190 cm Performance... -
Page 31: Accessories
Accessories Operating hours counter: G06927008 Spray paint 400 ml, colour orange: G00011050... -
Page 32: Declaration Of Conformity
Declaration of conformity AS-Motor Germany GmbH & Co. KG Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de Declaration of conformity We declare that the weed remover type AS 50 with serial number starting from 032919010001 as brought into circulation by us conforms to all relev- - 2006/42/EC ant safety and health requirements of the EC direct- - 2014/30/EC... - Page 36 AS-Motor Germany GmbH & Co. KG Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de THE HIGH GRASS MOWER AND 2 STROKE ENGINE MANUFACTURE AS-Motor is your premium manufacturer for lawn and high grass mowers as well as 2 stroke en- gines. We offer our customers professional technology for steep slopes, rough terrain, and lawn care.
