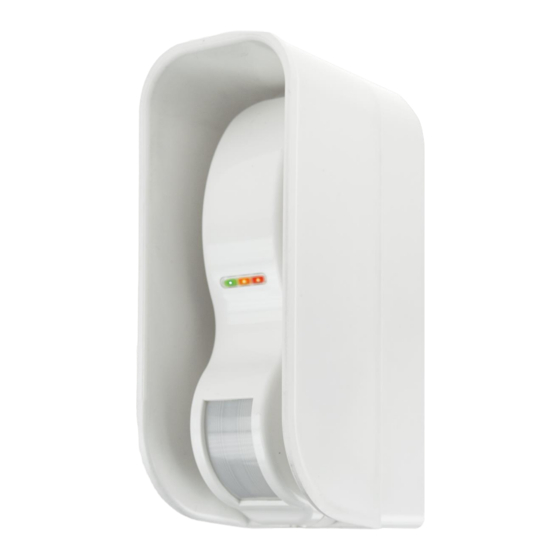

- Page 1 PRODUCT NAT WS Product code NAT WS NAT WS FLAT NAT WS LOW-CONSUMPTION INDOOR AND OUTDOOR CURTAIN SENSOR INSTALLATION AND MOUNTING MANUAL VERSION 2.0...
-
Page 2: Table Of Contents
9.Component description…. …………………………………………………………………………………………………………..17 9.1 DIP functionality 9.2 LED indicators 9.3 Adjustment trimmer 10.Description of functions ……………………………………………………..…………..…........19 11.PIR LIMITER ………………. …………………………………………………………………………………………………………..19 11.1 Application 11.2 PIR LIMITER mounting 12.Installation examples..……………………………………………………………………………………………………..….………21 13.Technical specifications ………………………………………………………………………………………………..……..……….23 14.Product disposal………………………………………………………………………………………….………....……..24 NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0... -
Page 3: Introduction
The system has been designed to detect intrusions and activate the alarm; it is not a device that prevents intrusion.Politec is not responsible for damage, injury or loss caused by accidents, theft, force majeure (including momentary lightning-induced overcurrent), abuse, improper or incorrect use, faulty installation or inadequate maintenance. -
Page 4: General Warnings
• Manufacturer's liability:Politec assumes no liability for failures resulting from incorrect installation; lack of maintenance, incorrect assembly or use. • Politec is also not liable for incorrect or incomplete operation of the product or failure to detect intrusion. •... -
Page 5: List Of Main Components
When opening the package, check that everything has been included. COMPONENT COMPONENT Cover 3.6V lithium batteries PIR LIMITER Interface board + cable Circuit board Radio transmitter port Gaskets Metal plate Base Outer cover Concentric seals L-shaped bracket Canopy NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0... -
Page 6: Preparation For Installation
• Check that the surface chosen for the installation of the product is sturdy so as to ensure stable fixing and that it is adequately protected against possible impacts or the elements. NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0... -
Page 7: Placement And Installation
6.3 Pet Immunity If mounted at a height between 2 and 3m, the sensor manages to identify a pet with a mass not exceeding 10 kg that walks within the detection area. NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0... -
Page 8: Type Of Detection
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0... -
Page 9: Mounting
WARNING: Product warranty is invalid if there is any hole in the sensor or any component NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0... - Page 10 Secure the NAT base with the screw located canopy compartment as shown at the bottom Fix the Nat board to the base After performing the calibration, insert the sensor cover and close everything with the screw located under it NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0...
-
Page 11: Mounting With L-Shaped Bracket
Replace the metric screw with those Screw the transmitter holder to the plate present in the bag and insert the seals in the compartments as indicated O-RING NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0... - Page 12 11. Attach the Nat board to the base 12. After performing the calibration, insert the sensor cover and close everything with the screw located under it NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0...
-
Page 13: Mounting With Nat Br Bracket (Accessory)
(180°) and fix everything with the central screw Remove the metal plate from the back Drill the hole for the screw indicated in the of the transmitter holder drawing NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0... - Page 14 Fasten the canopy to the transmitter 10. Drill the concentric seal to allow the holder passing through the power passage of the cable and insert it into the cables NAT base NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0...
- Page 15 Attach the Nat board to the base 16. After performing the calibration, insert the sensor cover and close everything with the screw located under it NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0...
-
Page 16: Circuit Board
Connect the battery power supply through a special connector and the interface connector to the NAT WS board respecting the polarity.It is possible to power the 3.6V/3V radio transmitter using the same power supply as the NAT WS. BATTERY CONNECTOR... -
Page 17: Component Description
30 seconds.The system gives an alarm signal independently of the other technology. Lighting of the LED indicators.However, the LEDs will turn off after 5 minutes to reduce battery consumption. NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0... -
Page 18: Led Indicators
N.B.::Trimmers will not necessarily have to be adjusted in the same way due to the surrounding environment: e.g. in case of protection of a metal door, the MW will be adjusted lower than the PIR due to the reflections given by the metal. NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0... -
Page 19: Description Of Functions
If the NAT sensor was used without the PIR LIMITER there could be reflections and false detections depending on the type of material or object present along the curtain (e.g. hot metal doors, moving mosquito nets, etc.). NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0... -
Page 20: Pir Limiter Mounting
11.2 PIR LIMITER mounting 1.Insert the mask device on the side according to the application. 2.Push the mask device all the way in. 3.The device can be removed by levering with the screwdriver underneath. NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0... -
Page 21: Installation Examples
12.Installation examples "Curtain" application on window/door frames "Open field of view" installation "Double" installation: N.B.:Position the two sensors at a distance greater than 15m if they face each other. NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0... - Page 22 N.B.:Position the two sensors at a distance greater than 5cm if they are shoulder-to-shoulder "Horizontal" installation. N.B.:Avoid that the sensor "looks" at a surface that is hit hard by the sun to avoid reflections NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0...
-
Page 23: Technical Specifications
OPTIONAL ACCESSORIES Adjustable bracket DIMENSIONS (LxWxD) NAT WS:150x60x100 mm NAT WS FLAT:150x60x80 mm MAX TX RADIO DIMENSIONS NAT WS FLAT:18x48x107 mm / 18x32x107 mm / 18x20x113 mm NAT WS:21x48x107 mm / 26x32x107 mm / 26x20x113 mm WEIGHT 170g INGRESS PROTECTION RATING... -
Page 24: Product Disposal
Warning!- Local regulations can impose heavy penalties for incorrect disposal of these products. For technical support, contact your security systems distributor Via Adda, 66/68 20882 Bellusco (MB) Italy T +39 039.6883019 F +39 039.6200471 info@politecsrl.it www.politecsrl.it NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0...
