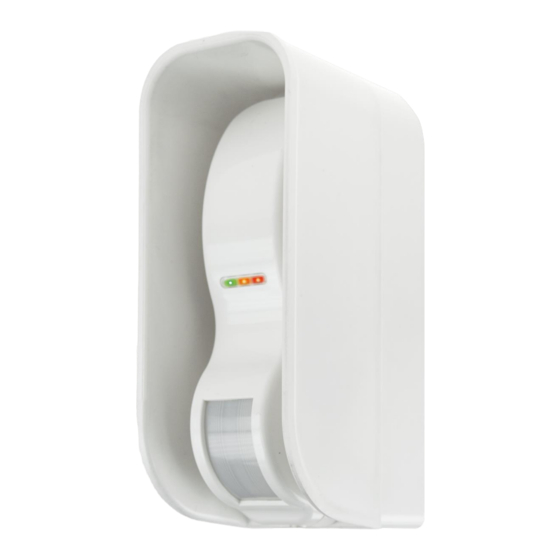

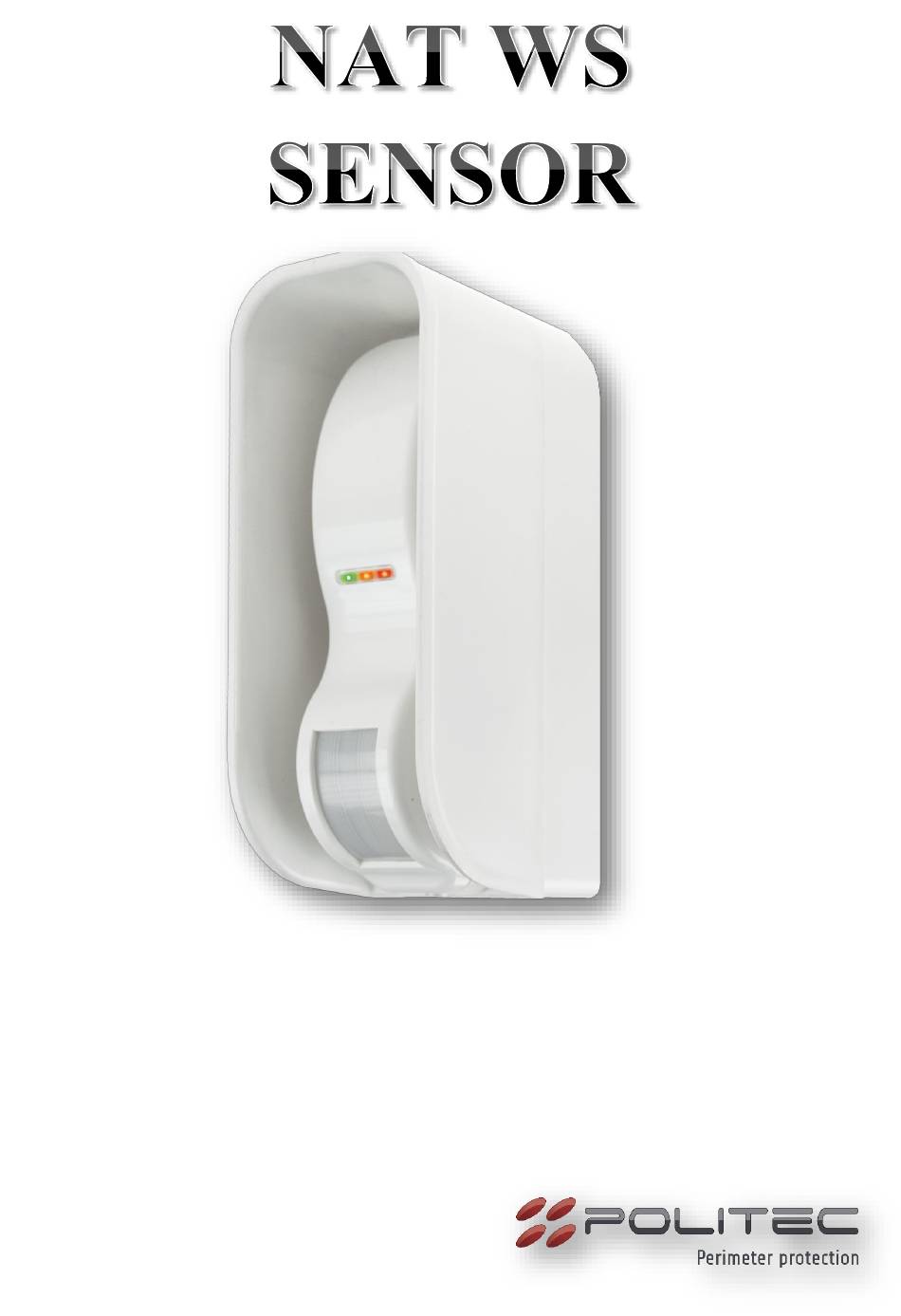

- Page 1 DUAL TECNOLOGY SENSOR (passive infrared + microwave) LOW CONSUMPTION External use Installation manual...
- Page 2 • AND + OR security function • ENERGY SAVING (no stand-by) • Tamper output combined anti- removal and anti-tear. • Battery low output. • Supply two 3.6V 2.7Ah Lithium Batteries, average duration 2 years. Politec S.r.l. | Manual NAT WS SENSOR – Ver. 1.0...
- Page 3 SENSOR CONNECTORS NB: Due to the position of the PIR - Microwave sensors and the AND functionality, the system is totally immune to the detection of insects smaller than 5cm. Politec S.r.l. | Manual NAT WS SENSOR – Ver. 1.0...
-
Page 4: Wall Mounting
Fix the plate at the wall: case. Place the battery holder by sliding the upper hook Check that the gaskets on the cap are correctly insert and tighten the screw as shown below O-RING Politec S.r.l. | Manual NAT WS SENSOR – Ver. 1.0... - Page 5 9. Fix the Nat motherboard on the support base 10. After the wiring and operation test close NAT sure that the seals and the O-rings are present and not damaged to ensure the integrity of the product. Politec S.r.l. | Manual NAT WS SENSOR – Ver. 1.0...
- Page 6 Drill the passage of the screw shown in the drawing insert the seals into the compartments as indicated O-RING Screw the battery case at plastic plate Check that the gaskets on the cap are correctly insert O-RING Politec S.r.l. | Manual NAT WS SENSOR – Ver. 1.0...
- Page 7 12. Fix the Nat motherboard on the support base 13. After the wiring and operation test close NAT sure that the seals and the O-rings are present and not damaged to ensure the integrity of the product. Politec S.r.l. | Manual NAT WS SENSOR – Ver. 1.0...
-
Page 8: Coverage Area
10 m UNDERCRAWL: If mounted to a height below 2.5m, the sensor can also detect the areas under the NAT WS sensor by appropriately adjusting the sensitivity of the two technologies (IR and MW) This is due to the inclination of the microwave board and the PIR. -
Page 9: Programming And Operation
In case of protection of a metallic door, the MW will be adjusted with a lower sensitivity then the PIR due to the reflections given by the metal. Politec S.r.l. | Manual NAT WS SENSOR – Ver. 1.0... -
Page 10: Additional Features
TAMPER MOTHERBOARD CONNECTOR It is possible to power the 3.6V or 3V radio transmitter by using the same power as the NAT WS Sensor. 5. 5. ADDITIONAL FEATURES ENERGY FUNCTION If the DI1 is activated, the power saving function is activated. With this feature enabled, the system enters low power mode, especially the microwave is activated as soon as the IR technology records a pre-alarm. -
Page 11: Security Function
Dually the IR sensor provides at least 4 separate surveys in 30 seconds, the system by an alarm signal regardless of the sensor readings MW. 1 2 3 4 Politec S.r.l. | Manual NAT WS SENSOR – Ver. 1.0... - Page 12 Average battery life of 3 years with 3000 alarms per day. APPLICATION Example 1 “Curtain” for windows or doors Example 2 “Double installation” N.B. The two sensors placed in front of the other do not disturb each other Politec S.r.l. | Manual NAT WS SENSOR – Ver. 1.0...
- Page 13 DETECTION METHODS AND INSTALLATIVE ADVICE TOP VIEW The sensor is designed for cross-tracing detection. Properly use the PIR Limiter for proper detection (Chapter 8). Politec S.r.l. | Manual NAT WS SENSOR – Ver. 1.0...
- Page 14 Then avoid installing the sensor facing a vehicle passage or use the kunction bracket and tilt down the sensor to reduce the coverage area. NB: Avoid the presence of plants, air conditioners and moving objects in the detection area Politec S.r.l. | Manual NAT WS SENSOR – Ver. 1.0...
- Page 15 In order to obtain a more precise and safe area of detection it is possible to apply the PIR LIMITER supplied which limits the angle of view of the sensor. In this way, the sensor detects only interested area. LEFT SIDE SENSOR LIMITED Politec S.r.l. | Manual NAT WS SENSOR – Ver. 1.0...
-
Page 16: Technical Specification
N.C. Antimask output Tamper output Condivisione Alimentazione TX radio 3V-3.6V selectable universale Operating Temperature From -20° C to +65° C Dimensions 150mm x 60mm x 100mm TOTAL WARRANTY 2 YEARS Politec S.r.l. | Manual NAT WS SENSOR – Ver. 1.0...
