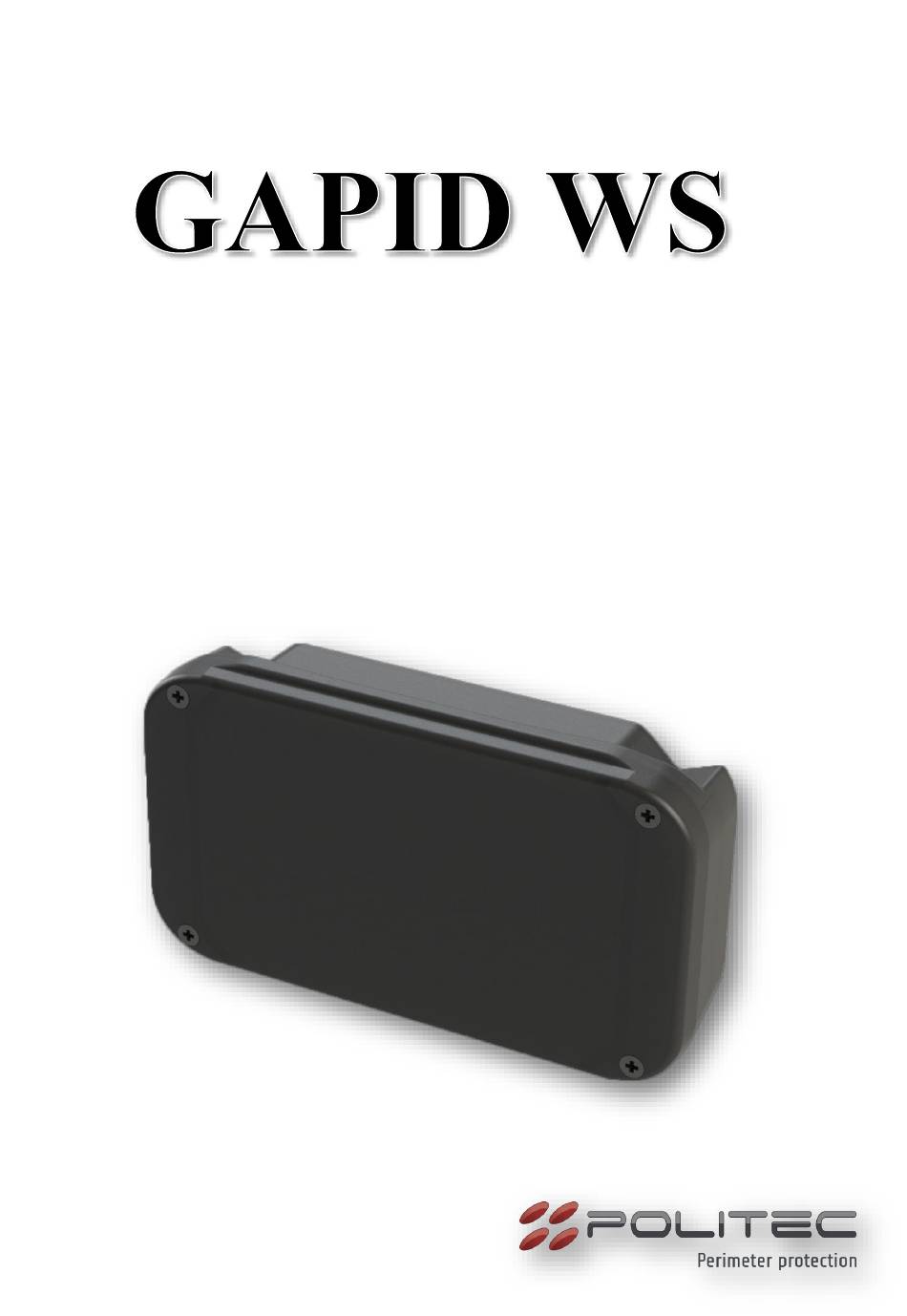

- Page 1 THREE-AXIAL ACCELEROMETER SENSOR ANTI CLIMBING / CUTTING Installation Manual...
- Page 2 NB: Installation tips Once installed, you must ensure that the sensor is properly closed through its water-tight cover. Not using appropriate accessories will void the degree of protection (IP). POLITEC s.r.l. | Manual Gapid WS – Ver. 1.0...
-
Page 3: Main Components List
MAIN COMPONENTS LIST N° Description Fixing plate Base Fastening screws Motherboard Battery 3,6V 2,7Ah Radio transmitter compartment O-Ring Closing cover Closing screws POLITEC s.r.l. | Manual Gapid WS – Ver. 1.0... - Page 4 Tighten well the screws to prevent improper device moving. 2. Put the O-Ring in the dedicated place. 3. Make wiring with the radio transmitter and power the sensor by paying attention to the battery polarity. POLITEC s.r.l. | Manual Gapid WS – Ver. 1.0...
- Page 5 4. Stick with the velcro strip the radio transmitter. RADIO TRANSMITTER 5. After programming and calibration of the sensor, close it carefully, paying attention to well placement of POLITEC s.r.l. | Manual Gapid WS – Ver. 1.0...
- Page 6 CABLE AND CONNECTIONS GAPID WS is pre-wired with cables to connect to the radio transmitter COLOR DESCRIPTION FUNCTION 3.6V Supply by cable Screen Negative power supply White Battery low COLOR DESCRIPTION FUNCTION Tamper output NC Green Tamper output NC Yellow...
-
Page 7: Terminal Block
Light Metallic Grid Rigid Grid\Thick Garden Netting Not Welded Welded Garden Netting Wall\Railings – Anti Break down Windows 6.2. SELF-LEARNING Self-learning For Alarm Self-learning For Disqualification Self-learning For Spontaneous Vibration 6.3. RESET Reset POLITEC s.r.l. | Manual Gapid WS – Ver. 1.0... -
Page 8: Description Of The Functions
5mm. With maximum sensitivity is reached a radius of action of about 2.5 m. N.B.: S ensitivity may depend on the type of grid and from its anchorage to the ground. POLITEC s.r.l. | Manual Gapid WS – Ver. 1.0... - Page 9 With this program GAPID detects attempts to break down of walls and cutting of iron railings. With maximum sensitivity is reached a radius of action of about 2.5 m. N.B.: S ensitivity may depend on the type and thickness of the wall / railings. POLITEC s.r.l. | Manual Gapid WS – Ver. 1.0...
- Page 10 It is so possible to teach the resonance of the fence to GAPID so that it gets filtered in order to prevent false alarms due to these oscillations. 6.0 RESET All the signals recorded during the self-learning functions will be cleared. POLITEC s.r.l. | Manual Gapid WS – Ver. 1.0...
- Page 11 RED LED does not turn ON means that the disturbance is too light to be recorded. d. Re-select standard function. Set to 1 the DIP to finish. It is suggested to perform a disturbance for a time up to 10sec. POLITEC s.r.l. | Manual Gapid WS – Ver. 1.0...
-
Page 12: Technical Features
CASE MATERIAL Black polycarbonate anti-scratch, UV resistant WEATHER RATING IP 66 OPERATION TEMPERATURE -40°C +80°C Mounting kit included with screws and metallic plate. WARRANTY 2 YEARS TECHNICAL DEPT: +39 039 9081616 POLITEC s.r.l. | Manual Gapid WS – Ver. 1.0...
