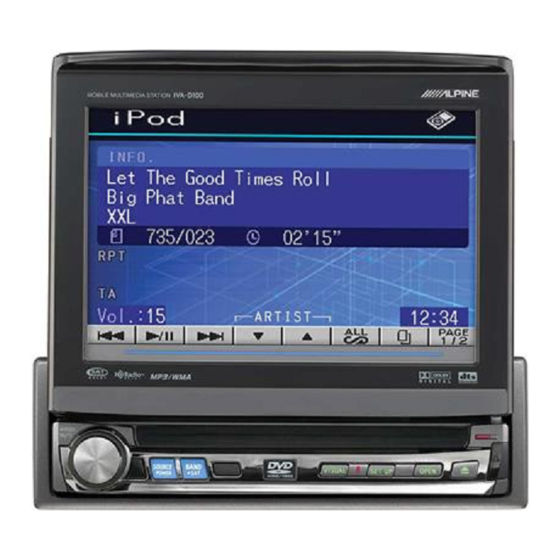

Alpine IVA-D100 Owner's Manual

Mobile multimedia station
Hide thumbs Also See for IVA-D100:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Owner's Manual
Mobile Multimedia Station
ALPINE ELECTRONICS MARKETING, INC.
1-1-8 Nishi Gotanda,
Shinagawa-ku,
Tokyo 141-0031, Japan
Phone 03-5496-8231
ALPINE ELECTRONICS OF AMERICA, INC.
19145 Gramercy Place, Torrance,
California 90501, U.S.A.
Phone 1-800-ALPINE-1 (1-800-257-4631)
ALPINE ELECTRONICS OF CANADA, INC.
777 Supertest Road, Toronto,
Ontario M3J 2M9, Canada
Phone 1-800-ALPINE-1 (1-800-257-4631)
Dalian Dongtai Colour Printing Technology Co., Ltd.
No. 24 Liaohexisan Road, Dalian Economic&Technical
Development Zone, China
IVA-D100
DIGITAL VIDEO
• OWNER'S MANUAL
Please read before using this equipment.
• MODE D'EMPLOI
Veuillez lire avant d'utiliser cet appareil.
• MANUAL DE OPERACIÓN
Léalo antes de utilizar este equipo.
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.
161-165 Princes Highway, Hallam
Victoria 3803, Australia
Phone 03-8787-1200
ALPINE ELECTRONICS GmbH
Frankfurter Ring 117, 80807 München, Germany
Phone 089-32 42 640
ALPINE ELECTRONICS OF U.K. LTD.
Alpine House
Fletchamstead Highway, Coventry CV4 9TW, U.K.
Phone 0870-33 33 763
ALPINE ELECTRONICS FRANCE S.A.R.L.
(RCS PONTOISE B 338 101 280)
98, Rue de la Belle Etoile, Z.I. Paris Nord Il,
B.P. 50016, 95945 Roissy Charles de Gaulle
Cedex, France
Phone 01-48638989
R R
TM
ALPINE ITALIA S.p.A.
Viale C. Colombo 8, 20090 Trezzano
Sul Naviglio (MI), Italy
Phone 02-484781
ALPINE ELECTRONICS DE ESPAÑA, S.A.
Portal de Gamarra 36, Pabellón, 32
01013 Vitoria (Alava)-APDO 133, Spain
Phone 945-283588
ALPINE ELECTRONICS (BENELUX) GmbH
Leuvensesteenweg 510-B6,
1930 Zaventem, Belgium
Phone 02-725-13 15
Designed by ALPINE Japan
Printed in China (Y)
68-05946Z49-A
EN
FR
ES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IVA-D100 and is the answer not in the manual?

Questions and answers

Related Manuals for Alpine IVA-D100

Summary of Contents for Alpine IVA-D100

  • Page 1 IVA-D100 DIGITAL VIDEO Please read before using this equipment. Veuillez lire avant d’utiliser cet appareil. Léalo antes de utilizar este equipo. ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD. 161-165 Princes Highway, Hallam Victoria 3803, Australia Phone 03-8787-1200 ALPINE ELECTRONICS GmbH Frankfurter Ring 117, 80807 München, Germany Phone 089-32 42 640 ALPINE ELECTRONICS OF U.K.
  • Page 2 The CHA-1214 Ai-NET model holds 12 discs, and the CHM-S630 M-Bus model is a super-compact 6-disc changer with a CD-R/RW PLAY BACK. Changeurs de CD Alpine : vous avez le choix! Plus de sélections musicales, plus de souplesse, plus de confort.
  • Page 3 IVA-D100 DIGITAL VIDEO Please read before using this equipment. Veuillez lire avant d’utiliser cet appareil. Léalo antes de utilizar este equipo. ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD. 161-165 Princes Highway, Hallam Victoria 3803, Australia Phone 03-8787-1200 ALPINE ELECTRONICS GmbH Frankfurter Ring 117, 80807 München, Germany Phone 089-32 42 640 ALPINE ELECTRONICS OF U.K.
  • Page 4 The CHA-1214 Ai-NET model holds 12 discs, and the CHM-S630 M-Bus model is a super-compact 6-disc changer with a CD-R/RW PLAY BACK. Changeurs de CD Alpine : vous avez le choix! Plus de sélections musicales, plus de souplesse, plus de confort.

  • Page 5: Table Of Contents

    Contents Operating Instructions WARNING WARNING ... 4 CAUTION ... 4 PRECAUTIONS ... 5 Discs Playable on This Unit ... 6 Getting Started Accessory List ... 9 Location of Controls ... 9 Detaching and Attaching the Front Panel ... 10 Initial System Start-Up ... 10 Turning Power On or Off ...
  • Page 6 Other Useful Features Adjusting the Audio (Adjusting the Bass/Treble/ Balance/Fader/Loudness/Subwoofer/ Nav. Level/Defeat) ... 25 Search Function ... 26 Rear Selection Function ... 26 Switching Display Modes ... 26 Switching the Visual Source Only (Simultaneous Function) ... 27 Cancelling the Simultaneous Function ... 27 Blackout Mode On and Off ...
  • Page 7 Set MX Mode of the External Audio Processor ... 41 X-OVER Adjustment ... 41 Performing Time Correction Manually (TCR) ... 42 Phase Switching ... 43 Graphic Equalizer Adjustments ... 43 Parametric Equalizer Adjustments ... 43 Setting Bass Sound Control ... 44 Setting Bass Compressor ...

  • Page 8: Operating Instructions

    HALT USE IMMEDIATELY IF A PROBLEM APPEARS. Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing. KEEP FINGERS AWAY WHILE THE MOTORIZED FRONT PANEL OR MOVING MONITOR IS IN MOTION.

  • Page 9: Precautions

    Center Hole Center Hole Bumps Installation Location Make sure the IVA-D100 will not be installed in a location subjected to: • Direct sun and heat • High humidity and water • Excessive dust • Excessive vibrations Correct Handling Do not drop the disc while handling.

  • Page 10: Discs Playable On This Unit

    This will restrict operation of these functions to times when the vehicle is parked. This ensures the focus of the driver’s attention will be on the road and not on the IVA-D100. This has been done for the safety of the driver and passengers.
  • Page 11 Hybrid Audio CD and Data (MP3/WMA) CD-R/RW discs: The IVA-D100 can read either sector on the disc. Choose CD-DA to play the CD audio section or MP3/WMA to play the MP3/WMA section.*...
  • Page 12 Using DVD-Rs/DVD-RWs/DVD+Rs/DVD+RWs • This unit is compatible discs recorded in the DVD-Video and DVD-VR mode. • Note that discs not finalized (processed to enable to play on playback-only DVD players) cannot be played on this DVD player. • Some discs may not play back, depending on the recording device and disc format.

  • Page 13: Getting Started

    • The indicator slowly blinks when the backlighting (BLACK OUT function) is set to OFF. • The indicator blinks in the voice guidance mode when an ALPINE navigation system is connected. Disc Guide Indicator Lights up when power is turned on.

  • Page 14: Detaching And Attaching The Front Panel

    Press and hold SOURCE/POWER for at least 2 seconds to turn off the unit. • The IVA-D100 draws minimal current even when its power switch is turned off. If the switched power (ignition) lead of the IVA-D100 is connected directly to the positive (+) post of the vehicle's battery, the battery may be discharged.

  • Page 15: Moving The Monitor To Be Flat

    Moving the Monitor to be Flat When you want to operate some function on the car (air conditioner, etc.) which is hidden by the raised monitor, use this function. When the monitor is open, press OPEN (FLAT). The monitor moves to the flat position. Press OPEN (FLAT) again.

  • Page 16: About The Glidetouch Bar

    Touch [ ] of RADIO. The screen changes to the Radio mode main display. Main screen example for FM Radio mode Displays the source name, such as radio band, etc., that is selected Working state indicator Displays volume level GlideTouch bar display For operation, refer to “About the GlideTouch bar”...

  • Page 17: Displaying The Numeric Keypad Input Screen

    Mode display: MP3/WMA/iPod/MMDRIVER main screen GlideTouch bar display example File changes. Mode display: DVD Video/DVD-VR main screen GlideTouch bar display example Chapter changes. Mode display: Radio/SAT/HD Radio main screen GlideTouch bar display example Recalls the stored preset number. Mode display: External TV main screen GlideTouch bar display example Channel number changes.

  • Page 18: Setting Analog Mode (Hd Radio Mode Only)

    Touch [ ], [ ] or [ radio frequency up or down respectively. In the manual mode, touch and hold to change the frequency continuously. • “DIGITAL” is displayed when a digital radio station is received. Setting Analog Mode (HD Radio mode only) While receiving HD radio, you can switch to analog signal mode, even in areas that receive digital radio station signals.

  • Page 19: Cd/Mp3/Wma

    ] of DVD PLAYER. The display shows the DVD player mode screen. When a CD/MP3/WMA is inserted into the DISC SLOT of the IVA-D100, with the label side facing up, the unit starts to play the CD/MP3/WMA. Touch [ ] or [ ] to select the desired track (file).

  • Page 20: Repeat Play

    Repeat Play Touch [ ] to play back repeatedly the track currently being played. The track (file) will be played repeatedly. Touch [ ] again and select OFF to deactivate Repeat play. CD: RPT RPT DISC* (off) MP3/WMA: 1 Touch [PAGE1/2]* to change the function guide.
  • Page 21 Media supported The media that this device can play back are CD-ROMs, CD-Rs and CD-RWs. Corresponding File Systems This device supports discs formatted with ISO9660 Level 1 or Level 2. Under the ISO9660 standard, there are some restrictions to remember. The maximum nested folder depth is 8 (including the root directory).

  • Page 22: Dvd/Video Cd

    Video-CD discs can be used. Playing a Disc IVA-D100 has a built-in DVD player. When an optional Alpine DVD/ video CD/CD player (or DVD changer) is connected to the IVA-D100, you can control it from the IVA-D100. (except some operations)

  • Page 23: If A Menu Screen Appears

    The display shows the DVD player mode screen. Insert a disc with the label side facing up. The unit starts to play the disc. When an optional Alpine DVD player is connected: Insert a disc into the DVD/video CD/CD player, the player starts playing.

  • Page 24: Displaying The Top Menu Screen

    Numeric Keypad Input Operations 1 Touch [KEY]. The menu operation mode appears. 2 Touch [KEY] again. The numeric keypad input mode screen appears. The numeric keypad input screen closes when the area is touched while displayed. Touch [RTN] to close the numeric keypad input screen.

  • Page 25: Stopping Playback

    Stopping Playback Touch [ ] twice or touch and hold [ ] for at least 2 seconds during playback. “STOP” is displayed, and playback stops. • Playback starts from the beginning when [ playback is stopped. Fast-forwarding/Fast-reversing DVD-Video, DVD-VR, Video-CD, DVD-Audio (VCAP mode)*: During playback, touch and hold [ reverse) or [...

  • Page 26: Selecting Program (Skip)

    Selecting Program (SKIP) Touch [PAGE1/3] twice while playing a program of a DVD-VR disc. The PROGRAM function guide is displayed. Touch [ ] or [ ] of PROGRAM* to select the desired program. * To switch [ ] or [ ] of PLAYLIST in the function guide display to [ ] or [...

  • Page 27: Searching By Title/Group/Program/ Playlist Number

    Searching by Title/Group/Program/ playlist Number Use this function to easily find positions on the DVD using the DVD’s titles, Groups, Programs or playlists. Touch [PAGE1/2]* while playback is stopped. The function guide appears. * The display differs, depending on the disc (mode). Touch [10KEY].

  • Page 28: Switching The Subtitles (Subtitle Language)

    Video CDs or DVD-VR with multiplex audio During playback, touch [PAGE1/2]* The function guide changes. Touch [PAGE1/3] while playing a DVD-VR disc. Touch [AUDIO]* The left and right channels will be output as shown below, each time the button is touched. Touch [AUDIO] for at least 2 seconds to switch while playing a DVD-VR disc.

  • Page 29: Other Useful Features

    Other Useful Features Adjusting the Audio Press SETUP. The SETUP selection screen is displayed. Touch [ ] of AUDIO MODE or press and hold the Rotary encoder for at least 2 seconds on the unit. The display changes to the AUDIO Adjustment screen. Display Example for Audio Adjustment Screen Scrolls the page list up or down.

  • Page 30: Search Function

    Rear Selection Function While listening to the radio or other audio source, at the same time, pictures in a disc inserted in the IVA-D100 can be enjoyed in the rear monitor. However, only pictures are output, not sound. Press SETUP.

  • Page 31: Switching The Visual Source Only (Simultaneous Function)

    In Mode 2 (Cinema), the monitor displays a normal picture by stretching out the picture horizontally and vertically. This mode is good for displaying a cinema type picture at the 16 : 9 ratio. In Mode 3 (Normal), the monitor displays a normal picture at the center of the screen with a vertical black band at each side.

  • Page 32: Monitor Setting

    Monitor Setting Monitor Setting Operation Following Steps 1 to 4 describe the common procedures for operating the MONITOR setting function. For details of the setting function items, refer to descriptions of respective items. Press SETUP. The SETUP selection screen is displayed. Touch [ ] of MONITOR.

  • Page 33: Setting Of The Menu Language

    Display example for DVD setup screen Touch [CODE] to display the numeric keypad screen. Touch [ ] or [ ] to set a desired language. Scrolls the page list up or down. Scrolls the list item by item. Touching and holding will scroll continuously. GlideTouch bar display For operation, refer to “About the GlideTouch bar”...

  • Page 34: Setting The Rating Level (Parental Lock)

    “Setting the Rating Level (Parental Lock).”) Changing the Digital Output Setting Use the following procedure to set the digital audio signal output from the IVA-D100. Setting item: DIGITAL OUT Setting contents: BITSTREAM / LPCM BITSTREAM: The digital output is switched automatically according to the type of audio signals being played.
  • Page 35 Audio output/Optical digital audio output Disc Audio recording format Format LPCM 44.1/176.4kHz 16/20/24bit (CD-DA, DVD-V, DVD- 48/96/192kHz 16/20/24bit A, DVD-VR) PPCM 44.1/88.2/ 16/20/24bit (DVD-A) 176.4kHz 48/96/192kHz 16/20/24bit Dolby Digital 48kHz 16/18/20bit (-EX) (DVD-V, DVD- A, DVD-VR) DTS (-ES) 44.1kHz 16/20/24bit (CD-DA, DVD-V, DVD- 48/96kHz...

  • Page 36: Setting The Downmix Mode

    Use the procedure described below to modify the output screen according to the type of TV monitor (rear monitor) being used. This setting can also be applied for the IVA-D100. If the rear monitor is not connected, the screen setting is 16:9.

  • Page 37: General Setup

    GENERAL Setup General Setup Operation To display the General mode screen: To watch a video source, your vehicle must be parked with the ignition key in the ACC or ON position. To do this, follow the procedure below. 1 Bring your vehicle to a complete stop at a safe location.

  • Page 38: Setting The Scroll

    Setting the Scroll Scroll display is available if CD text, folder name, file name or tag information is entered. Setting item: AUTO SCROLL Setting content: OFF / ON Turns on the AUTO scroll mode. Scroll display is repeated as long as the mode is turned on. OFF: Turns off the AUTO scroll mode.

  • Page 39: Setting The External Device Interrupt Mode

    • The selected name is displayed on the VISUAL and REAR selection screen. • Only when an Alpine TV tuner is connected, you can operate the displayed function guide from this unit. • The selected source name is displayed instead of AUX source name.

  • Page 40: Setting The Picture Output

    Setting the Picture Output Outputs the picture of the source selected on the IVA-D100 connected to the rear monitor. Setting item: AUX OUT Setting content: OFF / ON The "REAR SELECT" item is displayed on the SETUP select screen. Touch [...

  • Page 41: Setting The Brightness Of The Backlighting

    Setting the Brightness of the Backlighting Backlighting is provided by a fluorescent light built into the liquid crystal panel. The illumination control adjusts the brightness of the backlighting based on the car ambient lighting for easier viewing. Setting item: DIMMER Setting content: OFF / ON / AUTO OFF: Deactivate Auto Dimmer mode to keep the background...

  • Page 42: Visual Eq

    i-Personalize™ VISUAL EQ™ Visual EQ Setting Operation To display the i-Personalize mode screen: To watch a video source, your vehicle must be parked with the ignition key in the ACC or ON position. To do this, follow the procedure below. 1 Bring your vehicle to a complete stop at a safe location.

  • Page 43: Adjusting Tint Of Picture

    Downloading the BACKGROUND data You can download data (from Alpine’s website) to a CD-R/CD-RW (data is written in the root folder), and store the data to the IVA-D100. To start BACKGROUND download, access the URL below and follow the on-screen instructions.

  • Page 44: External Audio Processor (Optional)

    Pro Logic II, DTS and PCM modes.) Storing Settings in the Memory (page 46) (Storing all the settings and adjustments made on the IVA-D100 (not only the above settings/adjusts) in the memory) In case of combining the Automatic adjustments, etc.

  • Page 45: Setting The Speakers

    Setting the Speakers Check that Defeat mode is off (page 25). Press SETUP. The SETUP selection screen is displayed. Touch [ ] of i-Personalize. The i-Personalize screen appears. Touch [ ] of A.PROCESSOR. The A.PROC list screen appears. Touch [ ] of SPEAKER SELECT.

  • Page 46: Performing Time Correction Manually (Tcr)

    Adjusting the Level Touch [ ] or [ ] of LEVEL, then adjust the HPF or LPF level. Adjusting the Slope Touch [ ] or [ ] of SLOPE, then adjust the HPF or LPF slope. Touch [RTN] to return to the previous screen. •...

  • Page 47: Phase Switching

    Phase Switching Make sure that the defeat is turned off (page 25). Press SETUP. The SETUP selection screen is displayed. Touch [ ] of i-Personalize. The i-Personalize screen appears. Touch [ ] of A.PROCESSOR. The A.PROC list screen is displayed. Touch [ ] of PHASE.

  • Page 48: Setting Bass Sound Control

    Setting the Bandwidth Touch [ ] or [ ] of Q. Select the bandwidth. Touch [RTN] to return to the previous screen. • When the speaker is set to the “OFF” mode, the parametric equalizer for that speaker cannot be set. Refer to “Setting the Speakers”...

  • Page 49: Setting Of Dolby Digital

    Setting of Dolby Digital Check that Defeat mode is off. Press SETUP. The SETUP selection screen appears. Touch [ ] of i-Personalize. The i-Personalize screen will appear. Touch [ ] of A.PROCESSOR. The A.PROC list screen appears. Touch [ ] of MULTI CH SETUP. The MULTI CH SETUP display appears.

  • Page 50: Adjusting The Dvd Level

    Adjusting the DVD Level The volume (signal level) for Dolby Digital, Dolby PL II, DTS and PCM modes can be set. • Avoid stopping, pausing, switching the disc, cueing, fast-forwarding or switching the audio channel of this unit while making this adjustment.

  • Page 51: Linear Pcm Setting

    Navigation System (Optional) Switching the Navigation Screen (Optional) If an optional Alpine Navigation System is connected to the IVA-D100, the Navigation screen can be displayed on this unit. Press SOURCE/POWER. The source screen appears on the display. Touch [ ] of NAV.

  • Page 52: Auxiliary Device (Optional)

    TV/Video unless the vehicle is stopped and the emergency brake is applied. If the IVA-D100 is not installed correctly, the driver will be able to watch the TV/Video while driving the vehicle and may be distracted from looking ahead and cause an accident.

  • Page 53: Changer (Optional)

    Controlling CD Changer (Optional) An optional 6-disc or 12-disc CD Changer may be connected to the IVA-D100 if it is Ai-NET compatible. With a CD Changer connected to the Ai-NET input of the IVA-D100, the CD Changer will be controllable from the IVA-D100.

  • Page 54: Hdd Player Operation (Optional)

    Radio Inc. * SIRIUS and its corresponding logos are trademarks of SIRIUS Satellite Radio Inc. • The SAT Receiver controls on the IVA-D100 are operative only when a SAT Receiver is connected. Press SOURCE/POWER. The source selection screen is displayed.

  • Page 55: Tuning In To Categorized Programs

    SIRIUS Radio: This number is a 12-digit numeric number. It is printed on a label found on the SAT Receiver. It can also be displayed on the screen of the IVA-D100 in the following way. While receiving SAT Radio, touch [ [NO.

  • Page 56: Selecting The Channel Directly

    Touching [ ] again will resume playback. • If a song is playing on the iPod when it is connected to the IVA-D100, it will continue playing after the connection. • If the artist, album or song name, created in iTunes, has too many characters, songs may not be played back when connected to the IVA-D100.

  • Page 57: Searching For A Desired Song

    Searching for a desired Song An iPod can contain hundreds of songs. By keeping these songs organized in playlists, the IVA-D100 can use these to ease song searches. Searching by Playlist Touch [ The search mode is activated, and the search list screen appears.

  • Page 58: Direct Search Function

    Direct Search Function The unit's direct search function can be used to search for an album, song, etc., more efficiently. In PLAYLIST/ARTIST/ALBUM/SONG mode, you can quickly target any song. Example of ALBUM search screen Scroll the search Page up or down. Scroll the search list up or down.

  • Page 59: Remote Control

    Remote Control Controls on Remote Control PWR button Turns the power ON and OFF. SRC Button Selects the audio source. DN Button Radio mode: Selects, in descending order, stations programmed into the radio’s presets. MP3/WMA mode: Folder Select (DN) Button selects the folder. Changer mode: DISC Select (DN) Button selects a disc in descending order.

  • Page 60: When Using The Remote Control

    SETUP Button Not used. AUDIO Button DVD/Video CD mode: Switches audio. BAND Button Radio mode: Changes the band. Changer mode: Switches the disc mode. (when an optional KCA-410C is connected) DVD mode: While playing a DVD, the display mode is switched (only when car is stopped).

  • Page 61: Battery Replacement

    Battery Replacement Battery type: CR2025 battery or equivalent. Opening the battery case Slide out the battery cover while firmly pressing in the direction of the arrow. Replacing the battery Put the battery in the case with the (+) indication upward as shown in the illustration.

  • Page 62: Information

    * The separately sold digital audio processor (PXA-H700, etc.) is required to enjoy full 5.1-channel surround sound. The IVA-D100 performs Dolby Digital decoding when it outputs analog audio signals, it just happens to be 2-channel audio not 5.1-channel.
  • Page 63 Dolby Pro Logic II Dolby Pro Logic II plays 2-channel sources in 5 channels over the entire frequency range. This is done with an advance, high sound quality matrix surround decoder which draws out the spatial properties of the original recording without adding any sounds to or changing the sound of the source.

  • Page 64: List Of Language Codes

    List of Language Codes (For details, see page 29.) Abbreviation Code Language 6565 Afar 6566 Abkhazian 6570 Afrikaans Amharic 6577 6582 Arabic 6583 Assamese 6589 Aymara 6590 Azerbaijani Bashkir 6665 Byelorussian 6669 6671 Bulgarian 6672 Bihari 6673 Bislama 6678 Bengali, Bangla 6679 Tibetan 6682...

  • Page 65: List Of Country Codes

    List of Country Codes (For details, see page 29.) Abbreviation Code Country 6568 Andorra 6569 United Arab Emirates 6570 Afghanistan Antigua and Barbuda 6571 6573 Anguilla Albania 6576 6577 Armenia 6578 Netherlands Antilles 6579 Angola 6581 Antarctica 6582 Argentina 6583 American Samoa Austria 6584...
  • Page 66 Abbreviation Code Country 8069 Peru 8070 French Polynesia 8071 Papua New Guinea 8072 Philippines 8075 Pakistan 8076 Poland 8077 Saint Pierre and Miquelon 8078 Pitcairn 8082 Puerto Rico 8084 Portugal 8087 Palau 8089 Paraguay 8165 Qatar 8269 Reunion 8279 Romania 8285 Russian Federation 8287...

  • Page 67: In Case Of Difficulty

    - Change the disc. • The pick-up lens is dirty. - Do not use a commercial available lens cleaner disc. Consult your nearest ALPINE dealer. Disc playback sound skips without vibration. • Dirty or scratched disc. - Clean the disc; damaged disc should be replaced.
  • Page 68 2) When the error indication remains after ejecting, press again. If the error indication still does not turn off after pressing for a few times, consult your Alpine dealer. • Scratched disc, contaminated disc/poor recording/disc incompatible with this unit. - Press...
  • Page 69 - The indicator will disappear when the temperature returns to within operation range. • Malfunction in the CD Changer. - Consult your Alpine dealer. Press the magazine eject button and pull out the magazine. Check the indication. Insert the magazine again.

  • Page 70: Indication For Sat Receiver Mode

    - Refer to the iPod’s documentation and charge the battery. • There are no songs in the iPod. - Download songs to the iPod and connect to the IVA-D100. • Communication error - Turn the ignition key off, and then set to ON again.

  • Page 71: Specifications

    Specifications MONITOR SECTION Screen Size 6.5" LCD Type Transparent type TN LCD Operation System TFT active matrix Number of Picture Elements 280,800 pcs. (1200 × 234) Effective Number of Picture Elements 99.99% or more Illumination System Cold cathode fluorescent tube FM TUNER SECTION Tuning Range 87.7 –...

  • Page 72: Installation And Connections

    (e.g. on-board computer). Do not tap into these leads to provide power for this unit. When connecting the IVA-D100 to the fuse box, make sure the fuse for the intended circuit of the IVA-D100 has the appropriate amperage. Failure to do so may result in damage to the unit and/or the vehicle.

  • Page 73: Installation

    Connect each input lead coming from an amplifier or equalizer to the corresponding output lead coming from the left rear of the IVA-D100. Connect all other leads of the IVA- D100 according to details described in the Connections section.
  • Page 74 Installing the Power Amplifier This Power Amplifier is designed for use only with the IVA-D100. If products other than IVA-D100 are connected to the supplied Power Amplifier, its specified performance is not guaranteed. When mounting with Velcro fasteners When mounting the Power Amplifier with the Velcro fasteners, be sure to choose a flat location.
  • Page 75 • The diagram and the fuse amperage shown above are in the case when IVA-D100 is used individually. • If the switched power (ignition) lead of the IVA-D100 is connected directly to the positive (+) post of the vehicle’s battery, the IVA-D100 draws some current (several hundred milliamperes) even when its switch is placed in the OFF position and the battery may be discharged.

  • Page 76: Connections

    Connections Connection diagrams are shown on page 72 and 73. The explanation for leads, etc., is described on page 74. When connecting leads, read pages 72 to 74 carefully and connect correctly. <Monitor unit> <Power Amplifier> * Do not connect the power supply cable when the ignition is turned on or set to Accessory. (Yellow) (White) (Red)
  • Page 77 <Monitor unit> • Set the system switch to “Ai” when only a changer is connected (when the Ai-NET compatible equalizer is not used). * The label is attached on the bottom of the unit. CD changer (Sold Separately) To iPod REMOTE OUT To remote input lead (White/Brown)
  • Page 78 Parking Brake Lead (Yellow/Blue) Connect this lead to the power supply side of the parking brake switch to transmit the parking brake status signals to the IVA-D100. Foot Brake Lead (Yellow/Black) Connect to the vehicle's foot brake lead or brake lamp lead.

  • Page 79: System Example

    System Example Connect the Ai-NET compatible audio processor (Fiber digital compatible), Navigation system, DVD player and changer. NVE-N852A/NVE-N871A/NVE-N872A <Monitor unit> (Yellow) (Yellow) (White/Brown) (White/Brown) REMOTE OUT REMOTE IN • When the fiber optic compatible product is connected, it is necessary to set the mode of this unit. Refer to “Setting the Digital Output” (page 36) and set to ON.
  • Page 80 RGB Cable (Included with NVE-N852A/NVE-N872A, not included with NVE-N871A) Power Supply Connector RGB Input Terminal Connect this to the RGB output terminal of the Navigation System. System Switch When connecting an equalizer or divider using Ai-NET feature, place this switch in the EQ position. When no device is connected, leave the switch in the Ai position.
  • Page 81 When Connecting External Equipment (Yellow) <Monitor unit> (Orange/White) System Switch When connecting an equalizer or divider using Ai-NET feature, place this switch in the EQ position. When no device is connected, leave the switch in the Ai position. • Be sure to turn the power off to the unit before changing the switch position.
