Summary of Contents for Arris VMS1100
- Page 1 Self-Install Guide 13744_FiberOpticTV_SIG_0321_RB...

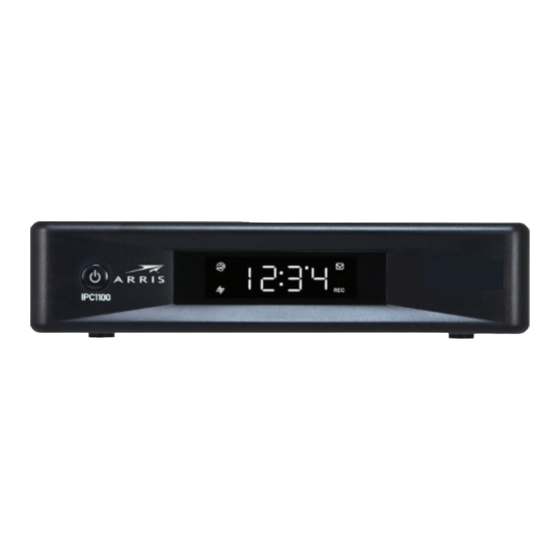

- Page 2 Frontier FiberOptic TV Equipment: ® VMS1100 IPC1100 FMS2 IP815 IPC4100 Step 1 | Internet Router Set Up .....................3 Step 2 | TV Equipment Set Up ....................4 Installing a DCT700 Digital Adapter .................5 Installing a CableCARD ......................6...
- Page 3 Step 1 | Internet Router Set Up Tips • For best Wi-Fi coverage, place your router in a central location • If you are also connecting TV equipment, install your router first If you received a MoCA adapter, follow Step A (the red connections) –OR—...
- Page 4 Step 2 | TV Equipment Set Up Tips • Your router must be connected to the internet before installing and activating your TV equipment • If you received a DVR device, this box must be installed/activated before the other Set-Top Boxes (STB) Connect the DVR/ BACK OF TV Connect your coax wall jack to:...
- Page 5 Installing a DCT700 Digital Adapter 1. Connect the coax wire from the wall outlet to the COAX IN port on the DCT700 Digital Adapter. 2. Connect the 2nd coax cable from the COAX OUT port on the DCT700 Digital Adapter to the TV coax port.
-
Page 6: Installing A Cablecard
Installing a CableCARD The Motorola/Arris CableCARD, also known as the M-Card (Multi-stream Card) is leased separately for those that wish to use CableCARD-ready devices (such as TiVO or HDHomeRun and some television manufacturers) versus a digital High Definition set-top box.
