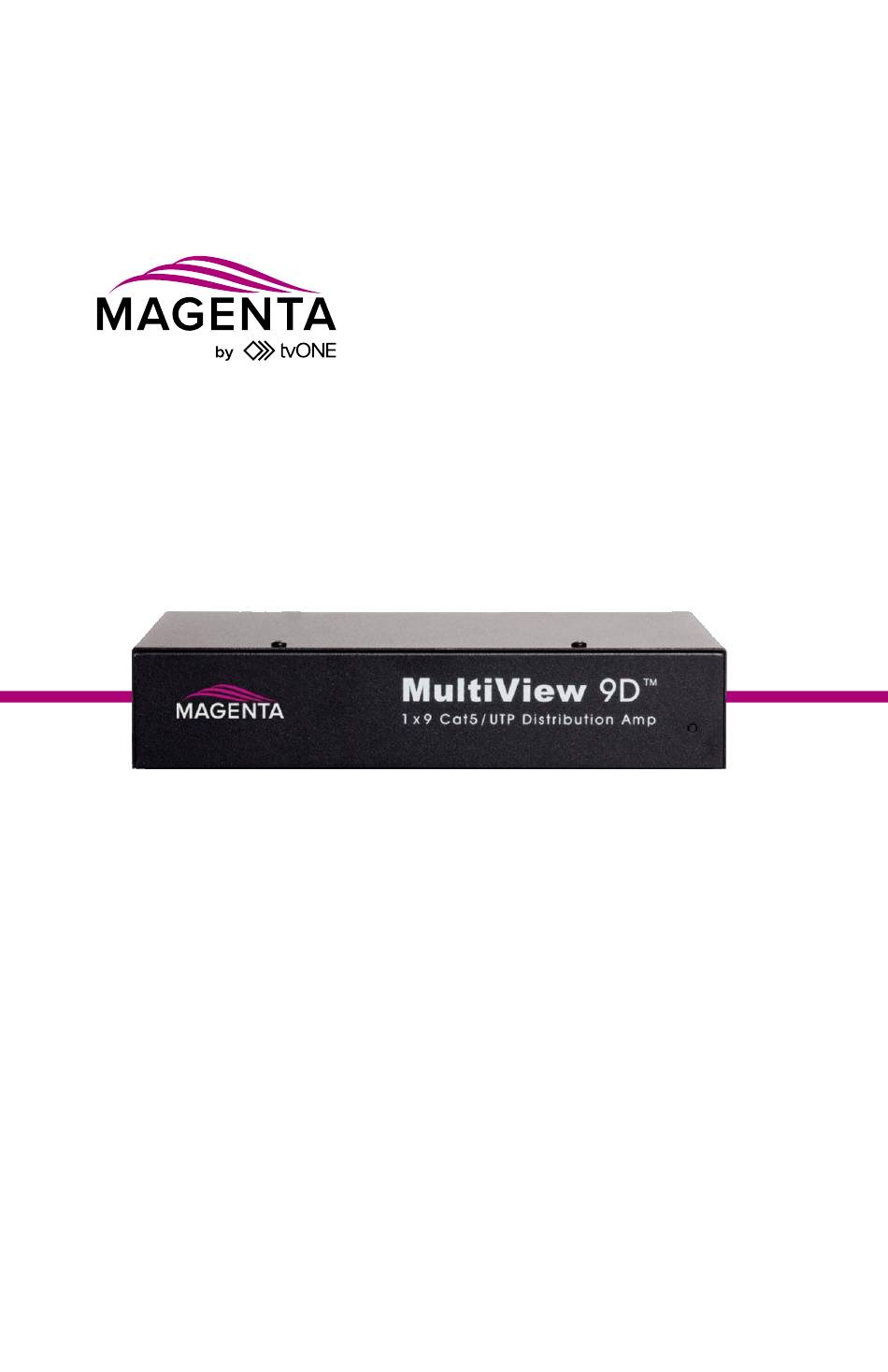

- Page 1 MultiView 9D Cat5 Distribution Amplifier Quick Start Guide V1.00 QSG-DA9-V1.00 Apr 2019...
- Page 2 In this guide About your Multiview D9 ................1 Cabling ......................1 Multiple devices ................... 1 Quick start ......................2 Troubleshooting and FAQs ................3 No video signal or poor video quality at the transmitter local port or at the receiver ....................3 Poor audio quality ..................
- Page 3 About your Multiview D9 The Magenta MultiView Series System extends video signals over ordinary Category 5 cable. All models use a transmitter-to-receiver setup. This device is not intended for, nor does it support, distribution through an Ethernet network. Do not connect this device to any sort of networking or telecommunications equipment.
- Page 4 The grounding is required in instances where LCD monitors are used that do not provide a ground via the DC power adapter. Failure to connect the ground cable may result in loss of video signals. tvONE...
- Page 5 Troubleshooting and FAQs In most cases, nearly every issue with the MultiView Series can be resolved by checking the CAT5 termination and making sure that it’s pinned to the TIA/EIA 568B wiring specification. However, there may be other problems that cause the system to not perform as it’s designed. Below are solutions to the most common installation errors.
- Page 6 MultiView™ CAT5 Video System devices must be the simplex serial type. Cabling tvONE...
- Page 8 Copyright © 2019 tvONE™. All rights reserved.
