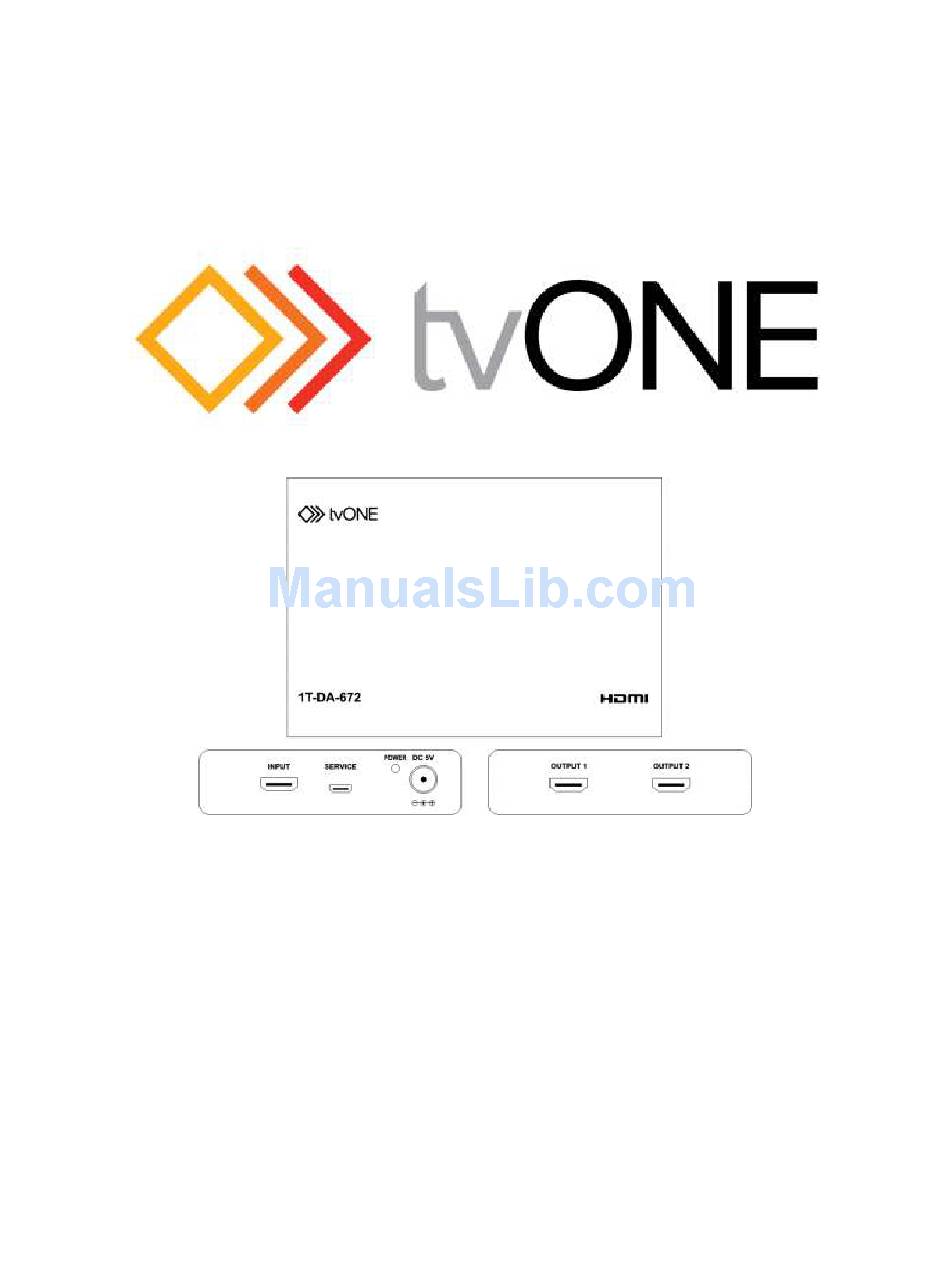

- Page 1 Instruction Manual 1T-DA-672 HDMI V1.4 Distribution Amplifier...
-
Page 2: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting the Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 3: Introduction
HDMI outputs can also be cascaded. Liability Statement Every effort has been made to ensure that this product is free of errors. tvONE cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user of the hardware to check that it is suitable for his/her requirements and that it is installed correctly. - Page 4 Features HDMI v1.4, HDCP 1.1 and DVI 1.0 compliant Allows distribution of 2 outputs Supports 3D video resolutions (Frame Packing, Side by Side) Supports 10/12-bit color depth display Supports PC resolutions to 4kx2k Supports HDTV resolutions to 1080p ...
-
Page 5: Specifications
15m (45’) for 1080p/8-bit, 10m (30’) for 1080p/12-bit DA to Display Warranty Limited Warranty 3 Years Parts and Labor Mechanical 1T-DA-672 (H-W-D) 25 x 102 x 145mm (1.0” x 4” x 5.7”) 1T-DA-672 Weight 0.298g (0.66 lbs.) Environmental Operating Temperature 0... -
Page 6: Checking Package Contents
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or tvONE immediately. Have the Model Number, Serial Number and Invoice available for reference when you call. -
Page 7: Operating The Unit
Connecting the Inputs to the Distribution Amplifier You can connect any HDMI compliant device’s output to the HDMI input. Make certain that the HDMI cable is securely plugged into the source device as well as the HDMI DA. Always use a high quality cable, as short a length as possible, for best results. Connecting the Outputs to the Destination Devices Using a high quality HDMI cable, connect the output of the HDMI DA to a HDMI compliant display devices. -
Page 8: Troubleshooting
If you experience problems using the 1T-DA-672 HDMI Distribution Amplifier, you should attempt to determine what is wrong by attaching each of the source devices – one at a time –... -
Page 9: Limited Warranty
The liability of tvONE with respect to any defective products will be limited to the repair or replacement of such products. In no event shall tvONE be responsible or liable for any damage... -
Page 10: Regulatory Compliance
REGULATORY COMPLIANCE The 1T-DA-672 HDMI distribution amp product has been tested for compliance with appropriate FCC and CE rules and regulations. The power adaptor/supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, regulations and/or guidelines. This product and power adapter is RoHS compliant.
