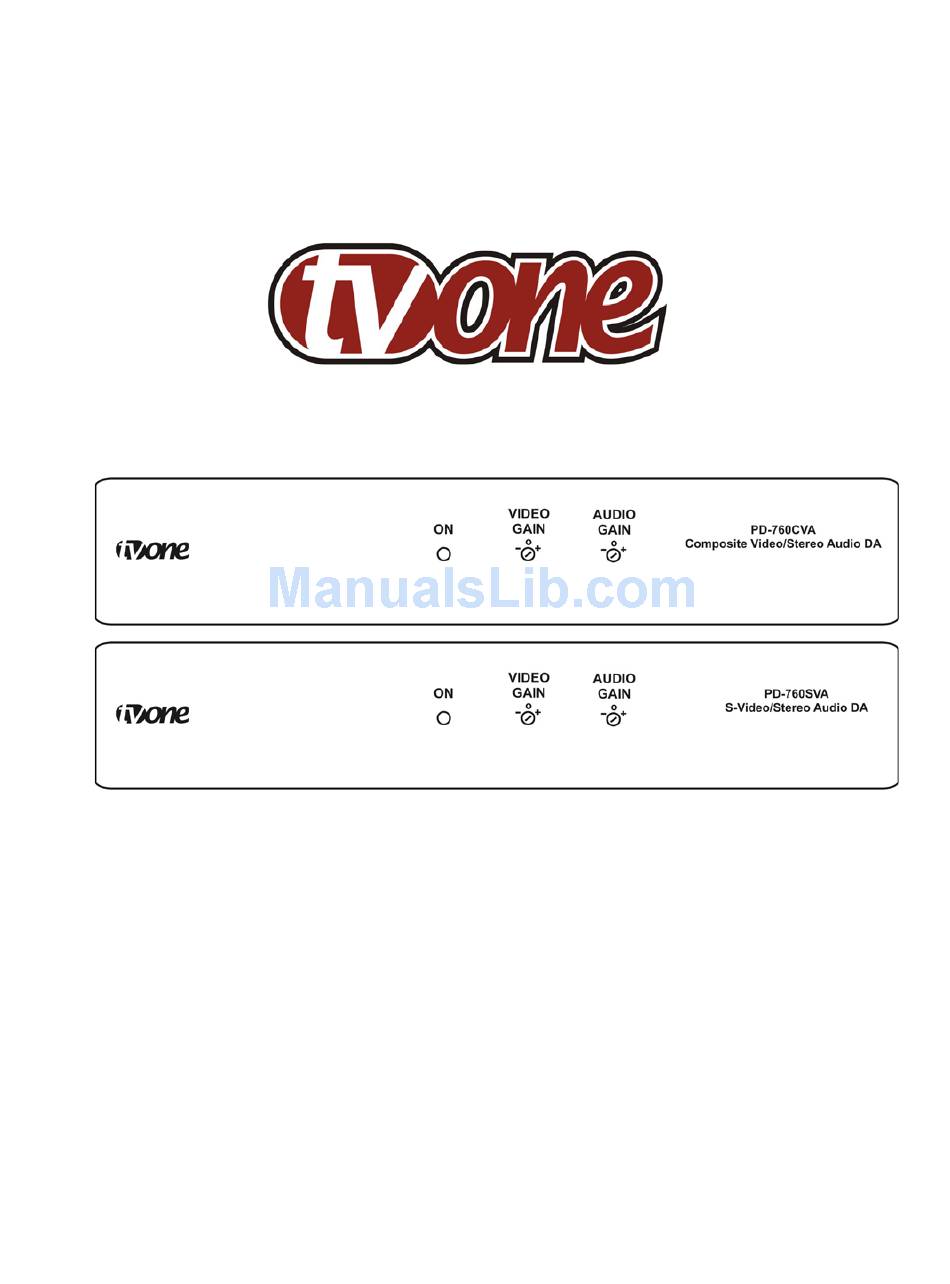

- Page 1 Instruction Manual PD-760CVA and PD-760SVA Video and Stereo Audio Distribution Amplifiers...
-
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting the Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 4: Introduction
INTRODUCTION Thanks for purchasing this Video and Stereo Audio Distribution Amplifier from TV One. The PD series D.A. is designed to distribute analog video and stereo audio signals to multiple destinations. Our professional video conversion products have been serving the industry for over twenty years. -
Page 5: Specifications
US, UK or Euro or Type 1 Set Audio Connectors Sufficient connectors to terminate all connections 1x Operations Manual Product Item Numbers PD-760CVA 1x4 Composite Video DA With Stereo Audio PD-760SVA 1x4 S-Video (Y/C) DA With Stereo Audio RM-200 Dual Rackmount Assembly... -
Page 6: Checking Package Contents
Before attempting to use this unit, please check the packaging and make certain the following items are contained in the shipping carton: • PD-760CVA/PD-760SVA Video Distribution Amplifier • 100/240 VAC@50/50 Hz to +12 VDC Power Adaptor • 6’ (2m) BNC to BNC or 6’ (2m) S-Video to S-Video •... -
Page 7: Operating The Unit
75 Ω load at the end of the loop. Connecting Power to the Unit The PD-760CVA and PD-760SVA are shipped with an AC Power Adapter to convert 100~240VAC@50-60Hz to +12 VDC. Connect the DC Output Cable from the Power Adapter to the back of the unit and then plug the Power Adapter into an AC Receptacle. -
Page 8: Troubleshooting
TV One. Should the dealer’s technical personnel be unable to assist you, contact TV One via our support website: http://tvone.crmdesk.com. Create a technical support request on the site and our support team will respond within a short period of time. -
Page 9: Regulatory Compliance
TV One makes no other representation of warranty as to fitness for the purpose or merchantability or otherwise in respect of any of the products sold. The liability of TV One with respect to any defective products will be limited to the repair or replacement of such products. -
Page 10: Contact Information
1350 Jamike Drive 2790 NW 79 Ave Erlanger, KY 41018 Miami, FL 33122 Tel 859-282-7303 Tel 305-418-9305 Fax 859-282-8225 Fax 305-418-3096 sales@tvone.com sales.latinoamerica@tvone.com www.tvone.com www.tvonela.com TV One Europe TV One Asia Continental Approach 10F, NO.34, Sec. 2 Westwood Industrial Estate... - Page 11 NOTES...
- Page 12 1350 Jamike Drive 2790 NW 79 Ave Erlanger, KY 41018 Miami, FL 33122 Tel 859-282-7303 Tel 305-418-9305 Fax 859-282-8225 Fax 305-418-3096 sales@tvone.com sales.latinoamerica@tvone.com www.tvone.com www.tvonela.com TV One Europe TV One Asia Continental Approach 10F, NO.34, Sec. 2 Westwood Industrial Estate...
