CONTROLSKY
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CONTROLSKY and is the answer not in the manual?

Questions and answers

Related Manuals for Exalux CONTROLSKY

Summary of Contents for Exalux CONTROLSKY

  • Page 1 CONTROLSKY USER MANUAL...
  • Page 2 EXALUX™ CONTROL SKY is a 5-in-1 wireless DMX controller ® especially designed to control up to 20 the SkyPanel with CONTROLONE sense and simplicity. CONTROL SKY works perfectly with all CRMX by LumenRadio™ Getting started... receivers. CRMX LINK/UNLINK CRMX Push 3s to unlink all CRMX devices...
  • Page 3 SKY CONTROL SKY APP allows to control the SkyPanel® when DMX P30 mode is set (CCT+GM, HSI, RGBW, (X,Y), Effects, Source Matching, Filters). PLAYER RECORDER RECORDER APP allows to record PLAYER APP allows to play the DMX memories that have been 512 DMX channels in real time.
  • Page 4 HOME HOME is the main screen when you switch on your CONTROL SKY. Touch the display or use the right knob to select an App. SELECT AN APP SELECT AN APP ENTER THE APP ENTER THE APP TO ENTER THE APP INFORMATION SCREEN...
  • Page 5 FADER FADER APP works the exact same way than your hardware DMX console you used for years. Every fader is linked to a DMX address. SET THE FADER SET MASTER LEVEL PREVIOUS FADER NEXT FADER SHORTCUT TO DMX FULL ON PAGE SET THE FADER LEVEL PREVIOUS FADER...
  • Page 6 RECORDER RECORDER APP allows to record all DMX frames received on the DMX input. You can record sequences with a maximum duration of 80 seconds at a frequency of 44Hz on one of the 8 memories. Recording stops automatically after 80 seconds. The recorded sequences can only be playback in the «PLAYER»...
  • Page 7 PLAYER PLAYER APP allows you to play the DMX memories that have been recorded with the FADER, RECORDER and SKY Apps. SELECT A BANK TO SELECT A MEMORY CHANGE THE MEMORY NAME TO SELECT A MEMORY BACK TO HOME...
  • Page 8 SKY APP allows to control the SkyPanel® when DMX P30 mode is set. Operation modes are : CCT+GM, HSI, RGBW, [X,Y], Effects, Source Matching, Filters. CONFIGURE FIXTURE UP/DOWN SCROLLING GENERAL SETTINGS FIXTURE SELECTION SET COLOUR 1 (UP TO 20) SET COLOUR 2 >2’’...

  • Page 9: Fixture Setup

    FIXTURE SETUP Allows to set the DMX operation modes : CCT+GM, HSI, RGBW, [X,Y], Effects, Source Matching, Filters for each colour 1 and colour 2. Please read the SkyPanel user manual before using the SKY APP . The SkyPanel must be set in DMX mode P30 before using the SKY APP .

  • Page 10: General Settings

    GENERAL SETTINGS Allows to set main parameters such as Strobe, Fan, CrossFade between colour 1 and colour 2 and Master. SET THE FADER SET MASTER LEVEL PREVIOUS FADER NEXT FADER CONFIGURE FIXTURE UP/DOWN SCROLLING GENERAL SETTINGS FIXTURE SELECTION SET COLOUR 1 SET COLOUR 2 >2’’...

  • Page 11: Colour Settings

    COLOUR SETTINGS Allows to set coulour parameters of colour 1 or colour 2 for the selected colour mode. SET THE FADER SET MASTER LEVEL PREVIOUS FADER NEXT FADER CONFIGURE FIXTURE UP/DOWN SCROLLING GENERAL SETTINGS FIXTURE SELECTION SET COLOUR 1 SET COLOUR 2 >2’’...

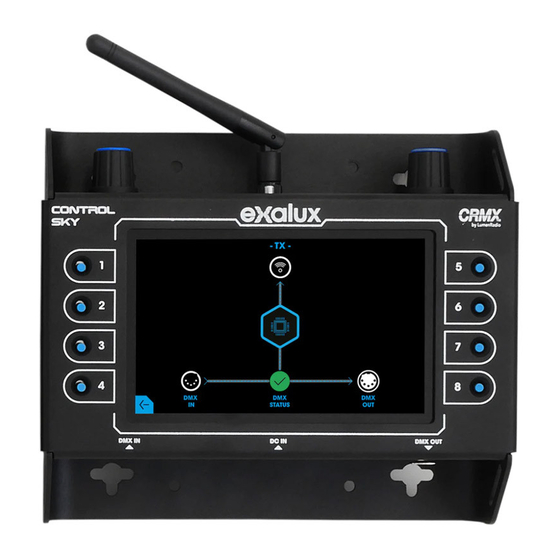

  • Page 12 TX APP turns the CONTROL SKY into a CRMX transmitter. The DMX data bytes received on the DMX input are wirelessly transmitted by the integrated CRMX transmitter. the CRMX transmitter is automatically switched on when the application is active. BACK TO HOME DMX INPUT STATUS...

  • Page 13: System App

    SYSTEM SYSTEM APP allows you to reset the memories, adjust the display brightness and set a pin code. SCREEN BRIGHTNESS SCREEN BRIGHTNESS 3’’ 3’’ RESET ALL RESET ALL FADER MEMORIES MEMORIES 3’’ RESET ALL RECORDER 3’’ MEMORIES RESET ALL SKY MEMORIES PIN CODE SET PIN CODE...

  • Page 14: Technical Specifications

    Lock / unlock function 5VDC (USB) | 10-24VDC (XLR4) Input / ~5W SPECIFICATIONS Runs up to 7h with 10Ah/36Wh PowerBank XLR5 DMX input (M) & output (F) 180x154x50 mm | 700g Fully compatible with EXALUX™ CONNECT * depending on the receiver...
  • Page 15 CONTROLSKY ECO-SYSTEM RX100s RECEIVER EXORAA iOS/Android DEVICES CONTROL SKY LEDMASTER NEO DIMMER RX100 RECEIVER CONNECT ONE DMX CONSOLE...
  • Page 16 DESIGNED MADE NANTES FRANCE DIMMING LIGHT CONNECT CONTROL EXALUX, 1 rue de la Noë 44322 Nantes Cedex 3 France | +33 9 72 45 70 43 | support@exalux.eu...
