Page 1

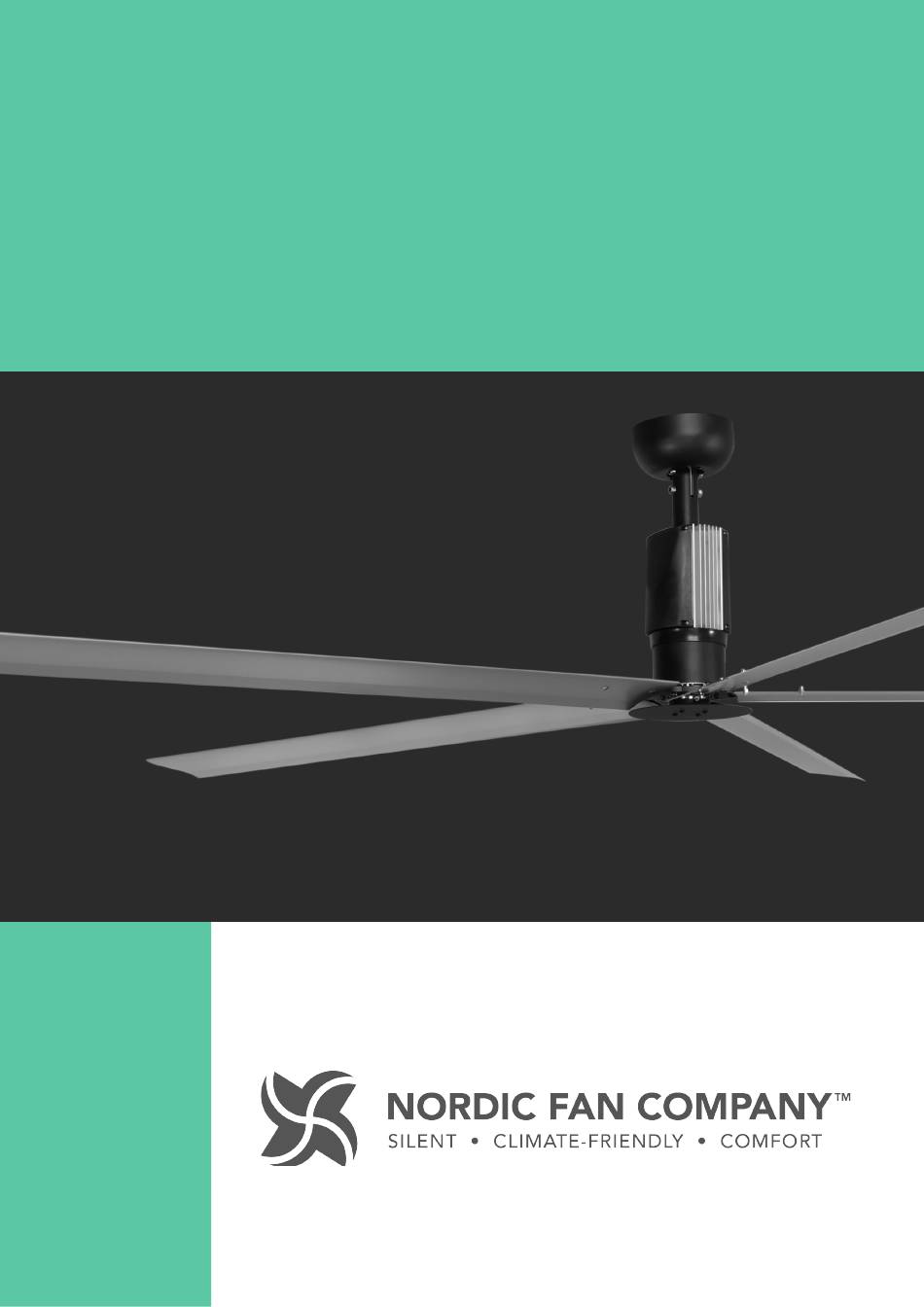

INSTALLATION MANUAL EXTRA MOUNTING OPTIONS NORDIC HVLS FAN SERIES ENGLISH Vers. 1.4...
Page 2
NORDIC HVLS Series The NORDIC HVLS Fan Series is a 230V/50Hz ‘Plug NORDIC HVLS Fan Series delivers maximum airflow & Play’ solution. It is the ideal choice for providing at a fraction of the operating cost of other HVLS fans.
Page 3
WARNING To reduce the risk of fire, electric shock, or injury to persons, observe the following: Use this unit only in the manner intended by the manufacturer. If you have questions, contact the Nordic Fan Company or its representative. Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally.
Page 4
Mounting brackets - i & H steel beams REQUIRED TOOLS 13 MM 13 MM SOCKET LIFT OR WRENCH WRENCH SOCKET WRENCH SCAFFOLDING WHAT'S IN THE BOX 2 pcs. M8x70 mm. bolts Mounting brackets for steel beams 2 pcs. M8 locknuts INSTALLATION PROCESS Place the brackets on each side of the steel beam and push the bolts through the 2...
Page 5
Mounting brackets - wood & concrete beams REQUIRED TOOLS 13 MM 5 MM 13 MM LIFT OR SOCKET DRILL WRENCH ALLEN KEY SCAFFOLDING WRENCH SOCKET WRENCH WHAT'S IN THE BOX Angle brackets Steel plate BOLTS BOLTS FOR CONCRETE SCREWS FOR SADDLE MOUNT SCREWS FOR WOOD BOLTS FOR STEEL PLATE 12 pcs.
Page 6
Mounting brackets - grid truss REQUIRED TOOLS 13 & 17 MM 13 & 17 MM SOCKET LIFT OR WRENCH WRENCH SOCKET WRENCH SCAFFOLDING WHAT'S IN THE BOX 2 Brackets for grid truss 4 pcs. M8x15 mm. bolts 4 pcs. M8 lock washers 2 steel plates 4 M10 locknuts INSTALLATION PROCESS...
Page 7
Stabilising wire set REQUIRED TOOLS 8 & 13 MM 8 & 13 MM SOCKET WRENCH WRENCH SOCKET WRENCH WHAT'S IN THE BOX Wire turnbuckles Wire clamps Snap hooks Eye hooks and plugs for concrete Mouting plate and M10x70 bolt with locknut Steel wire, 20 meter INSTALLATION PROCESS Once the mounting plate is attached...
Page 8
- as well as manuals in other languages can be downloaded from our website: www.nordicfancompany.com/manuals Address contact The Nordic Fan Company ApS +45 73 70 90 83 Snaremosevej 192A info@nordicfancompany.com 7000 Fredericia www.nordicfancompany.com...
