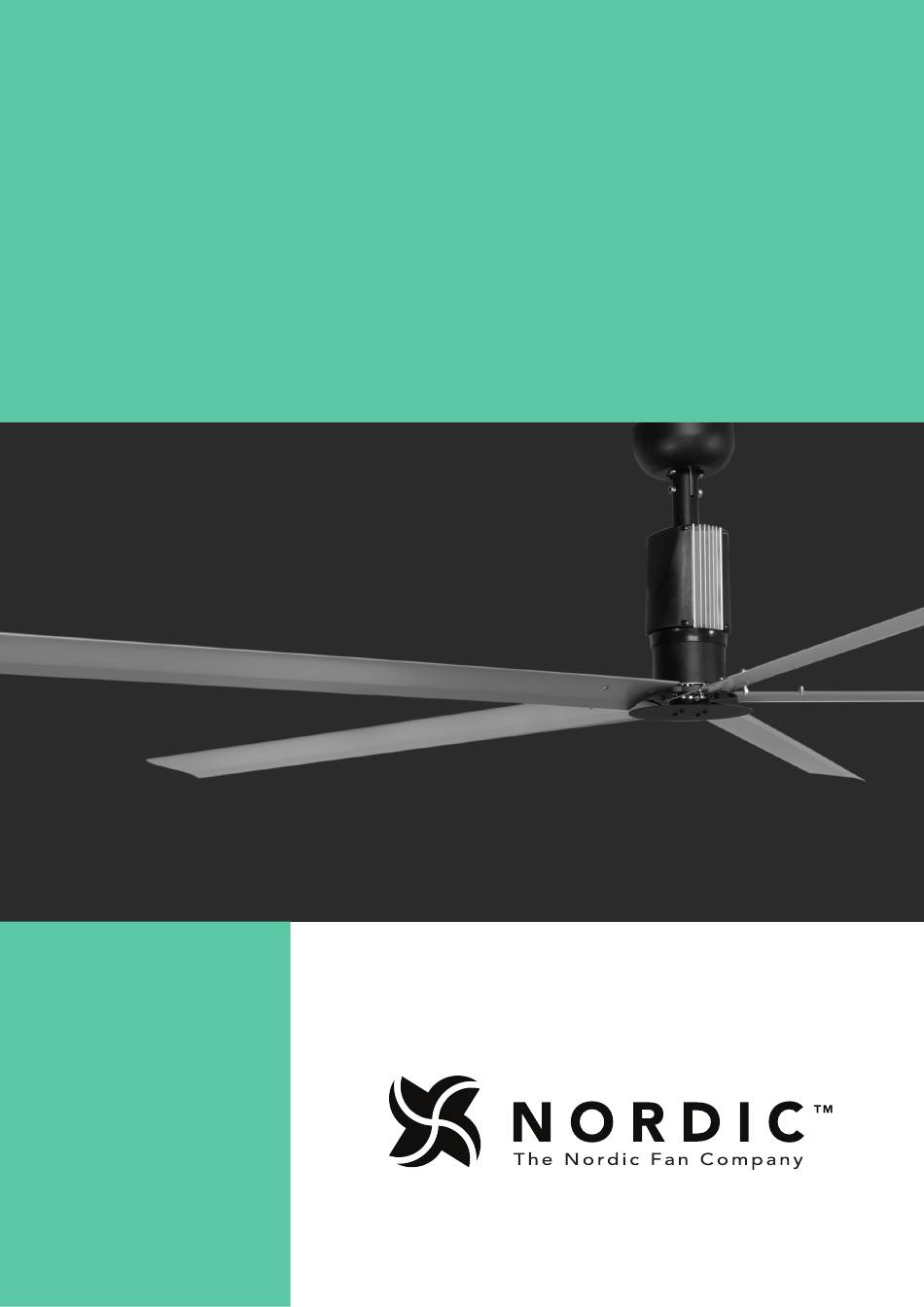

- Page 1 STANDARD INSTALLATION MANUAL NORDIC HVLS FAN SERIES ENGLISH Vers. 1.3...
-
Page 2: Table Of Contents
Featuring an aerodynamic air blade design and a high efficiency direct drive motor, the NORDIC HVLS Fan Series delivers maximum airflow at a fraction of the operating cost of other HVLS fans. With its universally designed ceiling mount it is optimised for simple plug-and-play installations, making it the easiest HVLS fan to install on the market. -
Page 3: General Safety Information, Pre-Installation Checks
WARNING To reduce the risk of fire, electric shock, or injury to persons, observe the following: Use this unit only in the manner intended by the manufacturer. If you have questions, contact the Nordic Fan Company or its representative. Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. -
Page 4: What's In The Box
what’s in the boxes? Swivel Mount Drop Tube Drive and Onboard Electronics Motor Controller Starfish Blade Hub 1,5m CAT 5E Cable with RJ45 Plug 3m (3 x 1,5 mm ) 230V power cable Fire alarm cable Mount Cover Safety Wire Safetywire Lock (Gripple) 2 x Extension Tubes 2 x Alu Extension Connectors... -
Page 5: Required Tools & Accessories, Standard Mounting
CAT 5E CABLE SCREWDRIVER SCREWDRIVER STANDARD MOunting Using the swivel mount, the NORDIC FAN SYSTEM can be mounted directly on to standard I and H steel beams, wood beams and concrete beams. This is done using relevant bolts and screws as shown on page 4 and explained on page 6. -
Page 6: Standard Installation Process
Standard Installation process Using the swivel mount as a template, If needed, attach one or two Extension Pull power cord, fire cable, safety wire, drill required holes in the mounting Tubes to the Drop Tube using the Alu CAT5e cable through the Extension Tube. beam (wood beams do not require Extension connectors. -
Page 7: Mounting & Securing Safety Wire
Mounting & securing safety wire Insert wire by pushing and twisting Pull wire through Pull wire around mounting beam, clockwise into and insert wire in - follow arrow direction Tighten wire. Cut or organize excess wire to ensure it does not interfere with fan performance. NOTE: THE SAFETY WIRE MUST BE INSTALLED. -
Page 8: Mounting The Air Blades
Mounting the air blades NOTE: Before mounting the air blades, ensure the fan is vertically and horizontally level. IMPORTANT: Do not operate the fan without the air blades mounted, as this may damage the motor and the motor drive. Slide air blade onto the starfish hub. Ensure air blade holes are directly over Secure air blade using screws and tools the starfish holes. -
Page 9: Connecting Power & Controller
CABLE. THEN CONNECT TO 230V SINGLE PHASE POWER SUPPLY, USING EXTRA POWER CABLE AS NEEDED. IMPORTANT: DO NOT CONNECT THE CAT 5E CABLE TO ANYTHING OTHER THAN THE NORDIC CONTROLLER BOX. DOING SO WILL SEVERELY DAMAGE THE FAN MOTOR AND DRIVE AND MAY POTENTIALLY CAUSE A... -
Page 10: Fire Alarm Relay Installation
FIRE ALARM RELAY INSTALLATION OPTIONAL FIRE ALARM RELAY INSTALLATION Pre-wired fire alarm landing point Note: This section is only applicable in 24 VDC buildings equipped with a fire suppres- sion system. For buildings without a fire suppression system, simply leave the fire cable untouched in the drop- tube.
