VC-S2000HM

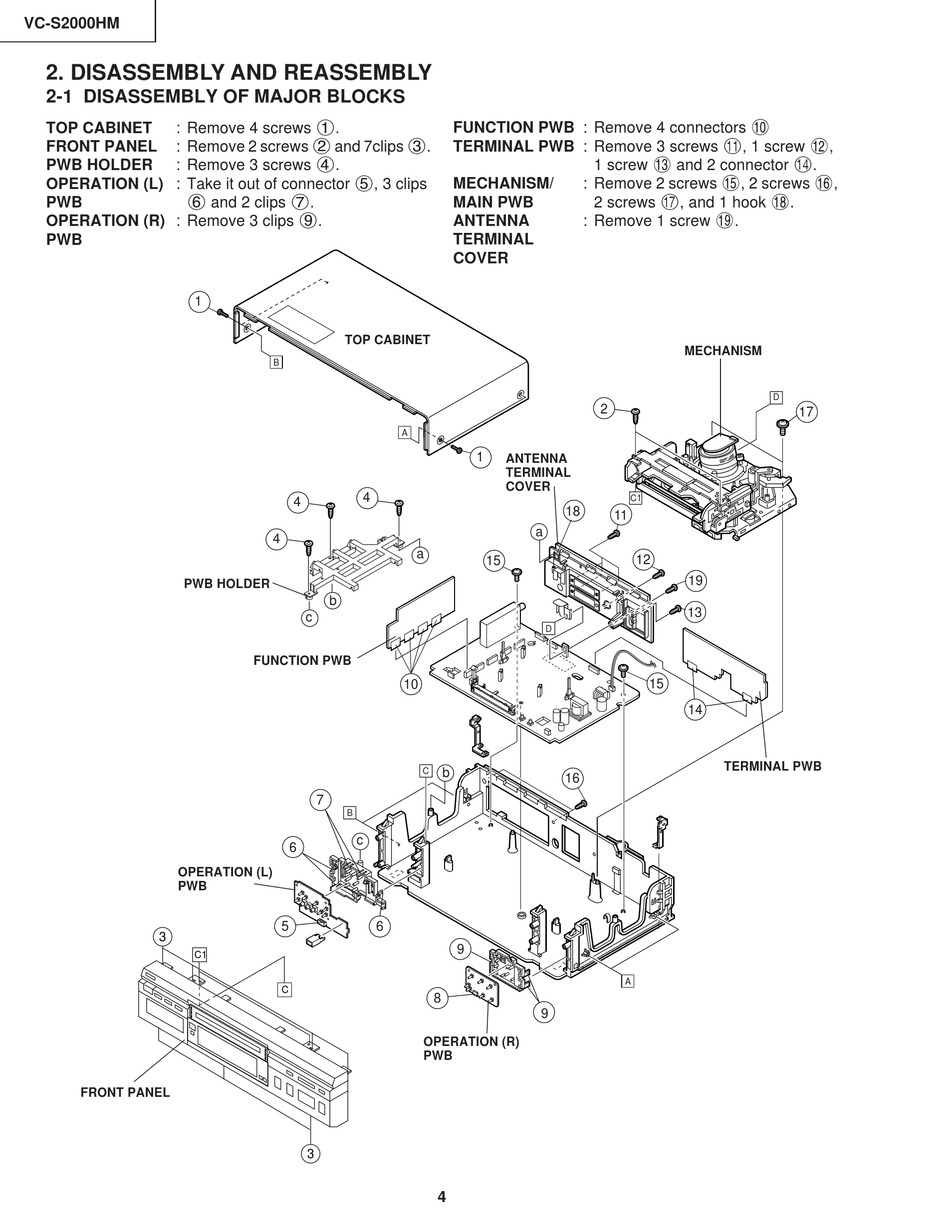

2. DISASSEMBLY AND REASSEMBLY

2-1 DISASSEMBLY OF MAJOR BLOCKS
: Remove 4 screws 1.
TOP CABINET
: Remove 2 screws 2 and 7clips 3.
FRONT PANEL
: Remove 3 screws 4.
PWB HOLDER
OPERATION (L) : Take it out of connector 5, 3 clips
6 and 2 clips 7.
PWB
OPERATION (R) : Remove 3 clips 9.
PWB
1
PWB HOLDER
OPERATION (L)
PWB
3
C1
FRONT PANEL
TOP CABINET
B
A
4
4
4
a
b
c
FUNCTION PWB
10
C
7
B
c
6
5
6
C
OPERATION (R)
PWB
3
FUNCTION PWB : Remove 4 connectors 0
TERMINAL PWB : Remove 3 screws q, 1 screw w,
1 screw e and 2 connector r.
: Remove 2 screws t, 2 screws y,
MECHANISM/
2 screws u, and 1 hook i.
MAIN PWB
: Remove 1 screw o.
ANTENNA
TERMINAL
COVER
2
1
ANTENNA
TERMINAL
COVER
18
a
15
D
b
16
9
8
9
4
MECHANISM
D
C1
11
12
19
13
15
14
TERMINAL PWB
A
17
