2. DISASSEMBLY AND REASSEMBLY

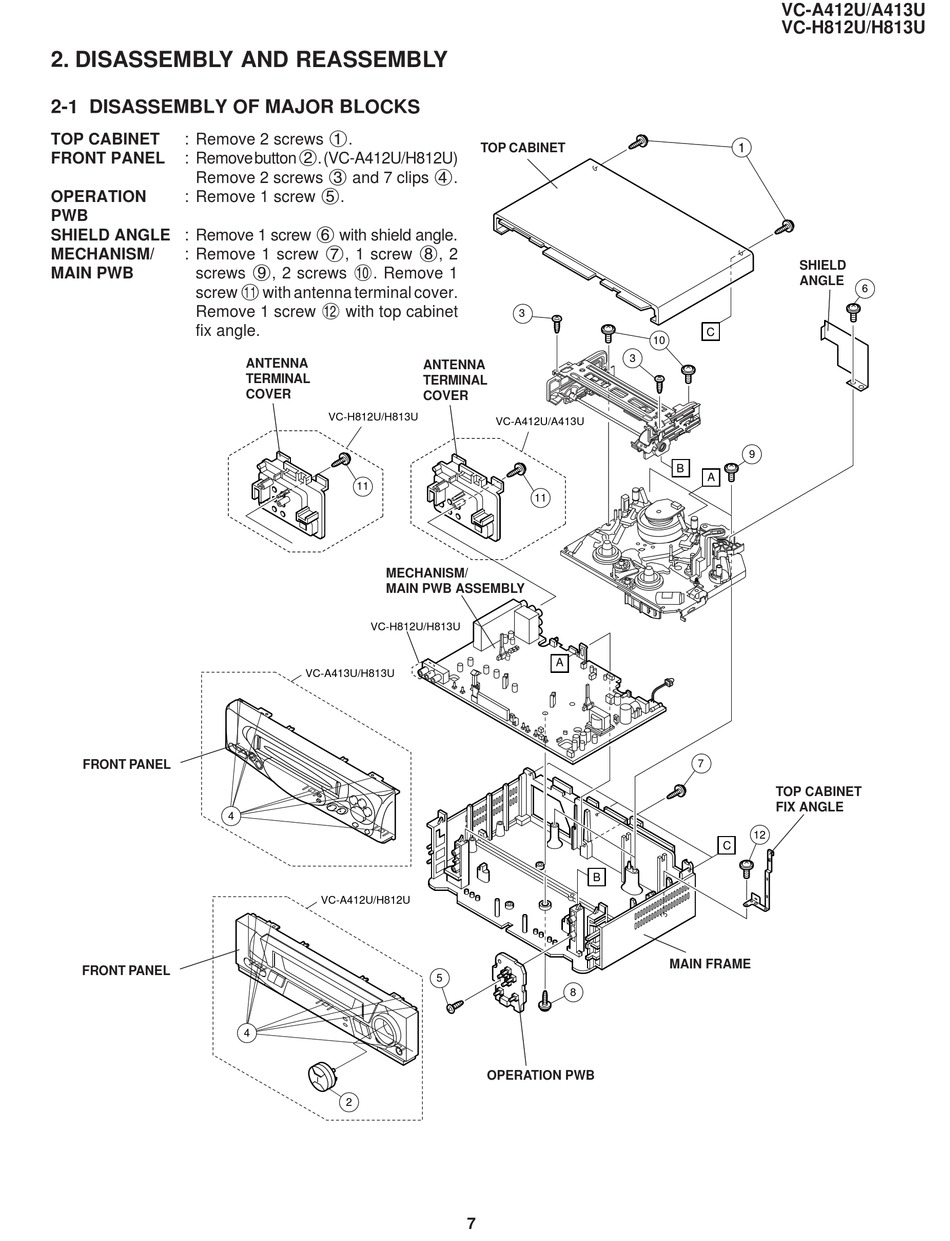

2-1 DISASSEMBLY OF MAJOR BLOCKS
: Remove 2 screws 1.
TOP CABINET
: Remove button 2. (VC-A412U/H812U)
FRONT PANEL
Remove 2 screws 3 and 7 clips 4.
: Remove 1 screw 5.
OPERATION
PWB
SHIELD ANGLE : Remove 1 screw 6 with shield angle.
: Remove 1 screw 7, 1 screw 8, 2
MECHANISM/
screws 9, 2 screws 0. Remove 1
MAIN PWB
screw q with antenna terminal cover.
Remove 1 screw w with top cabinet
fix angle.
FRONT PANEL
FRONT PANEL
ANTENNA
TERMINAL
COVER
VC-H812U/H813U
11
MECHANISM/
MAIN PWB ASSEMBLY
VC-H812U/H813U
VC-A413U/H813U
4
VC-A412U/H812U
4
2
TOP CABINET
3
ANTENNA
TERMINAL
COVER
VC-A412U/A413U
11
A
B
5
8
OPERATION PWB
7
VC-A412U/A413U
VC-H812U/H813U
1
SHIELD
ANGLE
C
10
3
9
B
A
7
TOP CABINET
FIX ANGLE
12
C
MAIN FRAME
6
