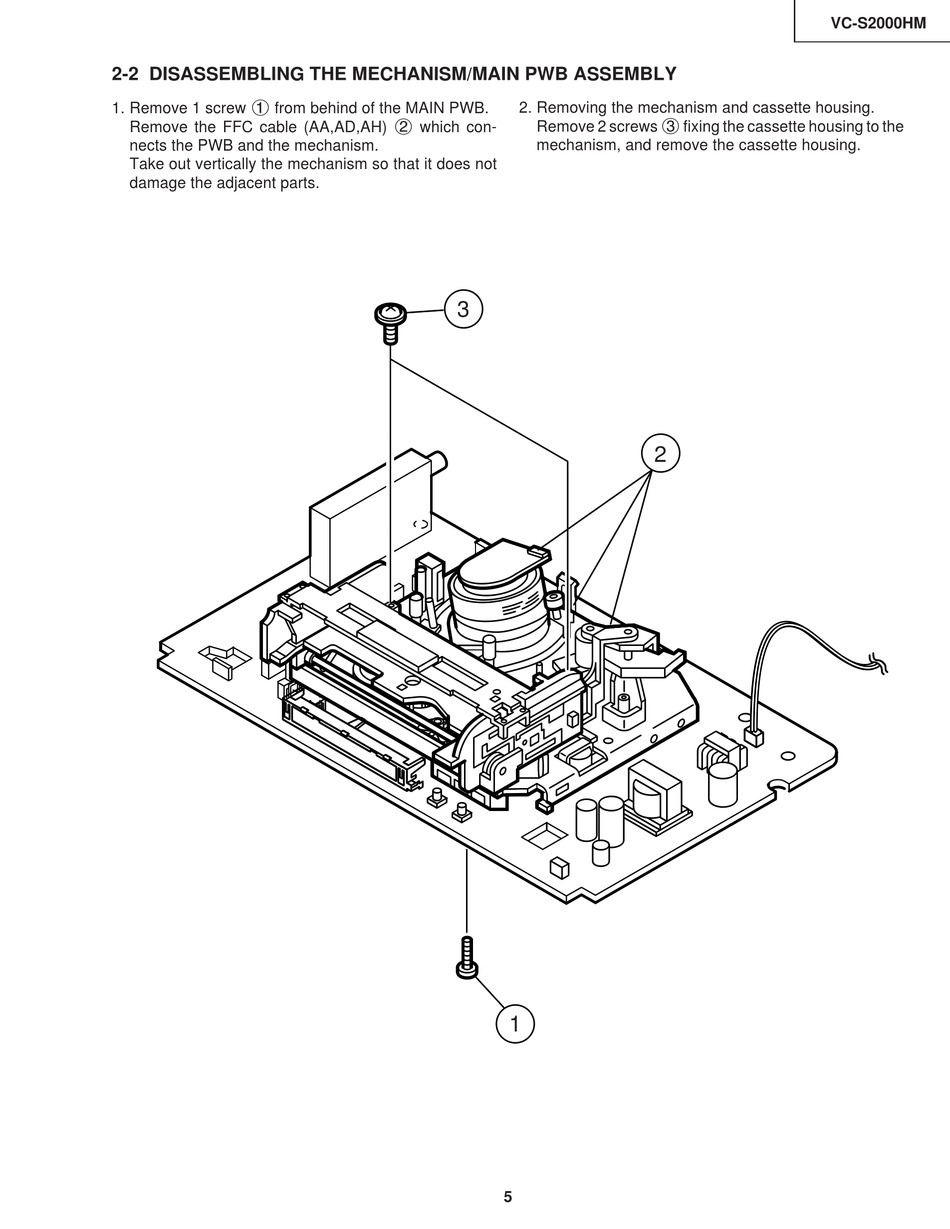

2-2 DISASSEMBLING THE MECHANISM/MAIN PWB ASSEMBLY
1. Remove 1 screw 1 from behind of the MAIN PWB.
Remove the FFC cable (AA,AD,AH) 2 which con-
nects the PWB and the mechanism.
Take out vertically the mechanism so that it does not
damage the adjacent parts.
2. Removing the mechanism and cassette housing.
Remove 2 screws 3 fixing the cassette housing to the
mechanism, and remove the cassette housing.
3
1
5
VC-S2000HM
2
