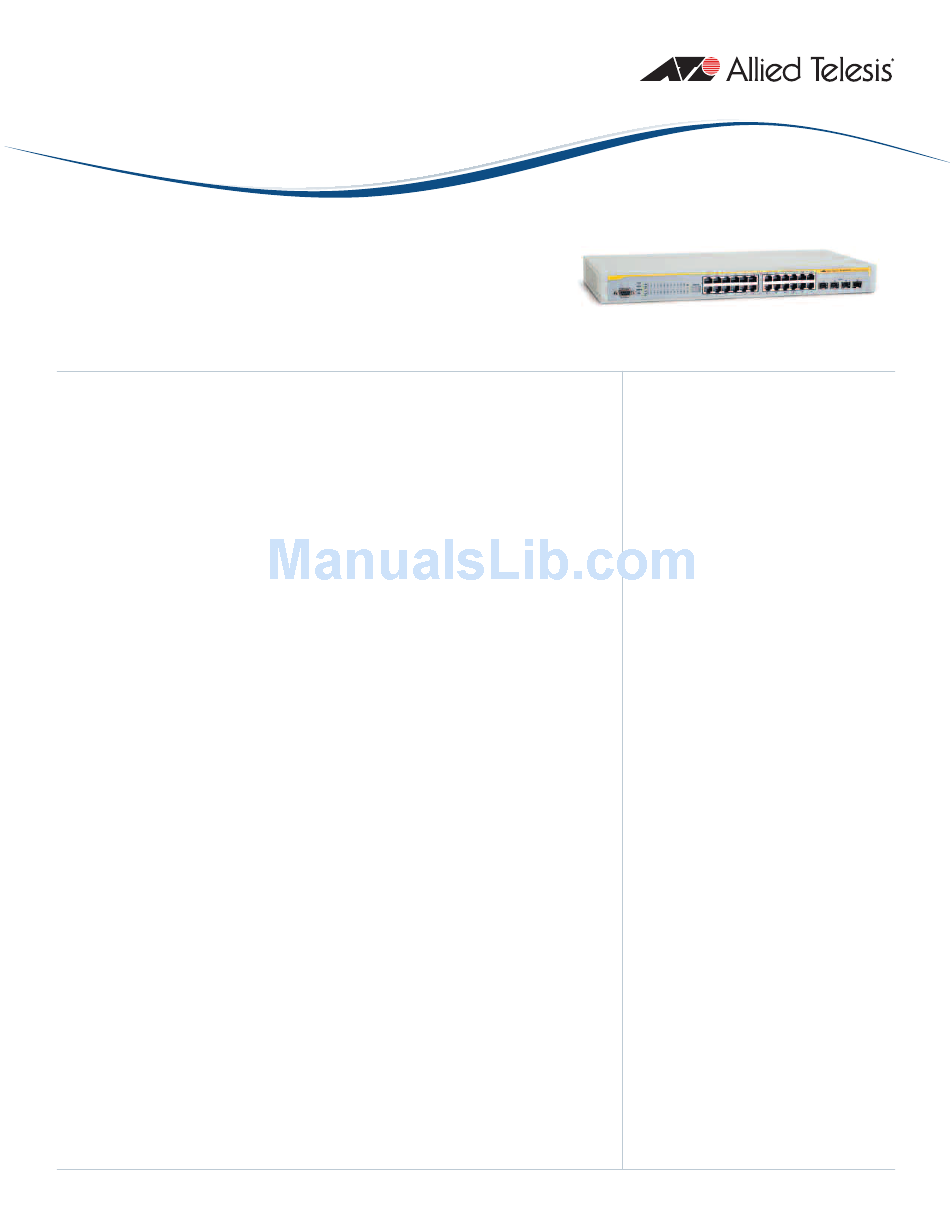

AT -9724TS
Managed Layer 3 Stackable Gigabit Ethernet Switch
AT -9724TS
24 port 10/100/1000TX stackable Layer 3+
Gigabit Ethernet switch + 4 SFP Combo
Performance
The AT-9724TS is an advanced Layer 3 switch
designed to meet the requirements of multime-
dia and bring traffic control and high perform-
ance to the edge of the network. With IP rout-
ing capabilities for investment protection and
flexible management, the AT-9724TS is designed
to be a cost effective solution for today's market
with the ability to expand as network demands
grow.
Specially designed for high-performance desktop
edge connectivity, workgroup, midsized net-
works, campus and metro access edge, the AT-
9724TS provides Layer 3 functionality to sup-
port converged services like voice and video,
which are becoming more and more integrated
into data networks. When stacked, up to 288
ports of Gigabit Ethernet can be achieved, pro-
viding enough performance for medium enter-
prises, multi-unit buildings, hospitals, schools, and
colleges.
Utilizing a powerful switch fabric, the AT-9724TS
passes traffic reliably and efficiently with wire-
speed performance and non-blocking architec-
ture.The integrated stacking modules pass data
packets at an impressive backplane speed of
40Gbps.
Rich Feature Set
A rich set of features is incorporated into the
AT-9724TS to provide full support for multime-
dia Layer 3 applications. All switches include
advanced features to provide QoS/Cos,VLAN
and Security, including 8 priority queues for
802.1p/ToS/Diffserv. Layer 3 routing features
include: RIPv1/v2, OSPFv2, PIM-DM, PIM-SM,
DVMRP and VRRP. Security features include
MAC-address,IP-address, or TCP/UDP-based
Access Control Lists; 802.1x MAC-based
Allied Telesis
authentication and 802.1x Port-based authenti-
cation.VLAN support includes port-based
VLANS(up to 255 static groups per device)
GARP/GVRP, and 802.1q.
Stackability
Up to 12 Switches can be stacked together for
Ring mode. Users can add units to reach maxi-
mum 288 GbE ports per Ring stack. Switches
are stacked together through dedicated 2 x 10G
ports with high-speed stack cables for a total of
40Gbps that provide high speed of multiple
Gigabit connections, allowing the entire stack to
perform as a single IP entity. Users can see the
number of switches stacked together from
seven-segment display on the unit's front panel.
Scalability
Each switch supports four optional SFP connec-
tors, which allow the switched network to be
extended with fiber optic cabling. In turn, the
10Gbps stacking interfaces support flexibility
and long-term network growth.
Management & Availability
The AT-9724TS has an integrated management
agent, which provides an embedded web server,
SNMP, RMON, console telnet capabilities.
The AT-9724TS supports stacking of up to 12
units in a highly resilient ring-architecture via
integrated rear 10-Gbps stacking ports.
Additional protection from down-time comes
in the form of an optional redundant power
supply, 802.3ad Link Aggregation, 802.1d
Spanning Tree, 802.1w Rapid Spanning Tree
and 802.1s Multiple Spanning Tree.
Key Features
Stack Up to 288 Ports
• 40Gbps dedicated stack ports (2 x 10Gbps ports)
88Gbps Switching Fabric, 65.5Mpps
• Wirespeed Layer 2 to 3 filtering
• Wirespeed Layer 2 switching
• Wirespeed Layer 3 IP routing
Flexible, Modular Design
• 4 SFP bays for fiber media
• 1RU Form Factor
Advanced Performance Features
• Full QoS for multimedia applications
• Eight Priority Queues Per Port
• GVRP VLAN Support
• Supports up to 4000 VLANs
• Jumbo Frames up to 9000 bytes
• IEEE 802.1s Multiple Spanning Tree Support
• IEEE 802.3ad link aggregation (LACP)
Routing
• IEEE RIP v1/v2
• OSPF
• IGMPv1 and IGMPv2
Management
• SNMP Support
• RMON Support
• Port Mirroring
Security
• Port Security
• SSH
• SSL
• TACACS/TACACS+
• RADIUS Authentication
• Access Control Lists
Assurance
• Redundant Power Supply Option
• Two Year Warranty
• Resilient Ring Stacking
• 802.3ad (LACP)
• 802.1s (MSTP)
• 802.1w (RSTP)
