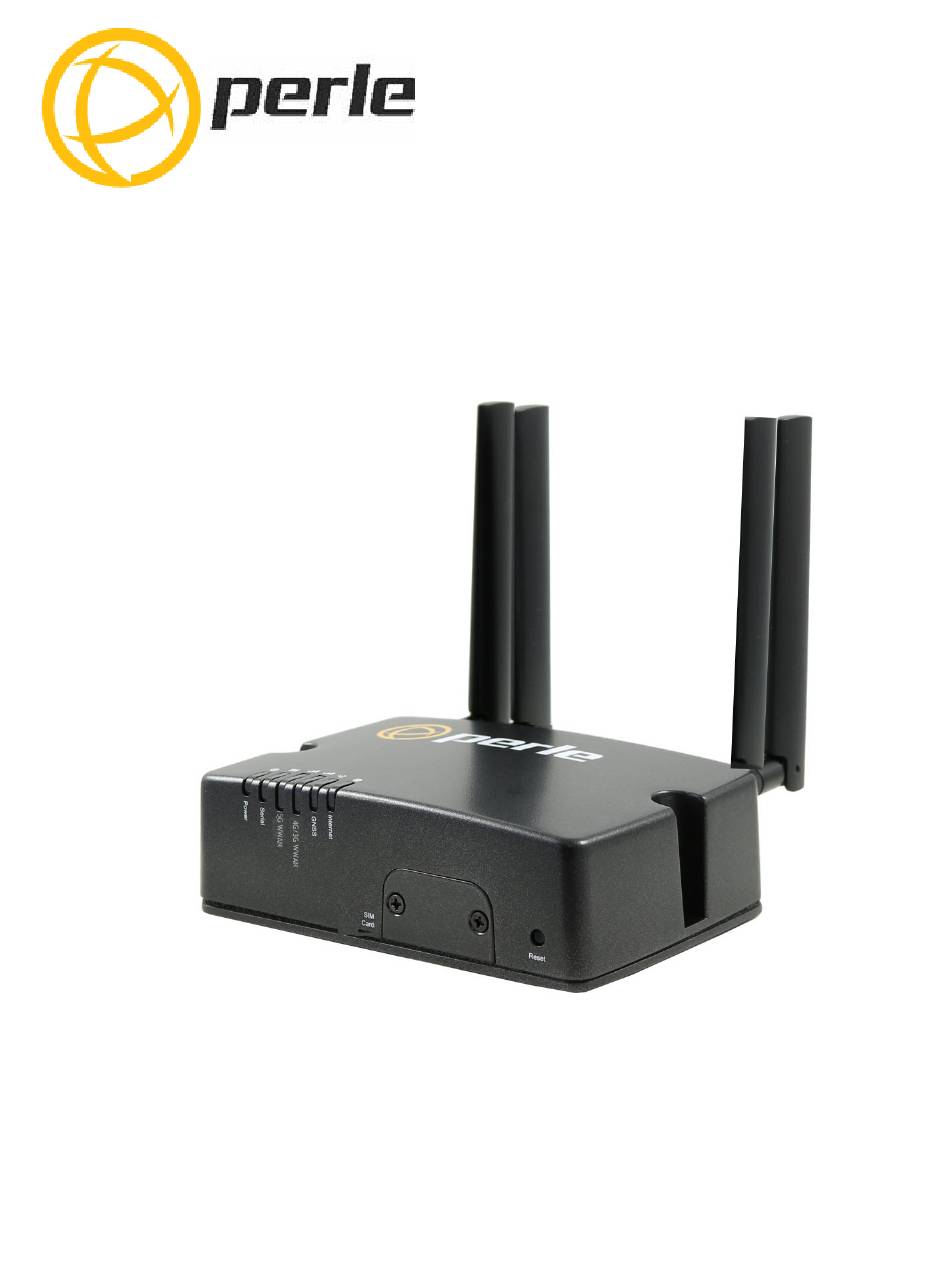

- Page 1 Perle IRG7440 5G/LTE Cellular Router Updated: January 2022 Version A.01.23,2022 Document Part#:5500486-10 www.perle.com...
-
Page 2: Preface
Routers. It covers hardware features as well as installation and operation. This document does not cover how to configure your Perle IRG7440 router. Information to configure your Perle router can be found in the Perle IRG7000/5000 5G/LTE Router User’s Guide and the Perle IRG7000/5000 5G/LTE Router Command Line Reference Guide on the Perle website. - Page 3 Preface Additional Documentation Document Description Perle IRG7000/5000 5G/LTE Router User’s guide explaining how to configure the IRG7440 User’s Guide features using the Web Manager application. New users should use this method to configure the router. Perle IRG7000/5000 5G/LTE Router Command Line Interface Reference Guide using CLI...
- Page 4 Perle IRG7440 series router even if Perle has been advised or the possibility of such damages or they are foreseeable or for claims by any third party.
- Page 5 IRG7440 Series of Routers as indicated on the product label. Avertissement: Assurez-vous que les valeurs nominales de tension et de courant de la source d'ali- mentation prévue conviennent aux routeurs de la série IRG7440, comme indiqué sur l'étiquette du produit. Warning: Ensure that the installation and electrical wiring of the equipment is performed by trained and qualified personnel and that the installation complies with all local and national electrical codes.
- Page 6 Copyright ©2022 Perle. 60 Renfrew Drive, Markham, Ontario, L3R 0E1, Canada All rights reserved. No part of this document may be reproduced or used in any form without written permission from Perle. Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide...
- Page 7 Publishing History Date Revision Update Details March 2020 A.03.23.2020 Initial release. Dec 2020 A.12.31.2020 Updates June 2021 A.03.06.2021 Update to label Jan 2022 A.01.30.2022 Added IRG7440 model (5G) and updates to other models Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide...
-
Page 8: Table Of Contents
Managing the IRG7440 ........ - Page 9 Appendix C—Mounting the IRG7440 ........
-
Page 10: Overview

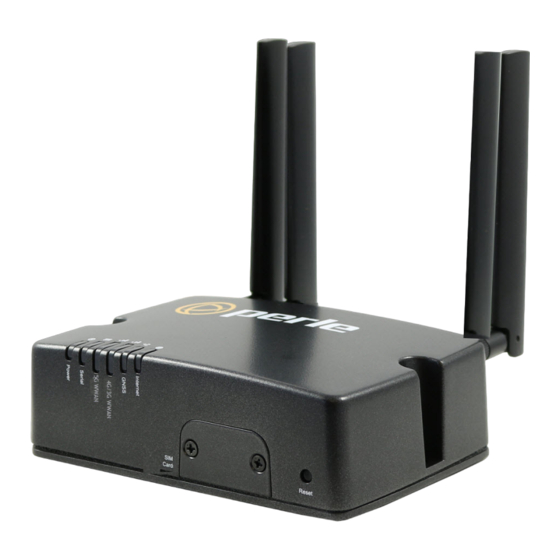

Overview Overview The Perle IRG7440 routers are generically referred to as the IRG7440 in this guide. The IRG7440 router is a compact, rugged, fully featured communications platform for real-time wireless capabili- ties. It has multiple communication ports including Serial, Ethernet, and a USB port . It supports 5G/LTE wireless solutions for both fixed and mobile applications (IoT). - Page 11 Factory Reset Red—solid Red—solid When you press and hold the reset button for 20 seconds. The solid red indicates the time to release to imitate reset to factory. Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide...
- Page 12 Connection in Green, amber or Signal strength flash. progress red flashing Not connected Green, amber, or Signal strength blip. or not red blips connecting Function Normal Low Power Meaning 4G/3G WWAN Mode Disabled Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide...
- Page 13 GPS fix Green—solid Off—green solid for 5 seconds then Internet Function Normal Low Power Meaning Mode Disconnected No connection by intention disabled or radio disconnect requested Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide...
-
Page 14: Sim Card
The IRG7440 supports one SIM card. See Inserting the SIM card for the installation procedure. Antenna/s The IRG7440 has four SMA antenna connectors, Main, Div/GNSSL1, MIM01 and MIM02. For more information on connecting the antennas see Connecting the 5G/LTE Antenna/s. For more information... -
Page 15: Ethernet Lan Ports
Pin 3—IGN can be configured as vehicle ignition sense or as analog input. Warning: Before servicing this product ensure the power source has been disconnected. Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide... - Page 16 Alternatively it can be used simply as an analog input. GPIO Green User configurable digital input/output or GPIO analog voltage sensing input. Connect to switch, relay or external device. Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide...
-
Page 17: Aux/Io
The Router has one Normally Open (NO) relay (Pin 5 and Pin 1). The relay switch can be connected to an external powered device such as a siren or light to provide visual or audible notification of an alarm status. Ensure the power source is off prior to connection. Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide... -
Page 18: Installation
Inserting the SIM card The IRG7440 comes with one SIM socket for a mini-SIM (2FF) card. Note: Ensure the power is disconnected before you insert the SIM card. 1. Using your Phillips screwdriver, removed the cover from the panel covering the SIM slot. -
Page 19: Connecting The 5G/Lte Antenna/S
Installation Connecting the 5G/LTE Antenna/s The IRG7440 has four SMA female antenna connectors: • Main Cellular antenna connector • DIV/GNSS L1 antenna connector • GNSS connector • MIM01 Cellular antenna connector 1. MIM02 Cellular antenna connectorConnect a Cellular antenna to the SMA antenna connector labeled Main. -
Page 20: Female Serial Pin Out
PC. 6. Press the Enter key on the keyboard and the prompt will display. See the Perle IRG7000/5000 5G/LTE Router CLI Reference Guide for more information on using CLI commands. Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide... -
Page 21: Connecting The Power
Installation Connecting the Power The wire colors shown are for the power/GPIO cable that is included with the IRG7440. Other wiring setups may have different colors. See SpecificationsIf you are using a cable Appendix A—Technical that is longer than two meters, we recommend the following: Wire gages (AWG): •... -
Page 22: Operation
Safe Mode Press the Reset button All LEDs, except Saves the startup config while powering up Power blink Boots with no config file Amber Allows you to do setup mode Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide... -
Page 23: Fast Setup
Fast Setup mode allows you to quickly configure basic operating parameters on your router. Your Perle router has been shipped to you in Factory Default mode. On power up, your router is in “Fast Setup” mode with the Power LED flashing green. Make a connection to your router via the con- sole port or a Web browser, then answer basic setup operating parameters such as your initial user ID and password. -
Page 24: Managing The Irg7440
A text-based Command Line Interface based on industry standard syntax and structure. The CLI is accessed from the console port. Once a valid IP address is configured on the IRG7440, Telnet, SSH, or the WebManager interface is used to access the IRG7440 for administration purposes. See the Perle IRG7000/5000 5G/LTE Router CLI Reference Guide for more information. -
Page 25: Power Management
(Wakeup). Smart Standby Mode You can configure a combination of one or two user defined conditions to determine when the router is powered up and when it goes into Standby mode. Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide... - Page 26 Note: up to 0.08A 1W more in power savings can be achieved through shutting down the USB port, LEDs, GPS as well as turning down router processor speed. Note: To configure Power Modes, more information can be found in the Perle IRG7000/5000 5G/LTE Router User’s Guide found on the Perle website.
-
Page 27: Irg7440Fixed Installation Without I/O
IRG7440 enters Standby mode. Configure a time delay between the vehicle’s ignition shut off, and the time the IRG7440 goes into Standby mode. A delayed Standby is used if you want to maintain a network connection while the vehicle’s engine is shut off for short periods of time—such as in a delivery vehicle. -
Page 28: Fixed Installation With Analog Input
• Pin 4 (GPIO)— In this example, the GPIO (green) used as an analog input to enter and exit Standby Mode. For more information on configuring Standby Mode, Timed Standby Mode and Event Handing see the Perle IRG7000/5000 5G/LTE Router User’s Guide. Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide... -
Page 29: I/O Configurations
The voltage on Pin 4 when the high side pull-up is enabled (depends on the Vin and power consumption. Minimum Typical Maximum Units Source Current = 12 V = 36 V = 7 V Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide... -
Page 30: Digital Output / Low Side Current Sink
Digital Output / Low Side Current Sink Use Pin 4 - GPIO as a low side current sink. State Minimum Typical Maximum Comments 200mA 850mA I_Typical = 25°C I_Min = 70°C I_Max = -40°C ––– ––– Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide... -
Page 31: Digital Output / Open Drain
Digital Output / Open Drain You can use Pin 4—GPIO as an open drain to drive an external digital device. Pull-up State Minimum Typical Maximum Units Open Circuit ––– ––– ––– Active Low ––– ––– Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide... -
Page 32: Aux /I/O
Digital input can also be used with the Standby Timer. Pull-up State Minimum Typical Maximum Units ––– ––– High ––– Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide... -
Page 33: High Side Pull-Up / Dry Contact Switch Input
*Depending on the load, this value can range from Vin to Vin -2.5 Minimum Typical Maximum Units Source Current = 12 V = 36 V = 7 V -2.5 ––– Relay Alarm Normally Open (NO) dry contact 1A@24VDC Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide... -
Page 34: Appendix A-Technical Specifications
Dimensions: 41.9 x 47.3 x 16.3 mm / 1.65 x 1.86 x 0.64 in RG-174 Cable length: 5m / 16ft LAN standards IEEE 802.11ac complaint & backward compatible with 802.11a/b/g/n Ignition Sense Analog Input: 0.5V to 36V Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide... - Page 35 -40°C to 85°C (40°F to 185°F) Operating Humidity Ranges 0% to 95% non-condensing Storage Humidity Ranges 0% to 95% non-condensing Operating Altitude Up to 3,048 meters (10,000 feet) Regulatory Approvals Cellular/Telecom FCC/ICES, RED, PTCRB/CTIA,CE Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide...
- Page 36 EN 61000-4-6: 2013 (CS) EN 61000-4-8: 2009 (PFMF) EN 61000-4-9: 2016 (PMF) EN 61000-4-11: 2004 + A1:2017 EN 61000-4-16 EN 61000-6-2 (General Immunity for Industrial Environments) Safety UL/ULC/EN 62368-1 (including CB) CAN/CSA-C22.2 No. 62368-1-14 Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide...
- Page 37 704~960 /1710~2700 MHz 3300 MHz / 5150 ~ 5850 Impedance 50 OHM Peak Gain 1.78 dBi @ 699~960 MHz 2.95 dBi @ 1710~2700 MHz 0.95 dBi @ 3300 MHz 3.07 dBi @ 5150-5850 MHz Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide...
-
Page 38: Appendix B-Sample Labels
Appendix B—Sample Labels Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide... -
Page 39: Appendix C-Mounting The Irg7440
1. Attached the two DIN Rail screws to the holding plate. The DIN rail can be positioned either with the snap on connector in the down or up position on the holding plate in the up position. Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide... - Page 40 3. Position the router such that the top hooks of the DIN rail clip attach onto the top of the DIN rail. 4. Rotate the bottom of the router towards the rail. This will snap the bottom hooks of the DIN rail clip onto the bottom of the DIN rail. Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide...
-
Page 41: Appendix D-Mechanical
Appendix D—Mechanical Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide... -
Page 42: Appendix E-Maintaining And Troubleshooting
• Ensure cables are not bent, constricted, close to high amperages, or exposed to extreme temperatures • Check that the Front panel LEDs are easily visible • Wipe case clean with a dry cloth—do not use solvents or cleaning agents Perle IRG7440 5G/LTE Cellular Router Hardware Installation Guide...
