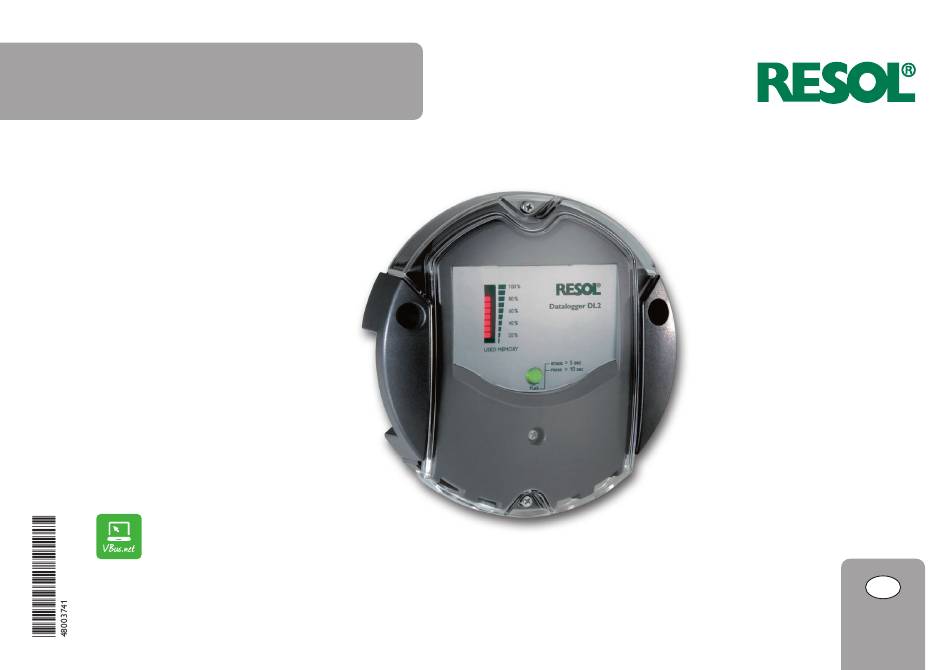

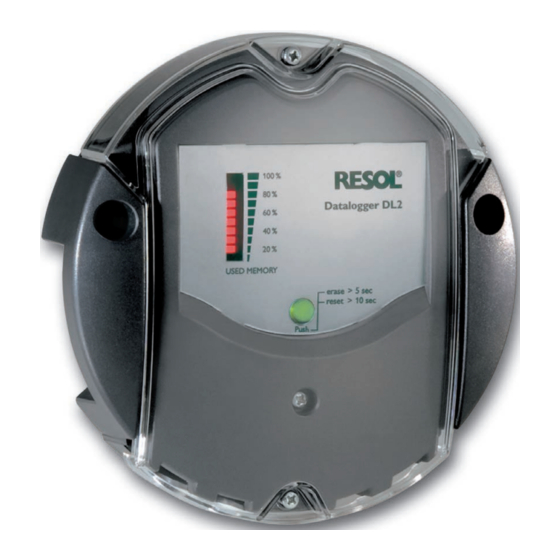

Datalogger DL2
beginning with firmware version 2.2.0
Mounting
Operation
Web interface
The Internet portal for easy and secure access to
your system data – www.vbus.net
Thank you for buying this RESOL product.
Please read this manual carefully to get the best performance from this unit.
Please keep this manual carefully.
en
Manual
www.resol.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL2 and is the answer not in the manual?

Questions and answers

Related Manuals for Resol DL2

Summary of Contents for Resol DL2

  • Page 1 Web interface The Internet portal for easy and secure access to your system data – www.vbus.net Thank you for buying this RESOL product. Manual Please read this manual carefully to get the best performance from this unit. Please keep this manual carefully.
  • Page 2 Please pay attention to the following safety advice in order to avoid danger and Proper usage damage to people and property. The RESOL DL2 Datalogger is connected to RESOL controllers via the VBus ® • Danger of electric shock: Do not use the device if it is visibly damaged.
  • Page 3 Data security Description of symbols Change and note down the remote access password and keep it in a suitable place. Warnings are indicated with a warning symbol! We recommend regular backups of the data stored on the device via SD card. Signal words describe the danger that may occur, when it is not avoided.

  • Page 4: Table Of Contents

    Contents Overview ....................5 Basic configuration ................14 Finding the DL2 Datalogger by means of the DeviceDiscoveryTool ..... 14 Included ....................6 Changing the Web interface language ..............14 Installation ................... 6 Changing the Live data screen language ............... 14 Wall mounting ......................7 Changing the user password ...................

  • Page 5: Overview

    The DL2 Datalogger is the interface between a RESOL controller and the Internet • Remote access to the system via the VBus.net visualisation portal and additionally permits logging of system data. The DL2 enables the access to the • Comfortable system parameterisation via the RESOL RPT Parame- system data via www.VBus.net.

  • Page 6: Included

      Do not use the device if it is visibly damaged! The DL2 Datalogger comes with the mains adapter and the VBus cable pre-con- ® If one of the items mentioned below is missing or defective, please contact your nected.

  • Page 7: Wall Mounting

    Drill 2 holes (Ø 6 mm, centres 113 mm) and insert the wall plugs. er  or a PC  using the network cable (included with the DL2, ). Fasten the base part of the housing by means of the enclosed screws (4 x 40 mm)

  • Page 8: Vbus ® / Data Communication

    Positions of the operating controls and connections LAN Connection The DL2 Datalogger can be connected to a computer or a router by using a net- work cable (CAT5e, RJ45). Î Connect the network cable included to the network adapter of the computer or the router.

  • Page 9: Operating Control Led

    • The memory capacity of this segment is fully occupied. flashing • The memory capacity of this segment is partly occupied. • VBus ® connection okay. The operating control LED  indicates the operating status of the DL2 Datalogger by issuing flashing signals. Reset button LED flashing codes Colour Permanent Flashing Green •...

  • Page 10: Sd Memory Card Slot

    80 and 1194 / 1195. Power supply connection In order to access a DL2 Datalogger delivered with the firmware version 2.0.0 or Power supply is carried out via a pre-connected mains adapter. The connection higher via VBus.net, proceed as follows: terminals are located inside the housing of the DL2 Datalogger.

  • Page 11: Accessing The Dl2 Datalogger With The Rpt Parameterisation Tool Via Vbus.net

    Enter the password into the Password field. Click on Connect. Web interface The Web interface is integrated in the DL2 Datalogger and can be run on an Inter- net browser. The Web interface has the following functions: • Display the status of the DL2 Datalogger.

  • Page 12: Menu Overview

    Enter the password in the Password input field. Users Change the user password Click the Login button. The message Login successful! appears. About General Order DL2 Datalogger open source software Powered by Display of the open source applications and libraries used History Display of firmware updates Links...

  • Page 13: Data

    Click the Erase button. Displaying data communication The message Data erased successfully! appears. In order to display statistics about the data exchange between the DL2 Datalogger and the controllers connected, proceed as follows: Displaying firmware versions Î In the main menu Status, select the submenu General...

  • Page 14: Displaying The Remote Access

    Click the DL2 Datalogger to mark it. In order to carry out the basic configuration, proceed as follows: Click Open. Find the DL2 Datalogger by means of the DeviceDiscoveryTool. A new window opens. Change the Web interface language. Enter user name and password.

  • Page 15: Changing The User Password

    • Dynamic (recommended): Date and time information are automatically syn- chronised between the DL2 Datalogger and the NTP server. See chap. 10 Firmware update with SD card, page 23. • Static: The user manually assigns date and time information to the DL2 Data- logger.

  • Page 16: Carrying Out A Vbus Specification Update

    Carrying out a VBus specification update In order to configure firmware updates, proceed as follows: ® In the main menu Device Config, select the submenu General. In order to make sure that the controller connected can be recognised and read On the Firmware update tab, in the Automatic update query enabled? out to its full functional extent, VBus ®...

  • Page 17: Configuring The Remote Access

    The remote access password is required whenever a controller connected to the DL2 Datalogger is to be accessed via the RESOL RPT Parameterisation Tool. Note For older controller models the RESOL ServiceCenter Software is avail-...

  • Page 18: Advanced Configuration

    • Carry out port routing in the router. Assigning a static router address In order to access the router and the DL2 connected over the Internet, a static address has to be assigned to the router. There are 2 different ways to assign a static Internet address to the router: •...

  • Page 19: 9.2 Log Interval Configuration

    30 months 24 months 18 months In this example (see table below), 3 DL2 Dataloggers are assigned 1 Web interface Log mode configuration port and 1 RESOL ServiceCenter software port each. The Log mode determines how the DL2 Datalogger behaves when its internal See chap.

  • Page 20: 9.4 Network Configuration

    The menu item IP Recovery can be used to automatically retrieve a new IP ad- • The FTP access to the DL2 Datalogger must be enabled. dress for the DL2 in the case that the previous one is lost. In order to configure the See chap. 12 FTP access configuration, page 23.
  • Page 21 The Export designer document to DL2 window opens. the font etc. can be changed. 14. Enter the IP address of the DL2 Datalogger into the DL2 host name field. Note 15. Enter the user name into the DL2 user name field.

  • Page 22: Filter Configuration

    Erase data menu! In the Filter Number select the Filter slot. The public access configuration determines which DL2 Datalogger menus unregis- Enter the desired filter name into the Filter Name field. tered users may access.

  • Page 23: Firmware Update With Sd Card

    In order to copy logged data onto a computer, proceed as follows: Remove the SD card from the PC and insert it into the SD card slot of the DL2. In the main menu Data, select the submenu Download.

  • Page 24: Ssh Configuration

    SSH configuration Eliminating errors The SSH configuration can be used for accessing the operating system of the DL2 Problems with the direct connection to a gigabit network device Datalogger. Problem Solution ATTENTION! Damage through incorrect configuration! When a device is connected directly to Note...
  • Page 25 Î Check if the network cable is properly connected at both ends! Î Check if the firewall software of the computer inhibits the connection to the DL2 Datalogger. Î Switch off the firewall software and use the DeviceDiscoveryTool to find the DL2 Datalogger.

  • Page 26: Ordering Software

    Open Source applications and -libraries can be ordered. Please send your order to: File format Description RESOL – Elektronische Regelungen GmbH Text (tab-separated, Windows) • Text file, optimised for being processed under Heiskampstraße 10 Windows. 45527 Hattingen •...

  • Page 27: Unit Conversion Table

    16.2 Unit conversion table Accessories Unit MBTU MMBTU 1 Wh 3.412128 0.003412 0.000003 1KWh 3412.128 3.412128 0.003412 MicroSD card incl. adapter 1MWh 3412128 3412.128 3.412128 Art. no.: 112 121 86 Unit g CO2_OIL kg CO2_OIL t CO2_OIL Spare parts 1 Wh 0.568 0.000568 5,68 * 10...
  • Page 28 This mounting- and operation manual including all parts is copyrighted. Another some examples. They can only be used at your own risk. No liability is assumed for use outside the copyright requires the approval of RESOL – Elektronische Re- incorrect, incomplete or false information and / or the resulting damages.
