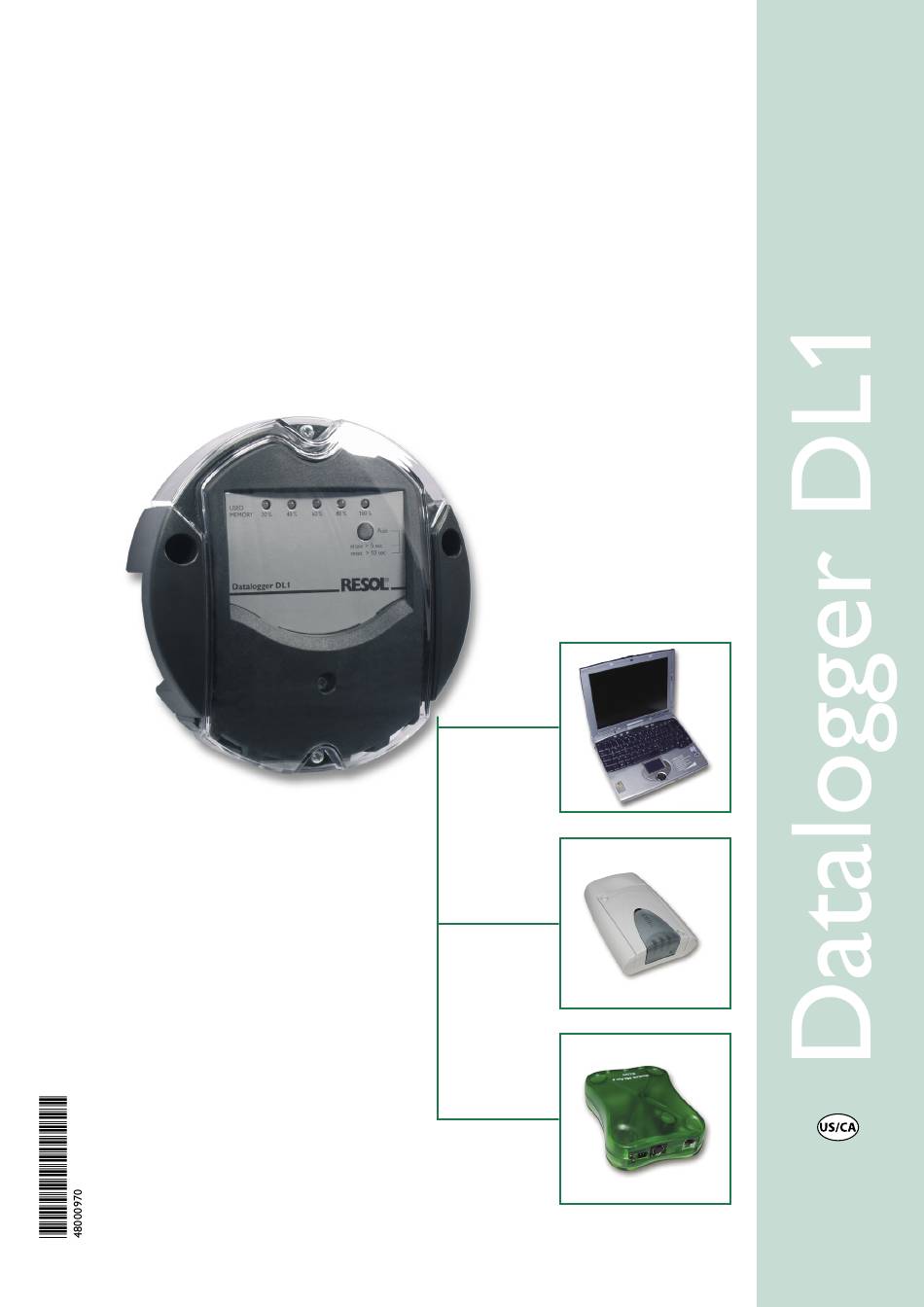

RESOL Datalogger DL1
Mounting
Connection
Operation
Fault localization
Manual
Thank you for buying this RESOL data logger.
Please read this manual carefully to get the best performance from this unit.
www.resol.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Resol DL1

Summary of Contents for Resol DL1

  • Page 1 RESOL Datalogger DL1 Mounting Connection Operation Fault localization Manual Thank you for buying this RESOL data logger. Please read this manual carefully to get the best performance from this unit. www.resol.de...

  • Page 2: Table Of Contents

    To connect the data logger to a computer the operation system Windows ® 2000 / XP or higher is required. Scope of supply: • Datalogger DL1, ready for connection with power supply and RESOL VBus ® -cable • Software RESOL ServiceCenter light •...

  • Page 3: Technical Data And Function Survey

    The data recorded in that RESOL controllers. RS232 for modem way are analised, processed and filed by RESOL.The user can recall temperature connection or direct connection to patterns, fault and balance reports, e. g. by a password-secured Internet access.

  • Page 4: Installation

    1. Connect the data line (RESOL VBus , pos. 3) to the ® RESOL controller (pos. 4). If necessary, prolong the line by enclosed luster terminal and a standard 2-wire (twisted) line. 2. Put the power plug into the socket.

  • Page 5: Operation

    Datalogger DL1 2. Operation The data logger can be completely configurated, read-out and erased by the respective software RESOL ServiceCenter light or the integrated web interface.The datalogger is addi- Fill level tionally be equipped with a manual erasure and reset key. By...

  • Page 6: Connection Of The Datalogger

    • for local (direct-) connection via null modem line. 2.Configuration of the datalogger via web browser. 3.Dial-up into the datalogger 4.Data inquiry by RESOL ServiceCenter Software. Connection for operation by dial-up modem The procedure is explained exemplary for set-up under operating system Windows ®...
  • Page 7 Datalogger DL1 Choose “Set up my connection manually“. Choose „Connect using a dial-up modem“. Feed the identification for this connection.
  • Page 8 Datalogger DL1 Feed the phone number of the data logger. Feed access data (for factory settings leave the fields blank). Deactivate „Make this the default Internet connection“. Finally, complete the “New Connection Wizard“. On de- mand, activate „Add a shortcut to this connection to my desktop“.
  • Page 9 Datalogger DL1 Choose register card “Security“, activate “typical (recommended setting)“. Choose „Allow unsecured password“. Choose register card “Networking“, select “PPP:Windows 95/98/NT 4/2000, Internet“ and press “Settings“. Deactivate “Enable LCP extensions“ and “Enable software compression“ and confirm by pressing “OK“.

  • Page 10: Connection For Direct Connection

    Datalogger DL1 Connection for direct connection to a PC The procedure is explained exemplary for set-up under the operating system Windows ® call under start / All Programs / Accessories / Communica- tions / „New Connection Wizard“. Choose “Set up an advanced connection“.
  • Page 11 Datalogger DL1 Choose “Guest“. Feed name for this connection. Choose the serial device the datalogger is connected to. 11 |...
  • Page 12 Datalogger DL1 Feed access data (for factory setting leave the fields blank). Deactivate “Make this the default Internet connection“. Complete the “New ConnectionWizard“. On demand, acti- vate “Add a shortcut to this connection to my desktop“. Call „Network Connections“ under start / All Programs / Accessories / Communications.
  • Page 13 Datalogger DL1 Choose register card “General“. Choose “Configure...“. Set “Maximum speed (bps)“ to 115200, deactivate “Enable hardware flow control“, “Enable modem error control“ and “Enable modem compression“ and confirm with “OK“. Choose register card „Security“, activate „Typical (recommended settings)“, choose „Allow unsecure password“.

  • Page 14: Dial-Up Into The Data Logger

    Datalogger DL1 Deactivte “Enable LCP extensions“ and “Enable software compression“ and confirm with “OK“. Dial-up into datalogger Call „Network Connections“ under start / All Program / Accessories / Communications. Double click to newly set-up connection. Optionally, the password and username can be saved for different users.

  • Page 15: Configuration Of The Datalogger

    Datalogger DL1 Control access data and click to „Dial“. After succesful dial-up, the connection symbol appears in the taskbar beside the time. Configuration of the datalogger by web browser Feed the address „192.168.192.1“ into the address line of the web browser when connection is established.

  • Page 16: Data Inquiry

    Datalogger DL1 Data inquiry In general, we recommend to use the RESOL Service- Center Software for data inquiry and evaluation. In the following, a simplified communcation by integrated web interface is explained. Status inquiry Click to menu „status“ „Capacity“ = total memory size „In use“...

  • Page 17: Data Erasure

    Datalogger DL1 Choose „save file“. Click to „OK“. Choose destination for the file to be saved. Click to „save“. wait for termination of the process or stop by „break“ or cut by „cancel“ Erase data Click to menu „Erase“. Click to „OK“.
  • Page 18 Datalogger DL1 Notes | 18...
  • Page 19 Datalogger DL1 Notes 19 |...
  • Page 20 Datalogger DL1 RESOL - Elektronische Regelungen GmbH Heiskampstraße 10 D - 45527 Hattingen Tel.: +49 (0) 23 24 / 96 48 - 0 Fax: +49 (0) 23 24 / 96 48 - 55 www.resol.de info@resol.de Your distributor: Notes: The design and specifications can be changed without prior notice.
