The XFCAM Camera Rear Cover Function
The
XFCAM1080PHB/PHD
sensor position, the image can be focused automatically for the stereo or biological microscope. However, this
autofocus principle will destruct the microscope's imaging conjugate principle and we think only a minor focus
adjustment can be made to keep the image with high quality.
But for the online basic observation, the
efficiency and eliminate manual focus operations.
XFCAM1080PHB/PHD Auto Focus HDMI C-mount CMOS Camera

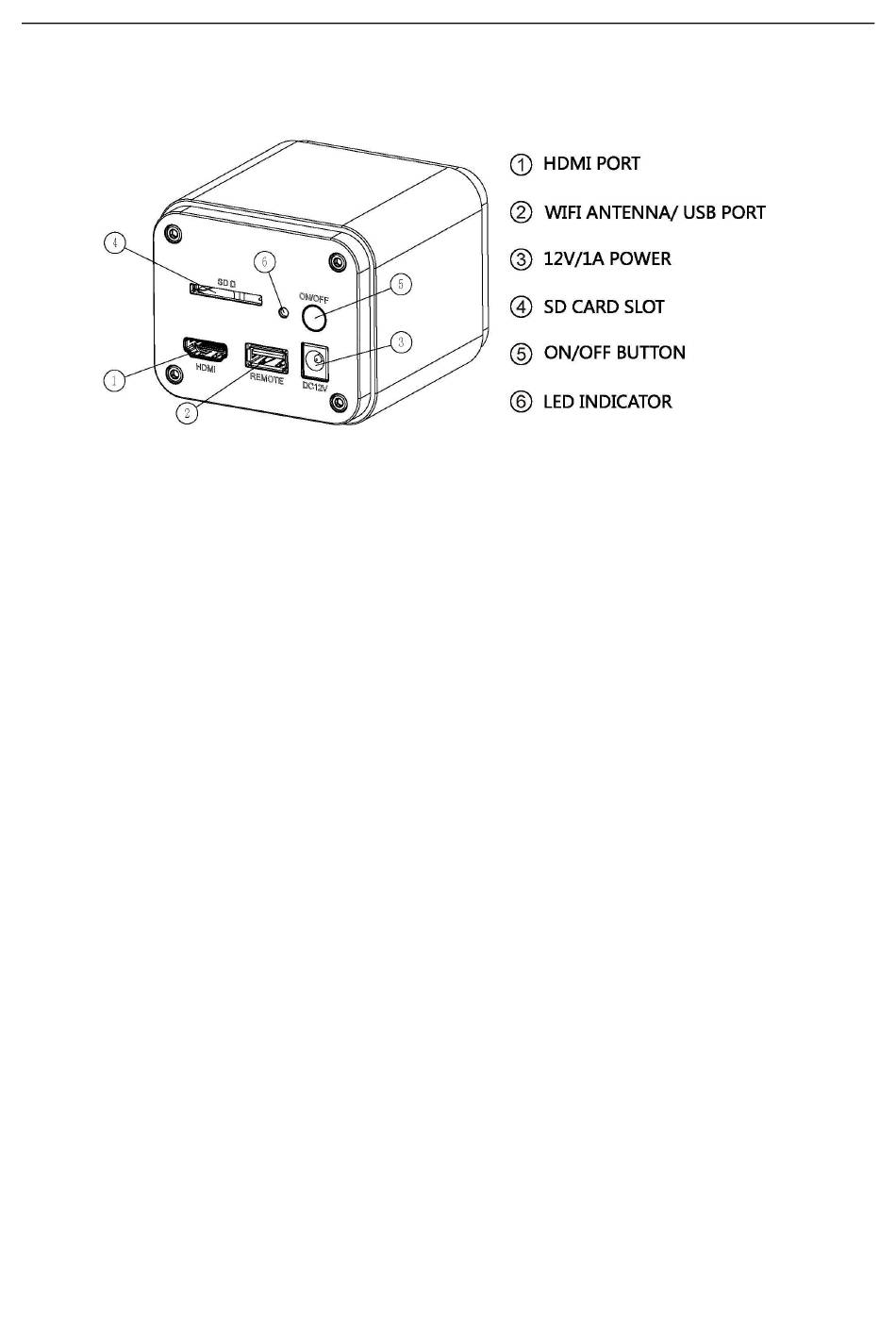

Figure 7 The Layout of XFCAM1080PHB/PHD Camera Rear Cover
is a HDMI camera with auto focus function. Through the precise control of the
camera can greatly increase the working
XFCAM1080PHB/PHD
1 / 10
Advertisement
Summary of Contents for kruss MKTV5
- Page 1 XFCAM1080PHB/PHD Auto Focus HDMI C-mount CMOS Camera The XFCAM Camera Rear Cover Function Figure 7 The Layout of XFCAM1080PHB/PHD Camera Rear Cover is a HDMI camera with auto focus function. Through the precise control of the XFCAM1080PHB/PHD sensor position, the image can be focused automatically for the stereo or biological microscope. However, this autofocus principle will destruct the microscope’s imaging conjugate principle and we think only a minor focus adjustment can be made to keep the image with high quality.
-
Page 2: Hdmi Mode
XFCAM1080PHB/PHD Auto Focus HDMI C-mount CMOS Camera Quick Instructions for XFCAM1080PHB/PHD camera Before starting the camera please connect the standard C-mount camera to camera XFCAM1080PHB/PHD adapter and connect it to the microscope’s 3 tube which will relay microscope object’s middle image to the camera sensor. - Page 3 XFCAM1080PHB/PHD Auto Focus HDMI C-mount CMOS Camera Brief Introduction of XFCAM UI and Functions UI shown in Fig. 8 includes the on the left side of the video window, the XFCAM Camera Control Panel on the upper side of the video window, the on the bottom of Measurement Toolbar Synthesis Camera Control Toolbar...
- Page 4 XFCAM1080PHB/PHD Auto Focus HDMI C-mount CMOS Camera 2.3.1 The Camera Control Panel on the Left Side of the Video Window Camera Control Panel Function Function Description Capture or image from the current video window Snap Snap Record video from the current video window Record When is checked, the system will automatically...
- Page 5 XFCAM1080PHB/PHD Auto Focus HDMI C-mount CMOS Camera 2.3.2 Icons and Functions of the Synthesis Camera Control Toolbar at the Bottom of the Video Window Icon Function Icon Function the Video Window the Video Window Zoom In Zoom Out Horizontal Flip Vertical Flip Display Video Freeze...
- Page 6 XFCAM1080PHB/PHD Auto Focus HDMI C-mount CMOS Camera Used for defining width of the lines in measurement and calibration; Calibration Line Width Used for defining color of the lines in measurement and calibration; Color Type: Used for defining shape of the endpoints of lines in measurement and EndPoint calibration: Null means no endpoints, rectangle means rectangle type of endpoints.
- Page 7 XFCAM1080PHB/PHD Auto Focus HDMI C-mount CMOS Camera Figure 13 Comprehensive Setting of Video Encode Setting Page ： Save recorded videos in coded format; MJPEG MJPEG ： Save recorded videos in coded format; H264 H264 Figure 14 Comprehensive Setting of SD Card Setting Page : The maximum file can store is of 4G Bytes;...
- Page 8 XFCAM1080PHB/PHD Auto Focus HDMI C-mount CMOS Camera Set language of the whole software into Thailand; Thailand 2.3.3 The Measurement Toolbar on the Upper Side of the Video Window will pop up when moving mouse cursor to any place near the upper side of the video Measurement Toolbar window.
- Page 9 XFCAM1080PHB/PHD Auto Focus HDMI C-mount CMOS Camera Polygon Curve Make Calibration to determine the corresponding relation between magnification and resolution, this will establish the corresponding relationship between measurement unit and the sensor pixel size. Calibration needs to be done with the help of a micrometer. For detailed steps of carrying out calibration please refer to ToupView help manual.
- Page 10 XFCAM1080PHB/PHD Auto Focus HDMI C-mount CMOS Camera 2.3.4 Auto Focus Control Panel on the Right Side of the Video Window With button checked, the system will start autofocus according to Auto Focus Auto Focus status of the specimen till it stays in focus; With checked, users should reset position of the camera Manual Focus...
