Summary of Contents for Gembird eMic-BT
- Page 1 Bluetooth headset Bluetooth headset USER MANUAL...
- Page 2 We spared no efforts to make sure that the information in this manual is correct and complete. However no liability is accepted for any errors or omissions. Gembird Electronics reserves the right to change the specifications of the hardware and software described in this manual without prior notice.
-
Page 3: Table Of Contents
Bluetooth headset Bluetooth headset USER MANUAL Contents 1 Package contents 2 Features 3 Technical specification 4 System requirements 5 Product overview 6 Quick installation guide 7 eMic BT Headset controls and indications, general functions GEMBIRD EUROPE B.V. http://www.gembird.eu... -
Page 4: Package Contents
User manual eMic software CD 2. Features eMic-BT Bluetooth v.1.2 stereo headset, Class II for 10 meters, with eMic™ function Provides eMic™ one-touch quick action buttons: the easiest way to record and send voice message by E-mail ... -
Page 5: Technical Specification
3. Technical specification Standard: Bluetooth v.1.2 Chipset: BlueCore3 Multimedia single chip Compatibility: General headset and Bluetooth cell phones Radio performance: Class 2 Carrier frequency: 2.40-2.48 GHz Sensitivity: <= – 81 dBm Spread spectrum: 10 meters ... -
Page 6: System Requirements
Pentium IV compatible PC or higher OS Windows® XP/Vista Note: For using eMic-BT computer must be equipped with Bluetooth dongle and the drivers should support A2DP, AVRCP, Headset profiles. Mobile phone must support Hands free profile and can... -

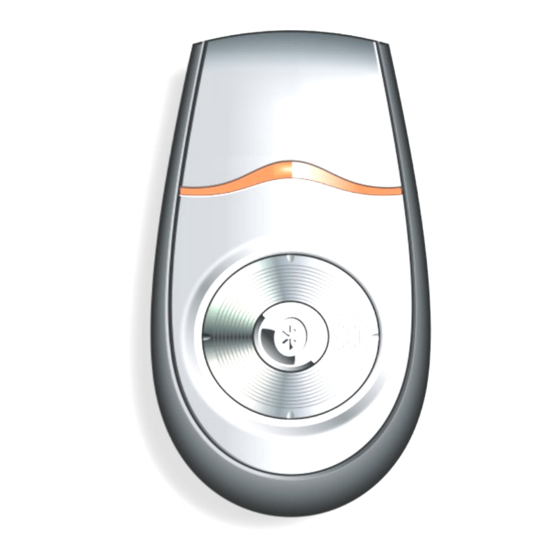

Page 7: Product Overview
5. Product overview... - Page 8 Bluetooth headset Bluetooth headset USER MANUAL Mute To mute the microphone press and hold this button. GEMBIRD EUROPE B.V. http://www.gembird.eu...
-
Page 9: Quick Installation Guide
4. Make sure that IVT BlueSoleil software is launched already, otherwise the following error message will appear: IVT BlueSoleil Software is not running. It is required to start BlueSoleil before running eMic BT. GEMBIRD EUROPE B.V. http://www.gembird.eu... -
Page 10: Emic Bt Headset Controls And Indications, General Functions
Turn-on : quickly flashes 3 times Pairing mode : orange LED and red LED flashes Charging : always on Complete charging: becomes off Red LED Low voltage : quickly flashes every 5 second FWD or BWD quick double press: flashes once GEMBIRD EUROPE B.V. http://www.gembird.eu... - Page 11 Pause / Play Volume+ short press Volume up Volume+ long press Volume up constantly Volume- short press Volume down Volume- long press Volume down constantly FWD quick double press Forward Track BWD quick double press Backward Track GEMBIRD EUROPE B.V. http://www.gembird.eu...
- Page 12 Volume up short press Last Reject Volume+ Transfer number incoming long press call Redial call Volume- Volume Volume Volume Volume short press down down down down Reject Volume- Voice Transfer incoming long press dial call call GEMBIRD EUROPE B.V. http://www.gembird.eu...
- Page 13 Red LED is on. It goes off when the battery is charged. When you plug in the power charger, eMic-BT is reset and comes to Off state. You can also reset device in this way. It is possible to turn eMic-BT on and use it during the battery charging.
- Page 14 Ending a call End the call by pressing Main function button shortly. Dialing Normally you use mobile phone to dial, and then use eMic-BT as a handsfree device. Use the last number redial function by pressing Volume- button for 2 seconds, while device is in standby mode.
- Page 15 Answering incoming call during listening stereo music When there is an incoming call while eMic-BT is in stereo mode, eMic-BT will automatically mute the sound in stereo mode and send out the ring tone.
- Page 16 Monitor window. See the picture below: Note: In the software main window (see the picture above) F1 button (see drawing in the chapter 5) corresponds to the button “Letter” and the button F2 – corresponds to the button “Tape”. GEMBIRD EUROPE B.V. http://www.gembird.eu...
- Page 17 USER MANUAL Using eMic and Stereo mode eMic Monitor software works with eMic-BT in ”Headset” mode (with low quality of sound, intended for speech only). If you prefer to listen to the music the ”Stereo” mode is more useful, since the sound quality is much better.
