Technical Data 25-12947-A
SQG3-23 Base Sounder VAD
14
0359-CPR-00438
Compliance EN54-3; EN54-23:2010
Table 1. Specification
Feature
Supply Voltage (Conventional) 18~35 Vdc
Cable Size/type
Current (High Volume)
Current (Low Volume)
Sound Output (High Volume)
Sound Output (Low Volume)

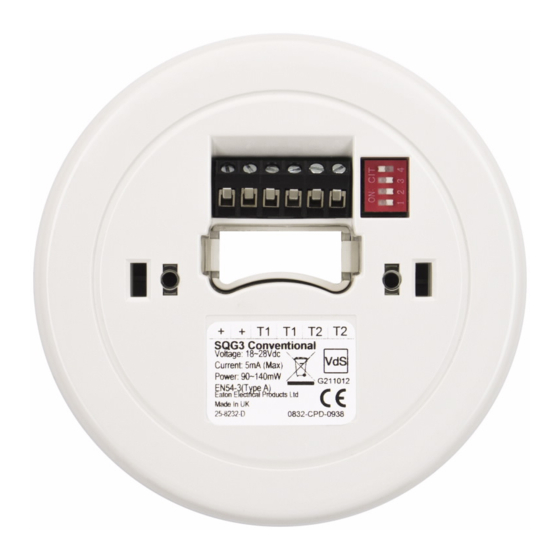

1. Mounting Base
50
60
70
80
3. Connection Details
OUT IN
+VE -VE
SCREEN
ZONE OUT
www.acornfiresecurity.com
Value
0.5~2.5mm
FIRETUF, FP200 or MICC
/
11mA
8.7mA
90 +/- 3dB(A)
80 +/- 3dB(A)
(i) Knock-out the required
fixing holes.
(ii) Fix to mounting surface
using two suitable screws.
(iii) Please ensure all cable
entry points are sealed
appropriately.
If the base deforms on an
uneven surface, loosen the
screws or move to a flatter
position.
+VE -VE
ZONE IN
www.acornfiresecurity.com
September 2014
Feature
Operating Temperature
Material
Environmental Category
Tones
Flash Rate
Flash On Period
2. Sounder/ Beacon Assembly
Screen must be continuous
along entire length of loop.
Value
-10 to +55ºC (95%RH)
ABS FR Plastic
Type A= IP21C
3, See section 4.
0.5Hz (
Not applicable to FXN5023S
60ms
)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Fulleon SQG3-23
Summary of Contents for Fulleon SQG3-23
- Page 1 Technical Data 25-12947-A September 2014 SQG3-23 Base Sounder VAD 0359-CPR-00438 Compliance EN54-3; EN54-23:2010 Table 1. Specification Feature Value Feature Value Supply Voltage (Conventional) 18~35 Vdc Operating Temperature -10 to +55ºC (95%RH) Cable Size/type 0.5~2.5mm Material ABS FR Plastic FIRETUF, FP200 or MICC...
- Page 2 Technical Data 25-12947-A SQG3-23 September 2014 4. Switch Position Meaning 1, Sounder On/Off (AV version only) 2, Volume Hi (Off)/Low (On) Continuous: 3=On, 4=On (910Hz) 3, Tones Bell: 3=On, 4=Off (1440 Hz) 4, Tones Alternating: 3=Off, 4=On (610 / 910 Hz)
