Fulleon ASSERTA Installation Manual

ASSERTA
Specification Specification
Sounder
230Vac 110dB(A)
Operation
Operating Voltage Range 230Vac 50/60Hz
Sound Output @ 1m See table overleaf
Current Consumption
Tones 42 see table overleaf
Operating Temperature
Construction ABS /PC FR plastic
Termination 0.28~2.5mm² cable
Ingress Protection
Fuse 80mA Antisurge, 20mm
Beacon
Operating Voltage Range 230Vac 50/60Hz
Current Consumption
Rating
Operating Temperature
Construction ABS /PC FR plastic
Termination 0.28~2.5mm² cable
Ingress Protection
Fuse 80mA Antisurge, 20mm
Dimensions
155mm
1. Installation
Knockout or drill required cable gland holes, and fix required
cable glands.
Hole positions for additional cable entries.
Knock outs for cable entries.
2. Fixing Details
Fix base to wall in 4 positions.
148mm

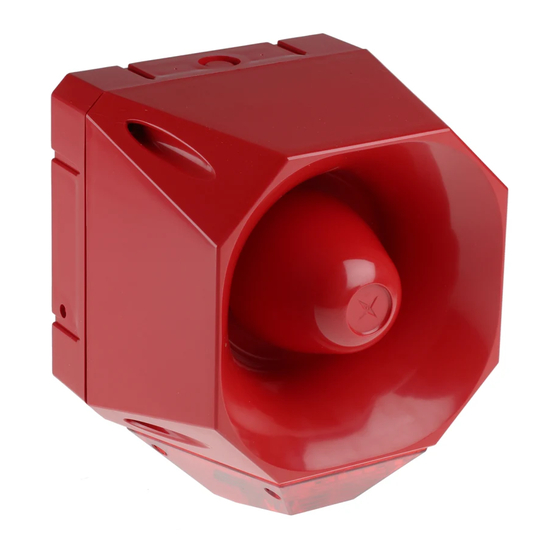

Industrial Sounder/Beacon (230Vac)
230Vac 120dB(A)
Continuous Continuous
230Vac 50/60Hz
See table overleaf
39mA@230Vac 65mA@230Vac
42 see table overleaf
-25°C to +75°C -25°C to +75°C
ABS /PC FR plastic
0.28~2.5mm² cable
IP66
80mA Antisurge, 20mm
230Vac
15mA
2 Joules
-25°C to +75°C
IP66
168mm
(Top & Bottom)
NOTE: Ensure that the IP integrity
is maintained during gland
fitting.Take care not to disturb the
electronics while drilling.Remove
PCB if required)
0°
90°
Mounting bracket.
(Optional extra)
3. Connection
IP66
4. Sounder Settings
1. Volume Control
2. Switch 1 (Time out setting)
1 2 3
OPEN
0 = Open
1 = Closed
Switch 1 bit 4 is to select voice (0)/ no voice (1). (Where fitted)
3. Switch 2 (Stage1 tone selection)
1 2 3 4 5
OPEN
4. Switch 3 (Stage 2 tone selection)
1 2 3
OPEN
5. Sounder Assembly
1. Plug the 5 way ribbon cable into the base header.
2. Plug the 2 way ribbon cable into the base header.
3. Ensure that the top indicator on the base is aligned with the top indicator on
the sounder, and push the sounder onto the base.
4. Secure the sounder to the base using the bolts provided.
WARNING : On some tones the output level can exceed 120dB(A) @ 1m.
NOTE : Polar dispersion information available in the technical manual. (Ref:M03-003)
Ensure that the mains switch is set to 230V.
}
N
N
Beacon
L
L
}
N
N
Sounder
L
L
Stage 3
Stage 2
Stage 1
COM
NOTE: A readily accessible
disconnect device must be
incorporated in the mains
supply wiring to this unit.
Turn dial clockwise to increase volume.
(Nominal 20dB range)
4
BIT 123X Minutes BIT 123X
111X 5 011X
110X 10 010X
101X 15 001X
100X 20 000X
6
See table overleaf.
4 5 6
See table overleaf.
(Stage 3 Tone is dependent on the setting of switch 2)
Ensure that guide
ribs are aligned.
(Top & Bottom)
: Consult the relevant or appropriate health and safety regulations for guidelines.
Tones Table overleaf.
: Do not remove cover, refer servicing to qualified personnel.
: High voltage present within this equipment.
1
2
3
4
Minutes
25
30
40
∞
25-5644 Iss A
