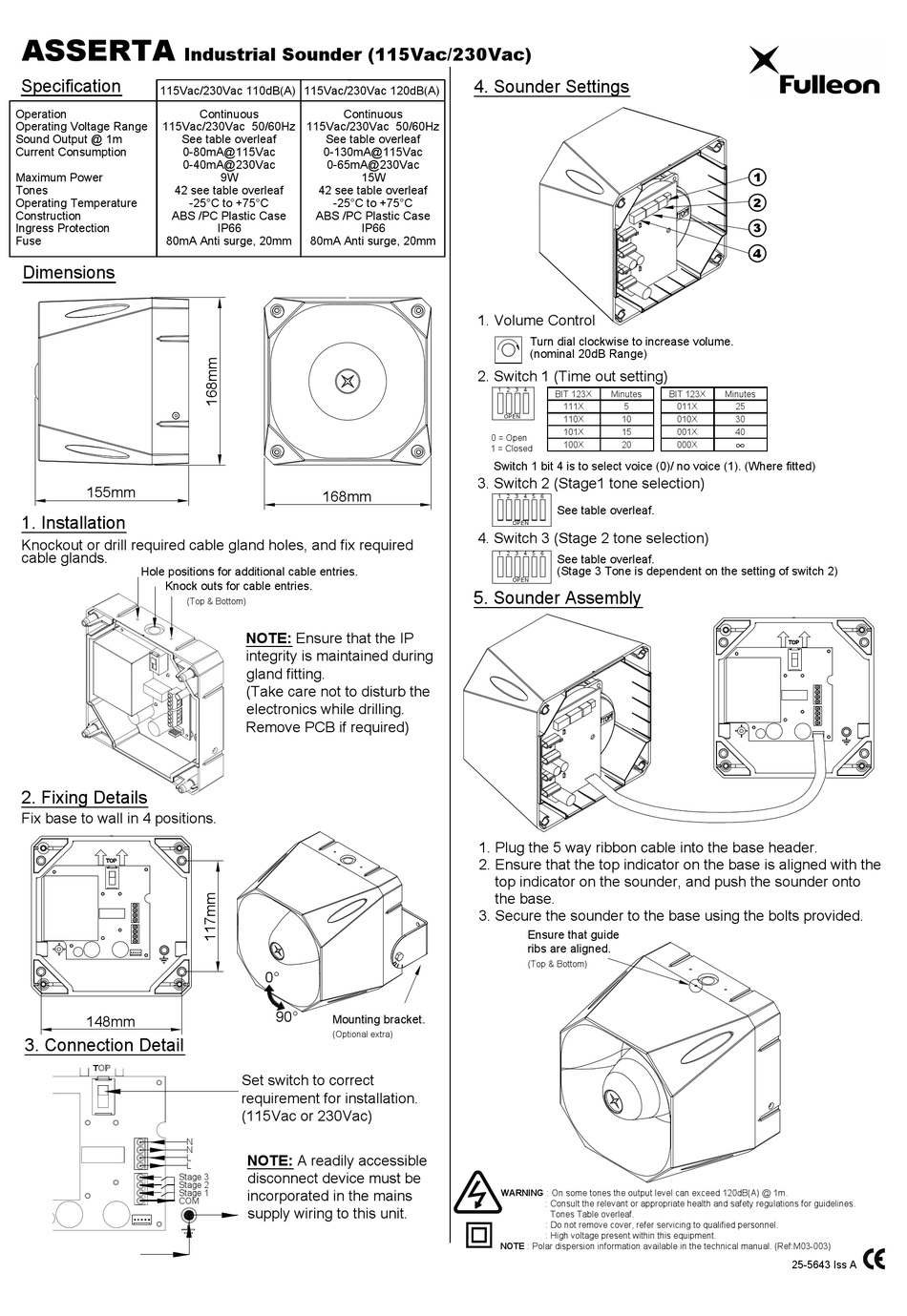

Fulleon ASSERTA Quick Start Manual

ASSERTA
Industrial Sounder (115Vac/230Vac)

Specification

115Vac/230Vac 110dB(A)
Operation

Operating Voltage Range

115Vac/230Vac 50/60Hz

Sound Output @ 1m

See table overleaf

Current Consumption

0-80mA@115Vac
0-40mA@230Vac
Maximum Power

Tones

42 see table overleaf
Operating Temperature
Construction ABS /PC Plastic Case
Ingress Protection
Fuse 80mA Anti surge, 20mm

Dimensions

155mm

1. Installation

Knockout or drill required cable gland holes, and fix required
cable glands.
Hole positions for additional cable entries.
Knock outs for cable entries.
(Top & Bottom)

2. Fixing Details

Fix base to wall in 4 positions.
148mm

3. Connection Detail

N
N
L
L
Stage 3
Stage 2
Stage 1
COM
115Vac/230Vac 120dB(A)
Continuous Continuous
115Vac/230Vac 50/60Hz
See table overleaf
0-130mA@115Vac
0-65mA@230Vac
9W
42 see table overleaf
-25°C to +75°C -25°C to +75°C
ABS /PC Plastic Case
IP66
80mA Anti surge, 20mm
168mm
NOTE: Ensure that the IP
integrity is maintained during
gland fitting.
(Take care not to disturb the
electronics while drilling.
Remove PCB if required)
0°
90°
Mounting bracket.
(Optional extra)
Set switch to correct
requirement for installation.
(115Vac or 230Vac)
NOTE: A readily accessible
disconnect device must be
incorporated in the mains
supply wiring to this unit.

4. Sounder Settings

15W
IP66

1. Volume Control

Turn dial clockwise to increase volume.
(nominal 20dB Range)
2. Switch 1 (Time out setting)
1 2 3 4
OPEN
0 = Open
1 = Closed
Switch 1 bit 4 is to select voice (0)/ no voice (1). (Where fitted)
3. Switch 2 (Stage1 tone selection)
1 2 3 4 5
OPEN
4. Switch 3 (Stage 2 tone selection)
1 2 3 4 5 6
OPEN

5. Sounder Assembly

1. Plug the 5 way ribbon cable into the base header.
2. Ensure that the top indicator on the base is aligned with the
top indicator on the sounder, and push the sounder onto
the base.
3. Secure the sounder to the base using the bolts provided.
Ensure that guide
ribs are aligned.
(Top & Bottom)
WARNING : On some tones the output level can exceed 120dB(A) @ 1m.
NOTE : Polar dispersion information available in the technical manual. (Ref:M03-003)
BIT 123X Minutes BIT 123X
111X 5 011X
110X 10 010X
101X 15 001X
100X 20 000X
6
See table overleaf.
See table overleaf.
(Stage 3 Tone is dependent on the setting of switch 2)
: Consult the relevant or appropriate health and safety regulations for guidelines.
Tones Table overleaf.
: Do not remove cover, refer servicing to qualified personnel.
: High voltage present within this equipment.
1
2
3
4
Minutes
25
30
40
∞
25-5643 Iss A
