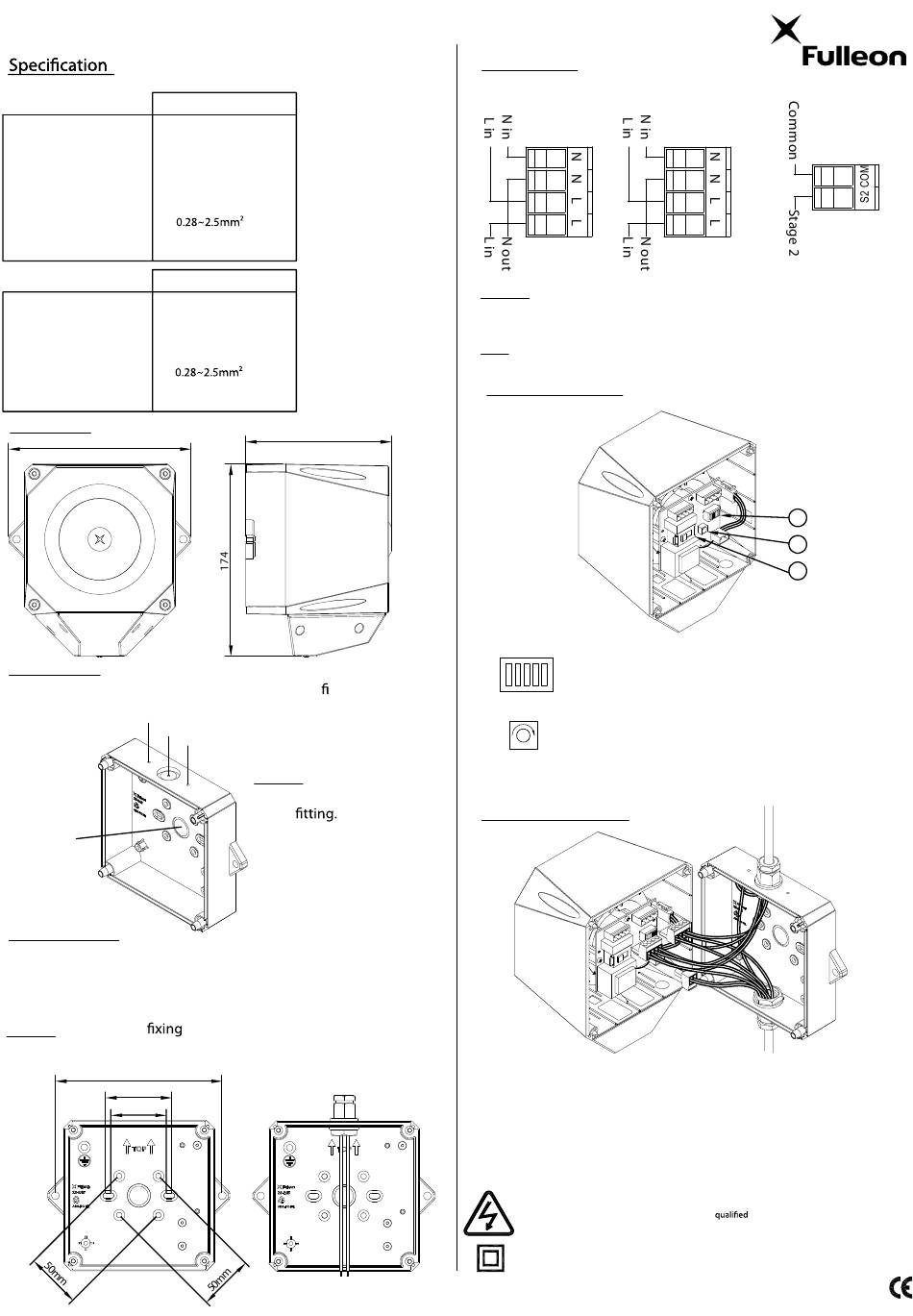

Fulleon ASSERTA Quick Manual

ASSERTA

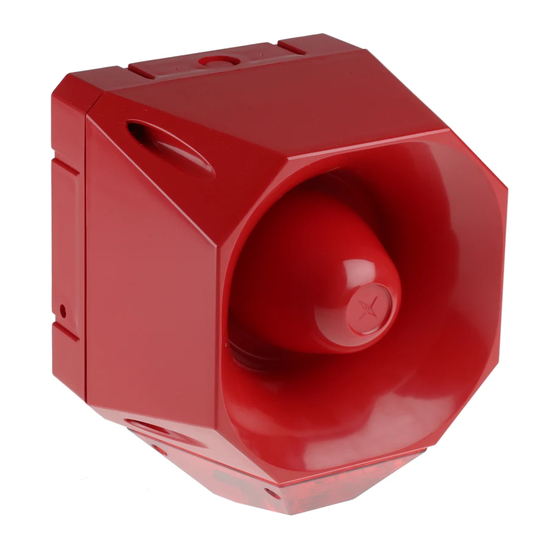

Midi Sounder/Beacon (230VAC)
NOTE: 230VAC are seperate products
Sounder
Operation
Operating Voltage Range
Sound Output @ 1m
Current Consumption
Tones 32 see table overleaf
Operating Temperature
Construction
ABS /PC FR plastic
Termination
Ingress Protection
Fuse 32mA Antisurge, 20mm
Beacon
Operating Voltage Range
Current Consumption
Rating
Operating Temperature
Construction ABS /PC FR plastic
Termination
Ingress Protection
Fuse 315mA Antisurge, 20mm
Dimensions
165
1. Installation
Knockout or drill required cable gland holes, and x required
cable glands.
Hole positions for additional cable entries.
Knock outs for cable entries.
Rear gland
knock out.
2. Fixing Details
Fix base to wall using the two external lugs, or to a suitable
junction box using the positions indicated in the base.
Cut cable to ±130mm. (use the opposite side of the base as a
guide)
NOTE: If the internal
IP integrity is maintained.
151mm
60mm
50mm
230V AC
Continuous
230Vac 50/60Hz
See table overleaf
See table overleaf
-20°C to +70°C
cable
IP66
230V AC
230Vac 50/60Hz
30mA
2.5 Joules
-20°C to +70°C
cable
IP66
132
(Top & Bottom)
NOTE: Ensure that the IP
integrity is maintained during
gland
holes are being used ensure that the
3. Connection
Remove the terminal blocks from the sounder PCB for
cable wiring.
Sounder
NOTE: Stage 2 tone selection is achieved by connecting the
S2 to the common terminal.
DO NOT connect AC mains to these terminals.
NB: A readily accessible disconnect device must be
incorporated in the mains supply wiring to this unit.
4. Sounder Settings
1. Tone Switch
See table overleaf.
1 2 3 4 5
0 = Open
1 = Closed
OPEN
2. Volume Control
Turn dial clockwise to increase volume.
(Nominal 10dB range)
3. Voltage Select Switch
Ensure that the correct mains input voltage is selected.
5. Sounder Assembly
1. Plug the two 4 way terminal blocks into the 4 way headers on
the sounder PCB.
2. Plug the 2 way terminal block into the sounder header on the
PCB.
3. Secure the sounder to the base using the bolts provided.
WARNING : Do not remove cover, refer servicing to
: High voltage present within this equipment.
NOTE : Polar dispersion information available in the technical manual. (Ref:M03-003)
Stage
Beacon
1
2
3
personnel.
25-12384-A
