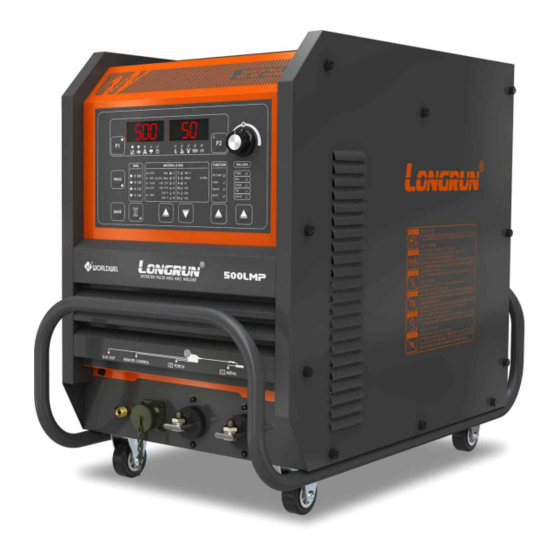

INVERTER PULSE MIG WELDER
OPERATION MANUAL
● Full digital control and user friendly interface
● Digital memory function
● Welding diameter selction
● Saving power consumption by high-tech IGBT
● Ideal to weld stainless steel and aluminum
Model
Input voltage
Output current
Input capacity
Input current
Open circuit voltage
Output Voltage
Duty cycle
Wire diameter
Gas flow
Weight
Dimension (W×D×H)
500LMP
Unit
V
A
KVA
A
V
V
%
mm
Ф0.8、Ф1.0、Ф1.2、Ф1.6
L/min
Kg
mm
www.worldwel.com
500LMP
380V, 3PH, 50-60Hz
25~500
25
46A
80
14~50
60
15~20
54
710×355×575
Advertisement
Related Manuals for Worldwel Longrun 500LMP
Summary of Contents for Worldwel Longrun 500LMP
- Page 1 ● Ideal to weld stainless steel and aluminum Model Unit 500LMP Input voltage 380V, 3PH, 50-60Hz Output current 25~500 Input capacity Input current Open circuit voltage Output Voltage 14~50 Duty cycle Wire diameter Ф0.8、Ф1.0、Ф1.2、Ф1.6 Gas flow L/min 15~20 Weight Dimension (W×D×H) 710×355×575 www.worldwel.com...
- Page 2 General Safe Practices ■ Wear approved safety glasses with side shields under your welding helmet or face shield and at all times in the work area. ■ When working above floor level, use a safety belt to protect yourself from a fall should you get a shock.
- Page 3 ■ INSTALLATION ● The welding machine shall be installed at a place ; ․ free from the inflammables ․ less humidity, dirt and dust ․ protecting from influence of direct sunlight, wind and rain ․ not generated oil vapor and corrosive gas ․...
- Page 4 ■ WIRE TYPE SELECT Process Wire type Diameter（mm） Alloy type Sheild gas Aluminum LF2~LF16, 5005, 5052, Magnesium Alloy 5183, 5356 (8 AlMg 5) L1~L5, Aluminum Φ1.0, Φ1.2, Φ1.6 1060, 1035, 1100, 1200, 100% Ar (9 Al) 1370 Aluminum Silicon Alloy LT1, 4A11, 4043, 4047 (7 AlSi 5) MIG/MAG...
- Page 5 ■ FRONT PANEL...
- Page 6 Volume Adjust various data setting Data Select Button F2 Adjustable Date : Arc Length, Welding voltage, Working condition Data Select Button F1 Adjustable Date : Motor speed, Welding current, Arc power, Arc concentration Program button Use saved data Save button Use to enter setup menu or save data.
- Page 7 value data by turning the volume (1). When modifying P05 and P06, move to the percentage value with the F2 button and you can change the data by the volume (1) ■ Hidden data adjustments / modifiable data items Item Setting range Minimum Reset...
- Page 8 ■ Symptom and solution Code no. Symptoms Cause Solution Communication error 1. Cable failure 1. Check and replace the cable between Main PCB 2. Main PCB failure 2. Replace the Main PCB and Display PCB Wire feeder 1. Cable failure 1.
- Page 9 The date number is especially important when identifying the correct replacement parts. Complete this form, please fax it to our selling agency in your country or us for warranty statement. Worldwel Co., Ltd. 11-101, Songlim-dong, Dong-gu, Incheon-city, Korea TEL : +82-32-876-2114 FAX : +82-32-876-2117...
